Allied Telesis AT-S80 - Manual (Page 289)

AT-S80 Management Software User’s Guide
Section II: Using the Web Browser Interface 289
Creating a Host Table
Use the following procedure to create a Host Table.
1. From the bookmarks on the left side of the page, select SNMP.
The SNMP folder expands.
2. From the SNMP folder, select Host Table.
The Host Table Page is shown in Figure 82.

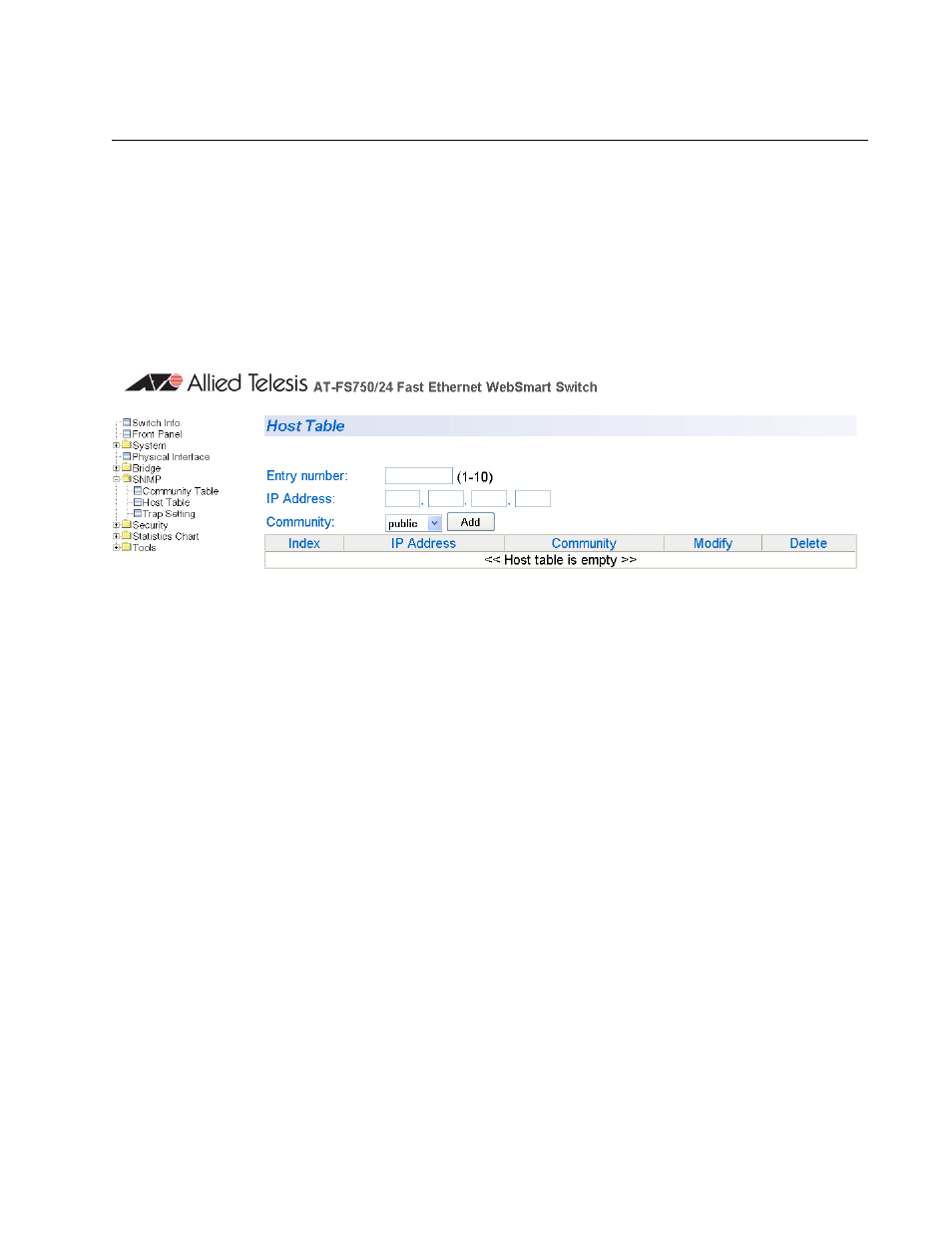

Figure 82. Host Table Page
3. To specify an entry number, type a value between 1 and 10 in the
Entry number field.
4. Enter an IP address for an SNMP community that you previously
defined in the Community Table Page.
The IP address must be in the xxx.xxx.xxx.xxx format.
5. Select a community name from the pull-down menu next to the
Community Name field. Then click Add.
The new host is added to the table.
