Chapter 31: Quality of Service (QoS)
296 Section II: Using the Web Browser Interface
Mapping CoS Priorities to Egress Queues
This procedure explains how to change the default mappings of CoS
priorities to egress priority queues, as shown in Table 2 on page 141. This
is set at the switch level. You cannot set this at the per-port level. This
procedure also enables and disables QoS.
To change the default mappings of CoS priorities to egress priority queues
or to enable or disable QoS, perform the following procedure:
1. From the bookmarks on the left side of the page, click on Bridge.
The Bridge folder expands to include the VLAN folder.
2. From the VLAN folder, select CoS.
The CoS Page is shown in Figure 84.

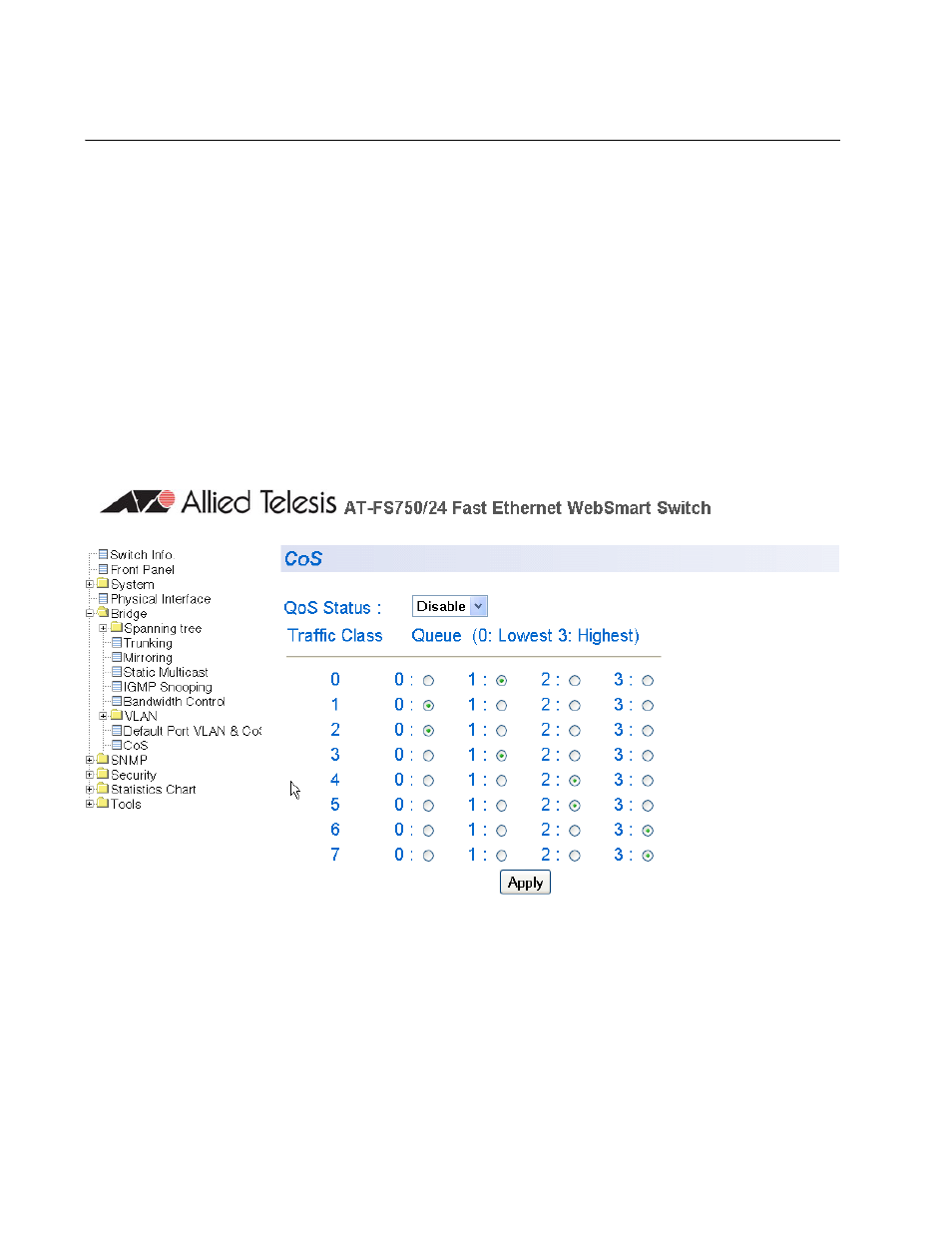

Figure 84. CoS Page
3. To enable or disable QoS, select Enable or Disable from the QoS
Status pull-down menu. The default is Disable.
