HP Storage Mirroring Software - Manual (Page 330)

328 of 739
Note:Automatic failover will not occur until after the initial mirror has completed.
5. Monitor these addresses on the source server—Select the IP address(es) to
monitor for automatic failover.
6. Monitoring interval (seconds)—(Default = 5) Select how often the monitor will
check the source machine availability.
7. Number of missed intervals that trigger failover—(Default = 5) Select how many
monitor replies can be missed before assuming the source machine has failed.

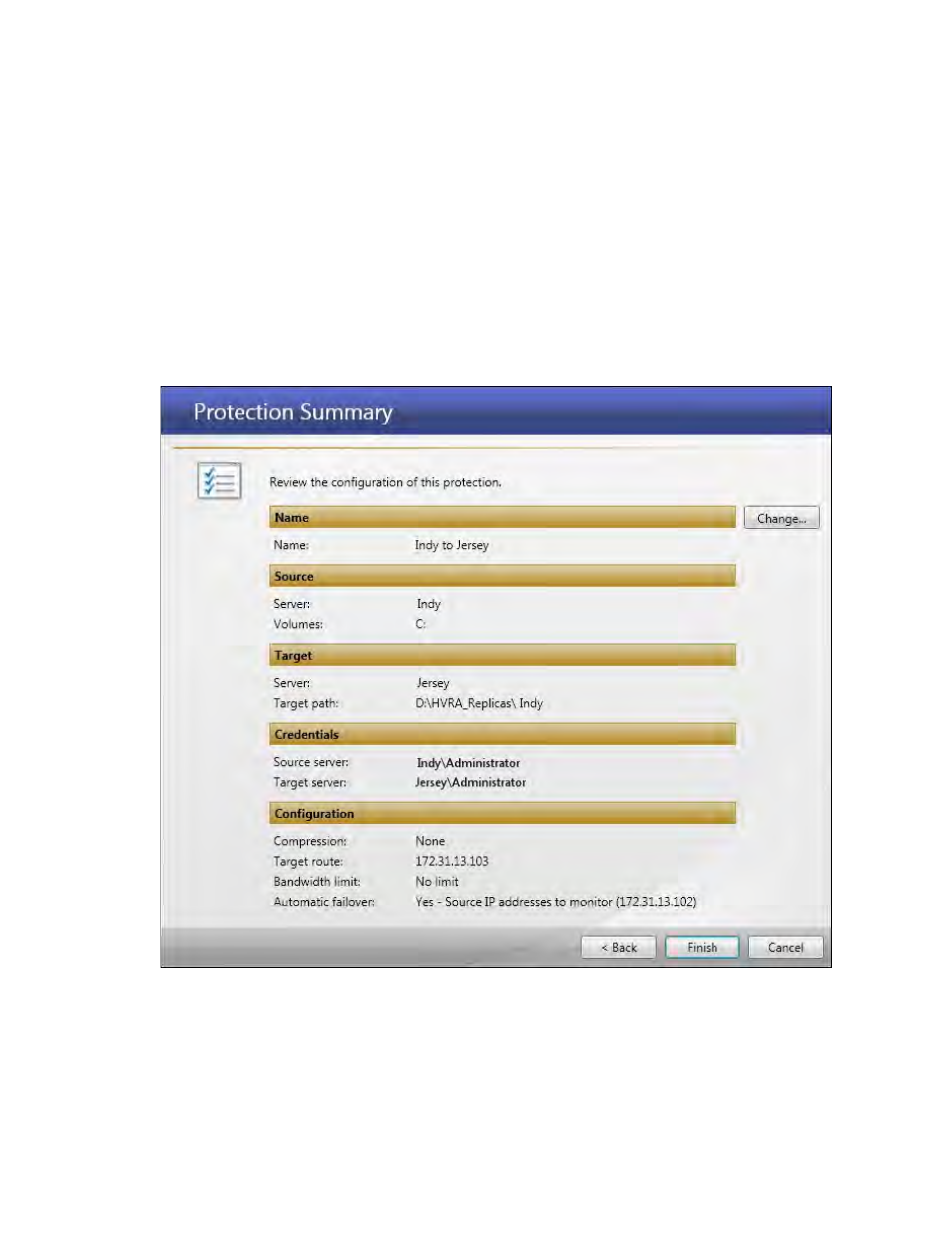

8. When you have finished setting protection options, click Next. The Protection
Summary window will appear.
9. (Optional) If you want to change the name of the protection, click the Change
button. The Change Name window will appear. Enter a new name for the
protection, then click Save.
