Chapter 12. Limit Errors Tab Last 7 Days
12.2 CheckPoint™ User Manual IM8000
Last 7 Days
The widgets that appear for the Last 7 Days report display information for welding performed over the last
seven days. The system displays the total number of welds performed each day and how many of those
welds were within the limits set for the Weld Profile used and how many were outside the limits set for the
profiles they used. The widgets are the same whether you have a single Welding Power Source selected in
the Asset Tree or a Container of power sources.

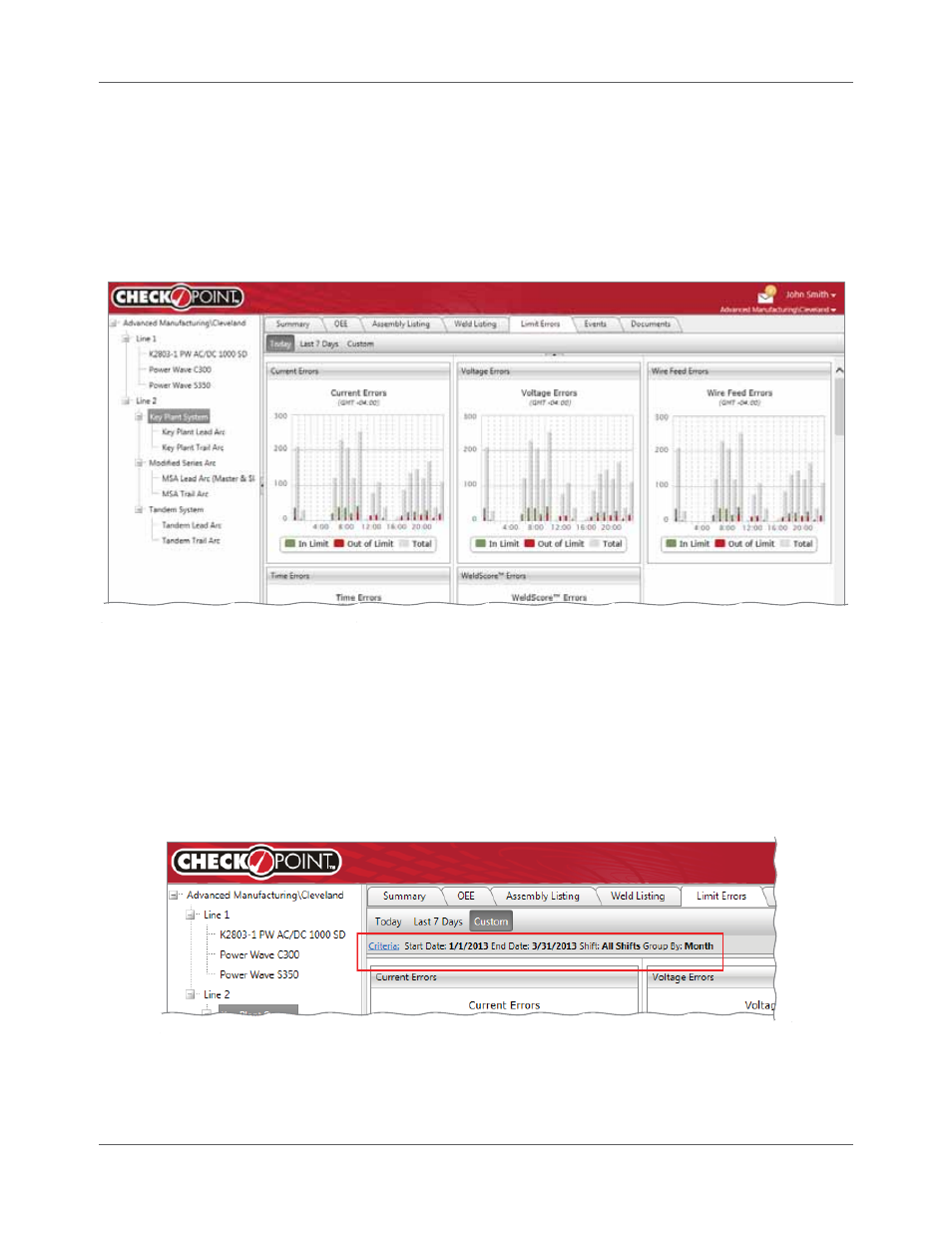

Figure 12.2 Limit Error Reports for the Last Seven Days
Custom
The Custom option contains the same widgets you find under the other reports; however, Custom allows
you to set the criteria for the information you want to view. This allows you to analyze the number of limit
errors for an individual Welding Power Source or a Container. Being able to analyze the data based on
date and/or shifts and to group that information in certain ways is a powerful tool for helping you manage
your welding operations.
Figure 12.3 Custom Report (for a Container)
To change the options for the report widgets, simply click the Criteria link (Figure 12.3) and make your
selections. Click Save and the graphs update to reflect the appropriate information for you, depending on
