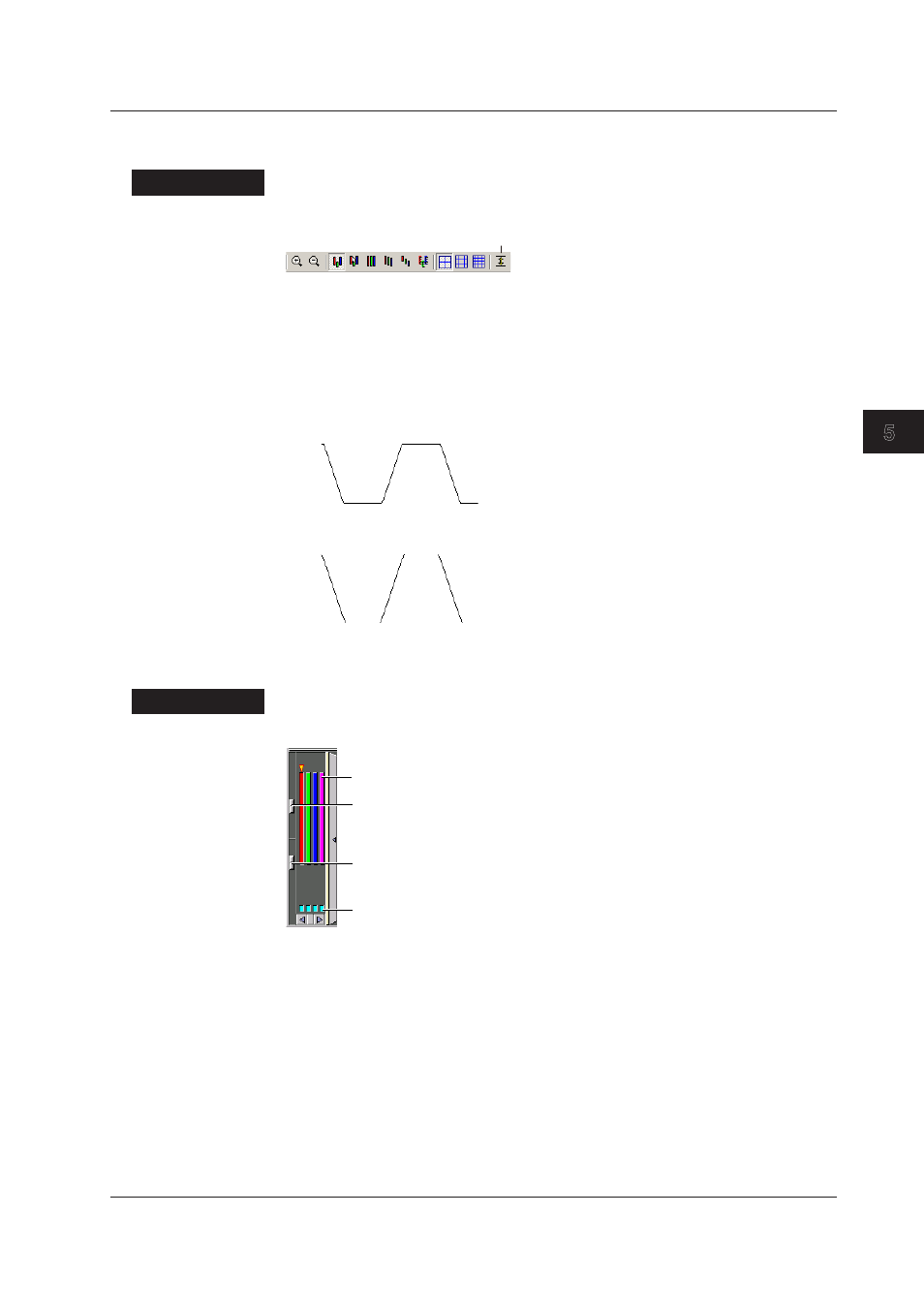

Assigning Display Limits
You can specify how to display the waveform outside the display range.
Procedure
Click Clip on the toolbar or choose Clip from the Y-Axis menu.
Clip
The waveform display range along the Y-axis is limited to the minimum and maximum
values of the scale specified in the General Display Settings. Measured data that
is smaller than the scale (minimum) is displayed as a minimum value on the scale;
measured data that is greater than the scale (maximum) is displayed as a maximum
value on the scale.
• Display example when display limits are assigned on the displayed waveform
• Display example when display limits are not assigned on the displayed waveform
Turning ON/OFF the Waveform Display
To make a specific waveform stand out, you can hide other waveforms.
Procedure
Click the check box below the zone bar to turn ON (blue)/OFF the waveform display.
Grid brightness adjustment knob
(see “Adjusting the Brightness”)
Brightness adjustment knob of the waveform display area
(see “Adjusting the Brightness”)
Zone bar
Check box used to turn ON/OFF the waveform display
