Displaying Logged Data (Historical V
iewer)
1
2
3
4
5
Index
6
Showing/Hiding the Waveform, Y-Axis, Trip 1, and Trip 2
• Click the waveform number, y-axis, trip 1, and trip 2 check boxes to switch between
show (blue) and hide.
• If consecutive cells are selected, you can click the tool cell at the bottom to collectively
switch the show/hide setting of all the cells in the selected range.
Using the Shortcut Buttons
There are four kinds of shortcut buttons.
You can enter a setting on every cell in the range all at once. If a range of waveform
numbers is not selected, the action applies to all waveform numbers.
A: Shows or hides the selected items in the column.
B: Channel numbers are filled from the first cell in the selection to the last, each channel
being assigned a number 1 higher than the last.
C: Copies the first value in the selected range to all items in the selected range.
D: Restores the default values.
Saving the Settings
Click OK to save the settings and close the General Display Settings dialog box.
Click Cancel to cancel the settings and close the General Display Settings dialog box.
Entering the Display Conditions for Each Group
Up to 32 channels can be assigned to a group. A maximum of 50 groups can be used.
The General Display Settings of Historical Viewer differ from that of Data Monitor in the
following points.
• There is no Form item.
• There is no Meter Type item.
• There is no Apply button.
• There is a Scale Calc button.
Procedure

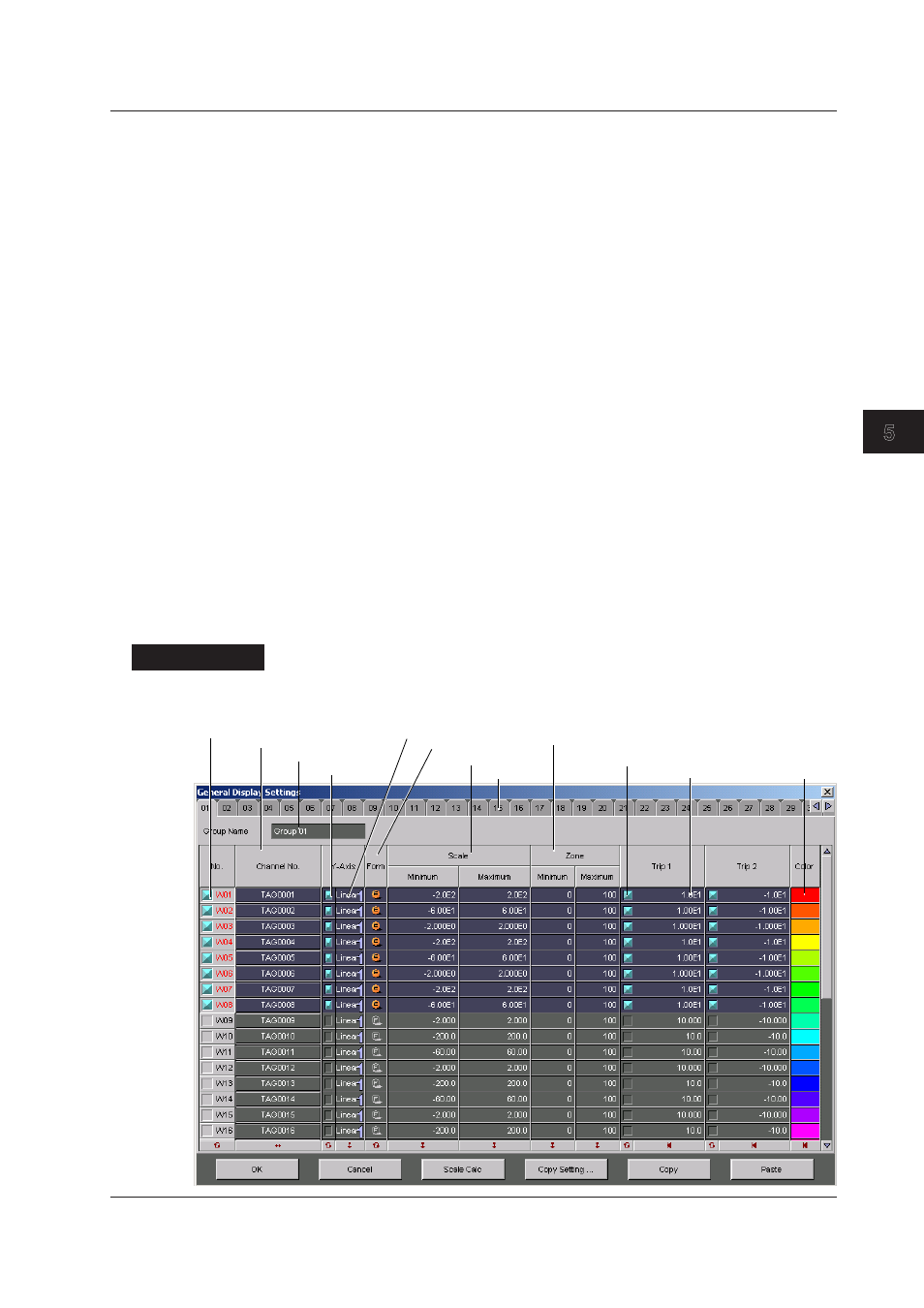

Click General Settings on the toolbar or choose View > General Settings from the menu
bar. The Detailed Settings dialog box opens.
Color
Display range
Channels to be registered
Set the trip point
Show or Hide
Group name
Waveform display zone
Turn ON/OFF the trip line display
Y-axis display
Axis type
Group tab
Display type
5.2 Setting the Display Conditions
