2.4 Entering Data Logging Conditions
Channel Settings
Select channels to which channels and data files acquired from the monitor server are
saved. Also, the channel information (channel name, tag number, tag comment, max
value, min value, units, and alarm settings) obtained using the procedure described in
Retrieving and Displaying Host Information (see page 2-8) is displayed.
Procedure

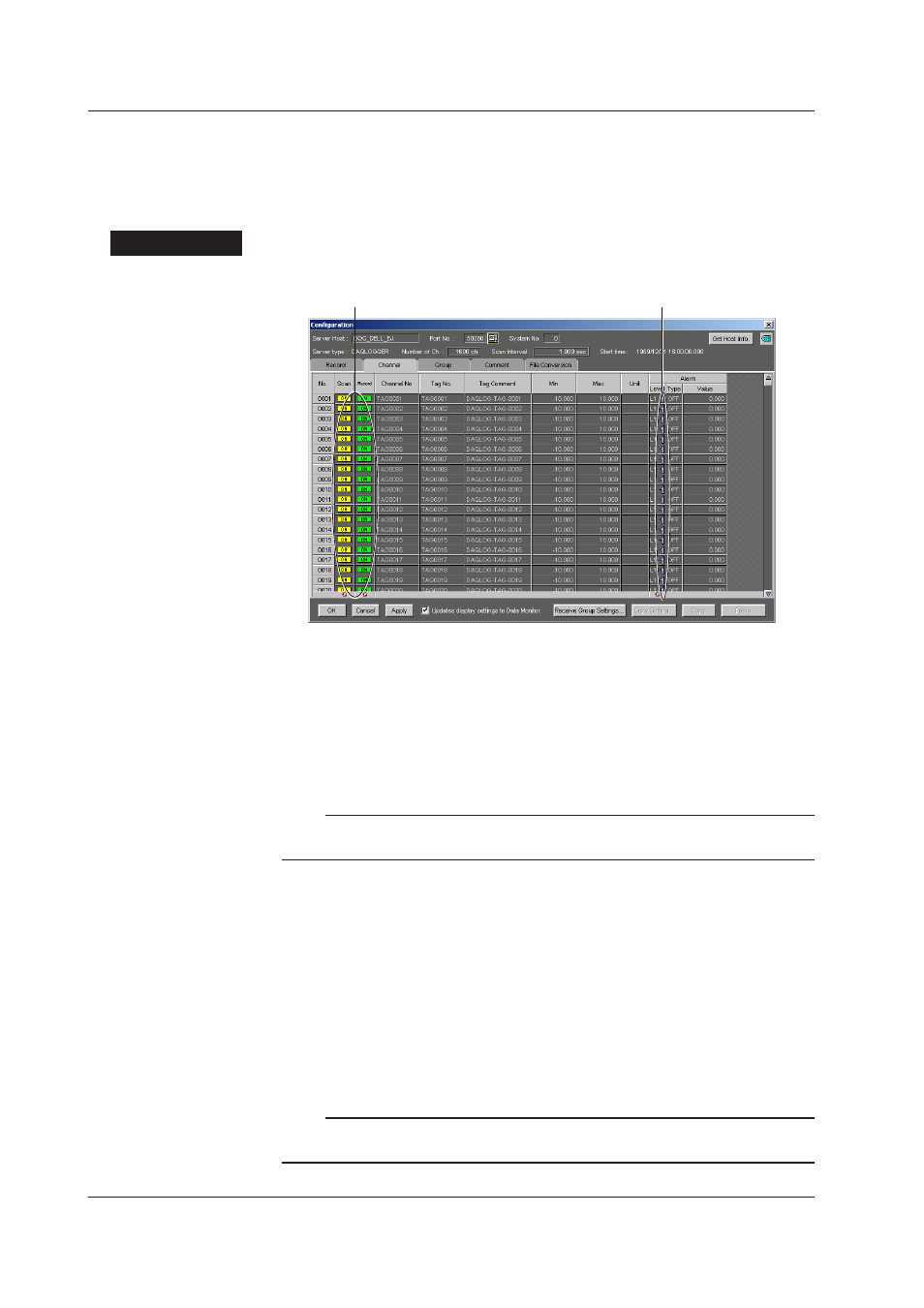

Click the Channel tab.
ON/OFF switching Switches the selected item
Turning Scanning ON/OFF on Selected Channels
1. Click the cell for a channel to turn scanning ON or OFF.
Channels set to ON are loaded from the monitor server.
Turning Recording ON/OFF on Selected Channels
2. Click the cell for the channel to turn recording ON or OFF.
Data from channels set to ON are saved to a file.
Note
• When you turn recording ON, scanning for that channel is turned ON automatically.
• When you turn scanning OFF, recording for that channel is turned OFF automatically.
Switching the Alarm Setting
Each time you click the cell for the level of the alarm information, the setting
scrolls through the following options: L1->L2->L3->L4->L1.
Turning Scanning and Recording ON/OFF, and Switching All Alarm Levels
at Once
1. After selecting channel numbers, click the shortcut button to switch the channels
and levels.
See page 2-9, “Basic Operation” for details.
Note
Channel setting items other than ON/OFF for scanning and recording are not changed. They
are simply displayed for your reference.
