5-11 IM WX13-01E
Displaying Logged Data (Historical V
iewer)
1
2
3
4
5
Index
6

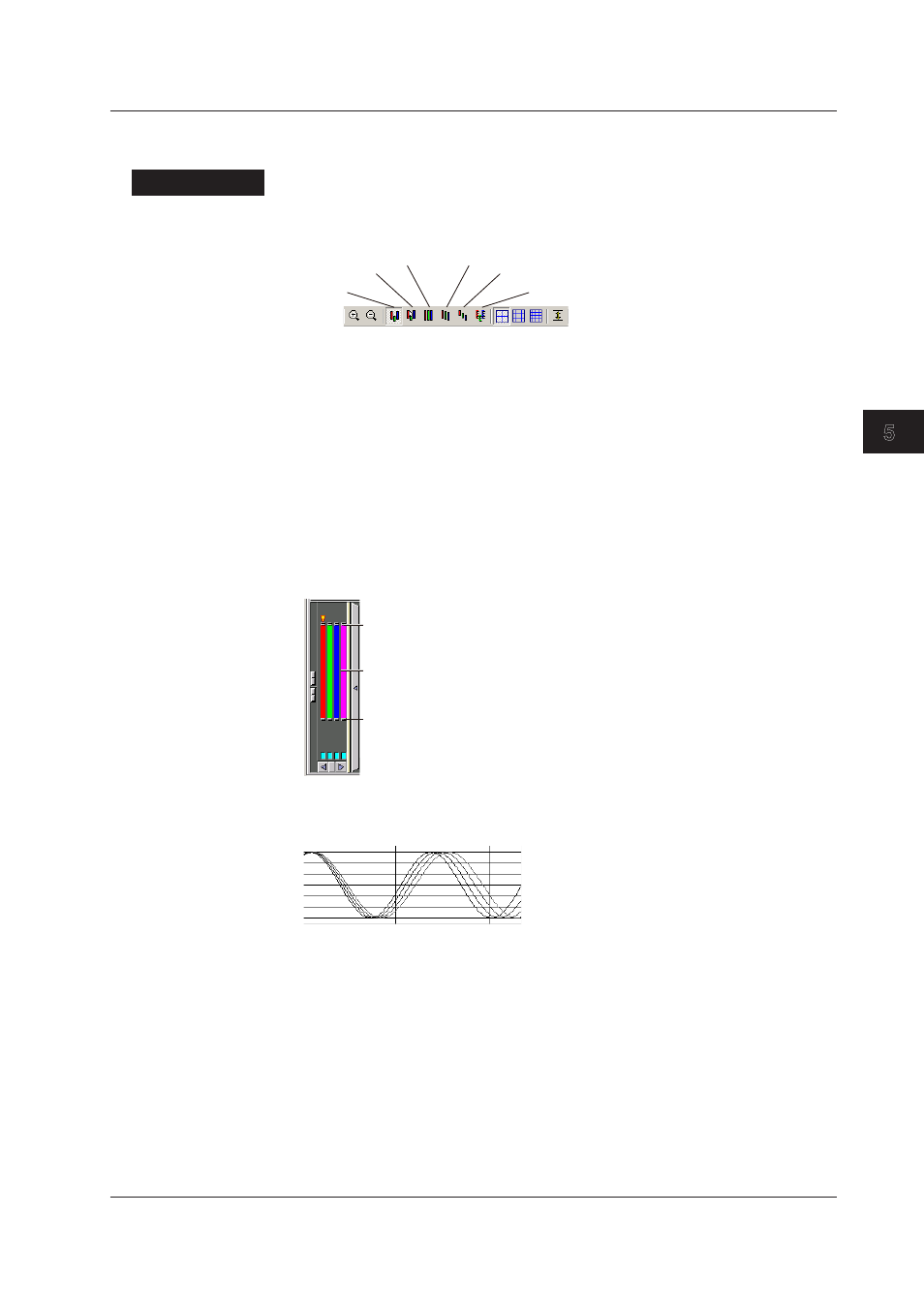

Selecting the Waveform Display Zone
You can change the display zone of the waveform.
Procedure
Click an icon for the waveform display zone on the toolbar or choose Waveform display
zone from the Y-Axis menu.
User Zone
Edit Zone
Multi-Axis Zone
Auto Zone
Full Zone Slide Zone
• User Zone
Displays the waveform using the zone specified in the General Display Settings.
• Edit Zone
You can change the zone in the zone display area of the graph screen.
In the zone display area, drag the slider at the top and bottom ends of the zone bar
to change the zone. The zone setting specified in the zone display area is reflected in
the General Display Settings dialog box.
Drag the top adjustment slider to move the top end of the zone.
Likewise, drag the bottom adjustment slider to move the bottom end of the zone.
The entire zone moves by dragging the zone bar itself.
Zone bar
Top adjustment knob
Bottom adjustment knob
• Full Zone
Assigns a full zone to all the displayed waveforms.
5.3 Changing the Waveform Display and Numerical Display
