5-10 IM WX13-01E

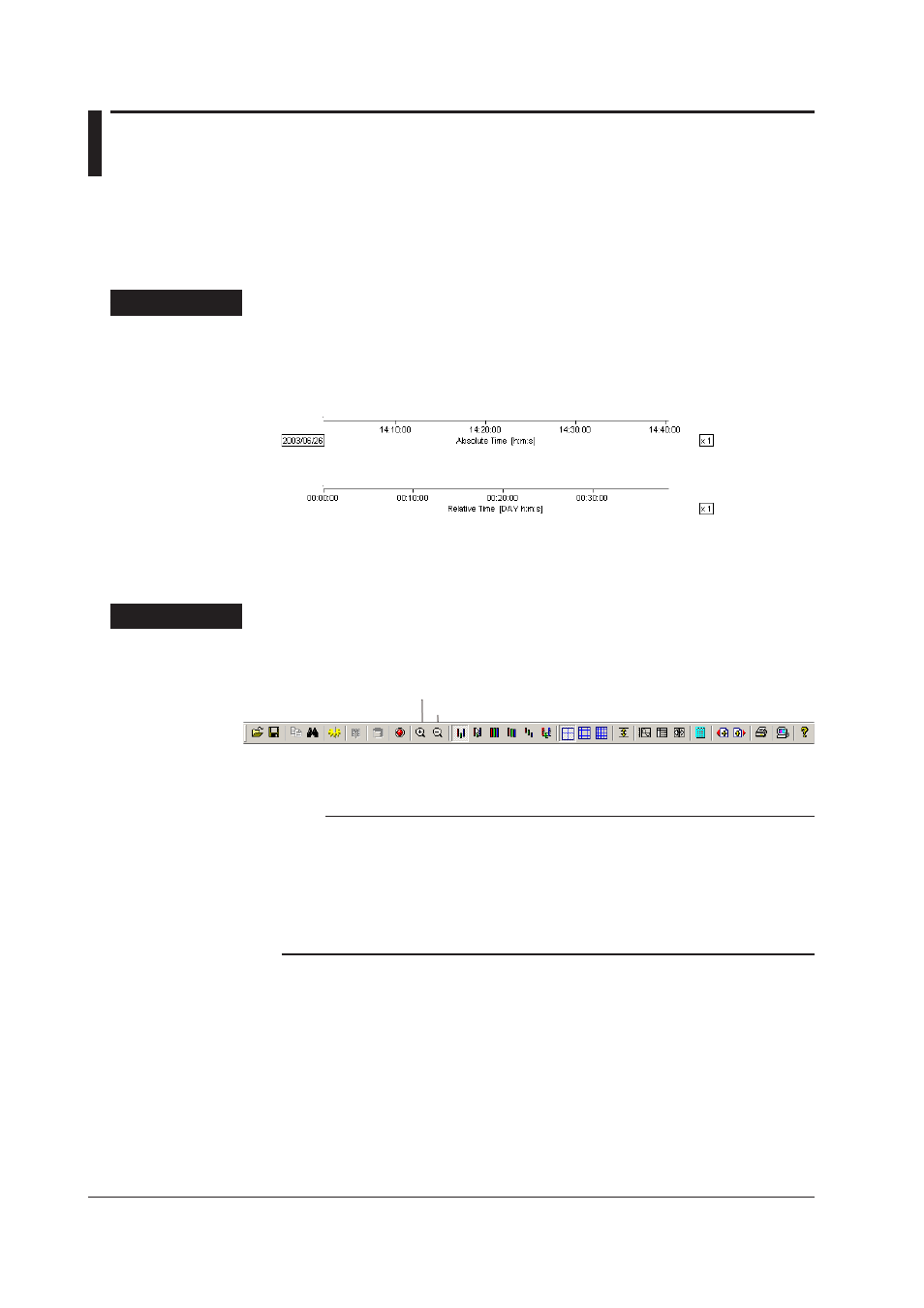

5.3 Changing the Waveform Display and Numerical
Display
This section describes how to change the display on Historical Viewer screen.
Changing the Time Axis
You can change the time axis display. On the absolute time display, the date is displayed
at the left end.
Procedure
Choose Absolute Time or Relative Time from the Time-Axis menu.
Absolute Time: Displays the time.
Relative Time
: Displays the elapsed time from the first data point.
Absolute time display
Relative time display
Zooming In or Out on the Time Axis
You can adjust the time span. The zoom factor of the time axis is displayed at the lower
right corner.
Procedure
Click Zoom In or Zoom Out on the toolbar or choose Zoom In or Zoom Out from the
Time-Axis menu.
Zoom In
Zoom Out
The waveform is displayed after zooming in or out of the time axis.
Note
• There are 14 zoom factors: 1/1000, 1/500, 1/200, 1/100, 1/50, 1/20, 1/10, 1/5, 1/2, 1, 2, 5,
10, and 20.
However, the minimum zoom factor that can be displayed varies depending on the number
of pixels in the waveform display area. Therefore, the minimum zoom factor that can be
displayed varies depending on the monitor screen size.
• The absolute and relative time format (example: MM/DD HH:MM or HH:MM:SS)
automatically switches depending on the zoom factor.
Choose Time-Axis > Scale from the menu bar to open the Time Axis Scale dialog box.
You can expand or reduce the time axis at an arbitrary factor that you enter.
• Zoom in range: 1 to 20 (whole number)
• Zoom out range: 1/1 to 1/1000 (the denominator is a whole number)
Choose All from the Time-Axis menu to adjust the zoom factor so that all the data can be
displayed on the waveform display screen.
