Changing the Time Axis
You can change the time axis display. On the absolute time display, the date is
displayed at the left end.
Procedure
Choose Absolute Time or Relative Time from the Time-Axis menu.
Absolute Time: Displays the time.
Relative Time
: Displays the elapsed time from the first data point.

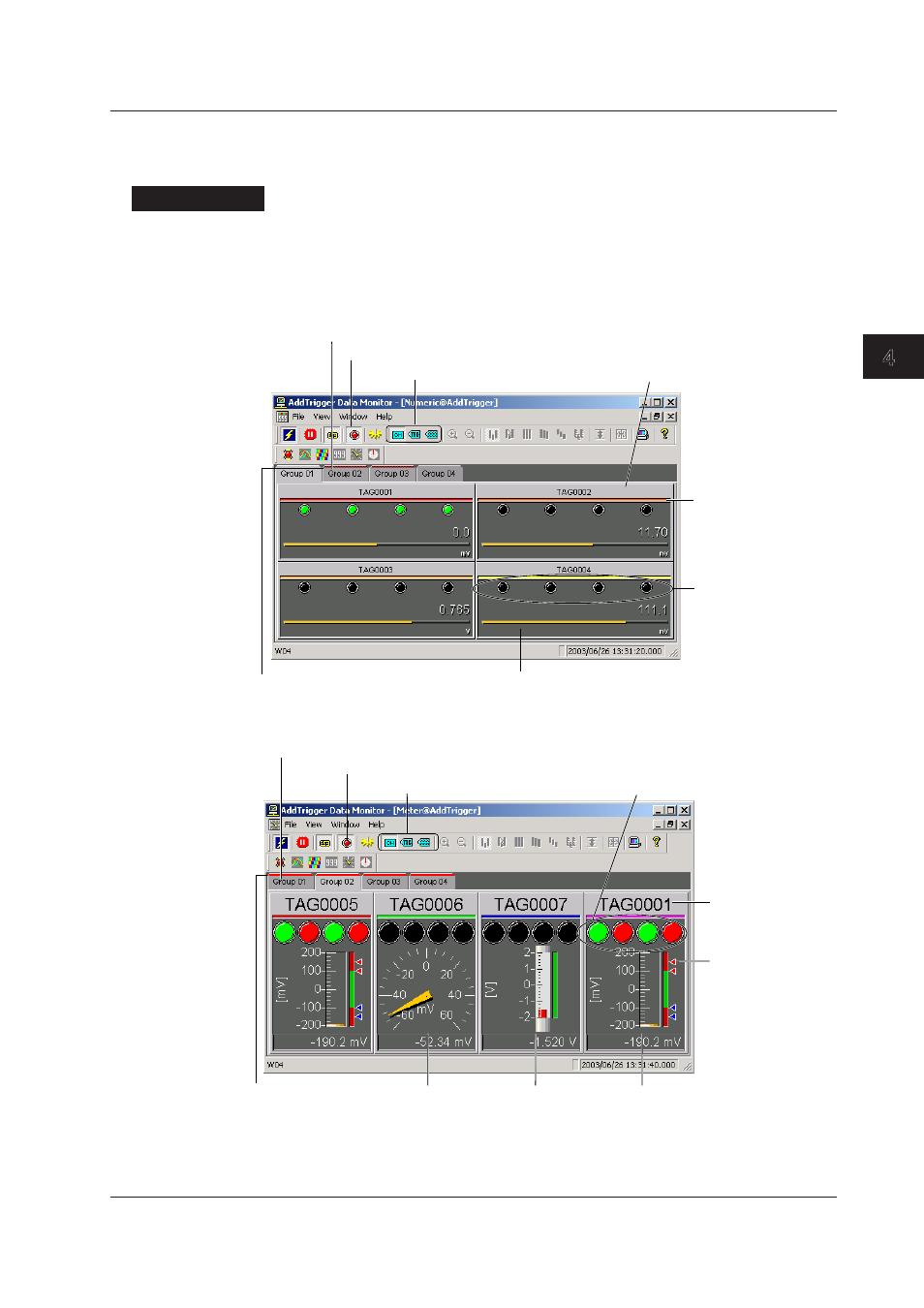

Numeric Monitor
A red bar blinks when an alarm occurs.
Select the displayed group
Alarm ON/OFF
Channel No., Tag No., or Tag Comment
Alarm indication
(from the left:
level 1, 2, 3, and 4)
Waveform display color
Channel No., tag No.,
or tag comment
Bar display of the logged data
Meter Monitor
Select the displayed group
Alarm ON/OFF
Channel No., Tag No., or Tag Comment
Alarm indication
(from the left: level 1, 2, 3, and 4)
Channel No., tag No.,
or tag comment
Alarm setpoint
A red bar blinks
when an alarm occurs.
Bar meter Analog meter Thermometer
