4-8 IM WX13-01E

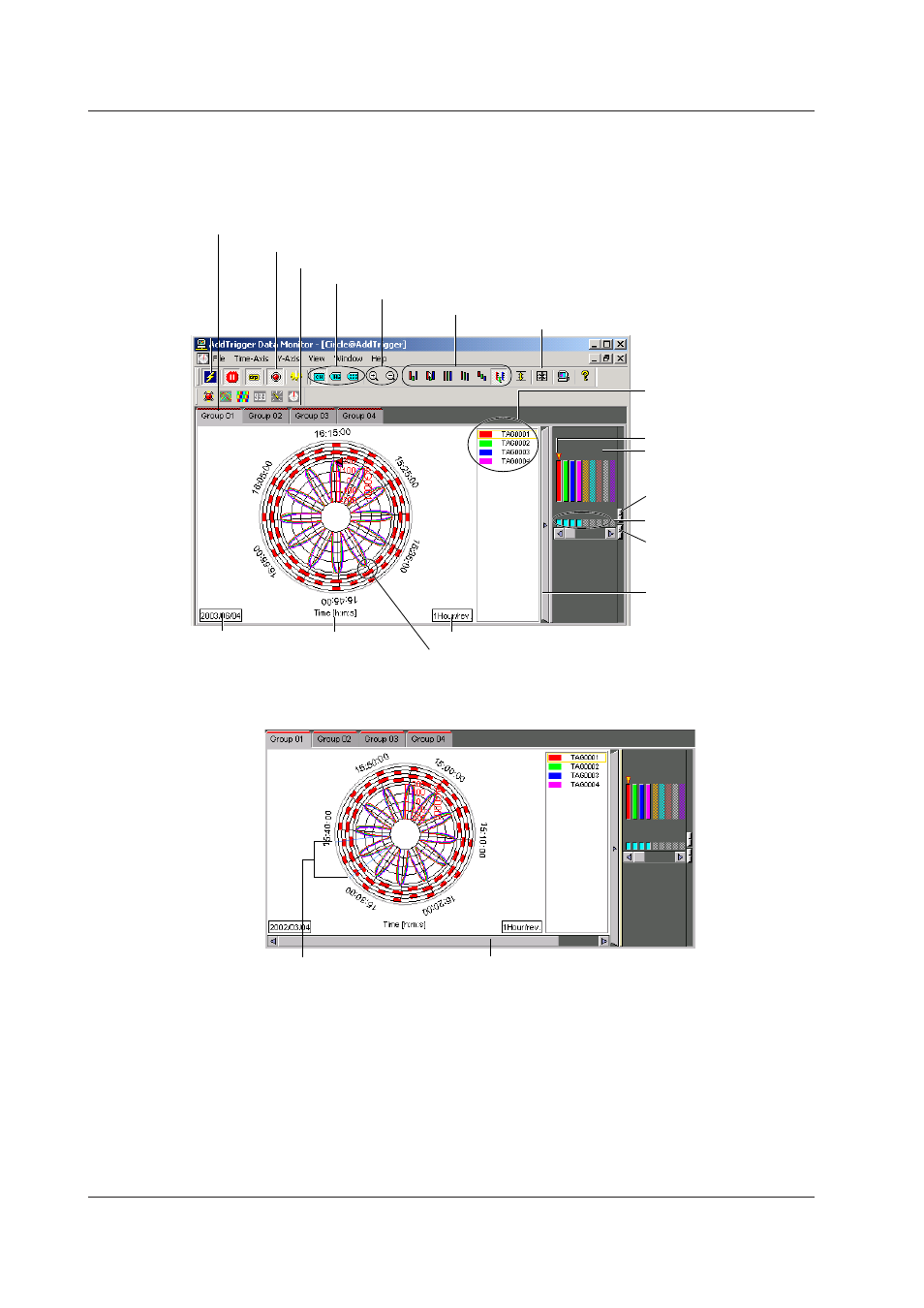

Circular Monitor
You can display one hour to four weeks worth of data on a circular graph. On the circular
graph, the radius corresponds to the Y-axis of the trend display, and the circumference
corresponds to the time axis.
Select the displayed group
Alarm ON/OFF
Channel No., Tag No., or Tag Comment
The red bar blinks when an alarm occurs.
Current waveform mark
Zone display area
Waveform display ON/OFF
Date Absolute or
relative time Alarm indication
Displayed time per cycle
Brightness adjustment
knob of the waveform
display area
Grid brightness
adjustment knob
Show/Hide zone
display area
Zoom In or Zoom Out of the time axis
Waveform display zone
Display Cursor’s Value
Circular display channel
Select the current waveform
When monitor paused
Cursor
When the monitor is paused
Move the waveform display position (Scroll bar).
For the operating procedures listed below, see section 4.3, “Changing the Waveform
Display.”
For operations using the cursor, see section 4.4, “Using Cursors.”
• Using the waveform display zones (user zone, edit zone, full zone, slide zone, auto
zone, multi-axis zone).
• Showing/hiding alarms.
• Specifying the thickness of the waveform display lines.
• Changing the time axis display (absolute or relative).
• Adjusting the brightness of the waveform display area and grid.
• Using cursors.
4.1 Displaying Waveforms on Monitor Screens
