Entering Settings (Launcher)

2.4 Entering Data Logging Conditions

Index

Basic Operation

Restrictions When Using the Configuration Dialog Box

The following restrictions apply when using the Configuration dialog box.

• If password protection is ON, all operations are disallowed.

• If password protection is OFF and scanning is in progress, only the host name and

port number can be changed.

• If password protection is OFF and recording is in progress, all operations are

disallowed.

Note

You can select a channel identifier of Channel No., Tag No., or Tag Comment. In the

explanations below, the channel identifier is set to Channel, but you can substitute Tag No. or

Tag Comment according to your situation.

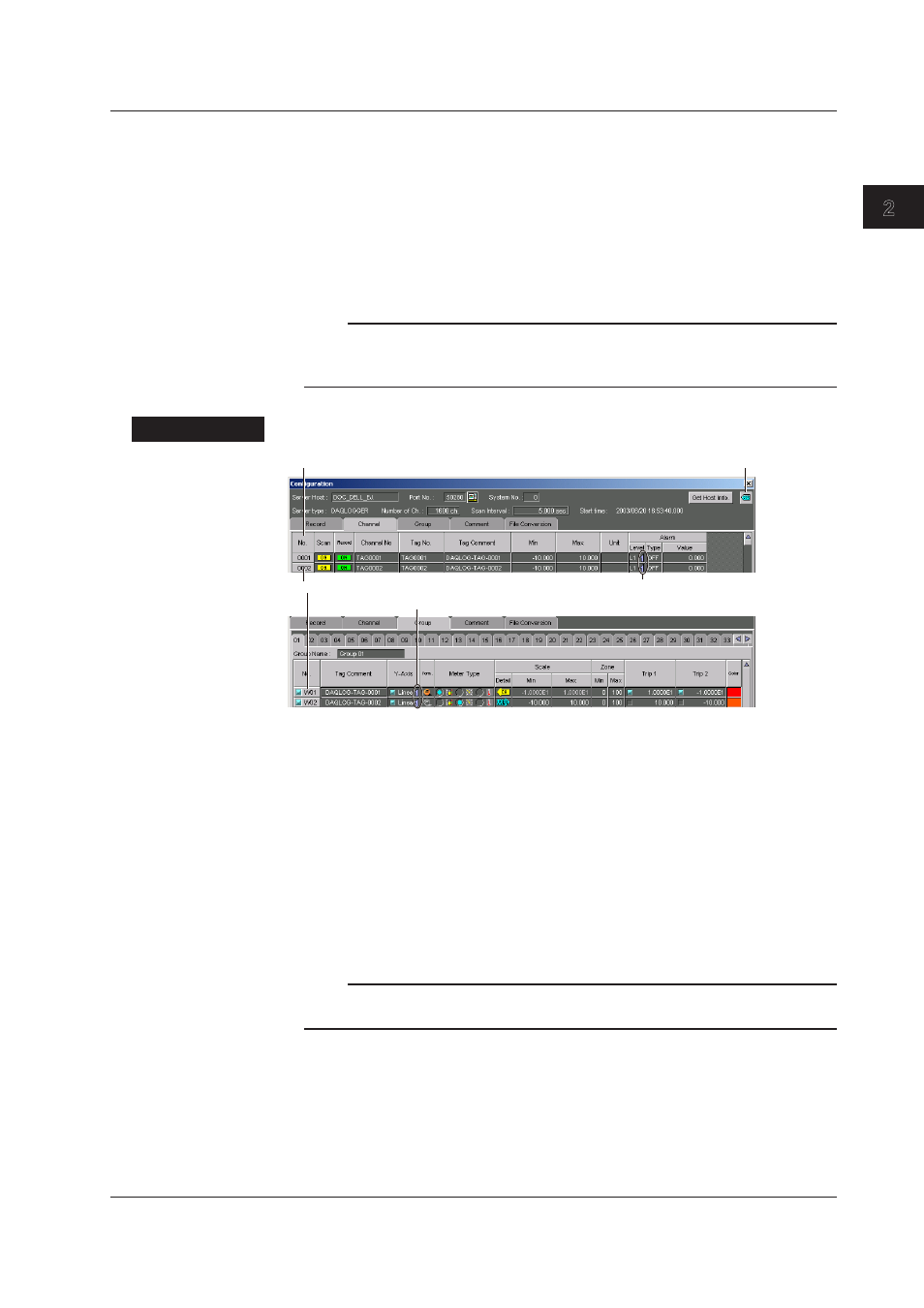

Procedure

Select all (ON/OFF)

Channel identifier switching button

Waveform number/channel number

Selection button

Toggles USER and CH

Click the channel identifier switching button to switch the display in these cells

Switching the Channel Identifier

Click the button at the upper right corner to switch between Channel No., Tag No., and

Tag Comment.

Selecting the Waveform Number or Channel Number

• To select a range of waveform or channel numbers consecutively, click the first

waveform cell, and then hold down the SHIFT key while clicking the last cell. You
can also drag the cursor from the first waveform number to the last.

• To select all waveform numbers or channel numbers, click the No. cell. The

waveform or channel numbers are displayed in blue. To cancel the selection, click

the No. cell again.

Note

Clicking the shortcut button when no waveform/channel numbers are selected achieves the

same result (selects all).
