Entering Settings (Launcher)
2.4 Entering Data Logging Conditions
1
2
3
4
5
Index
6
Group Settings
These group settings are saved to data files, and when data files are displayed on data
viewer (see chapter 5) these settings are also displayed. You can also apply the display
conditions modified here to Data Monitor (see chapter 4).
Procedure
Click the Group tab.

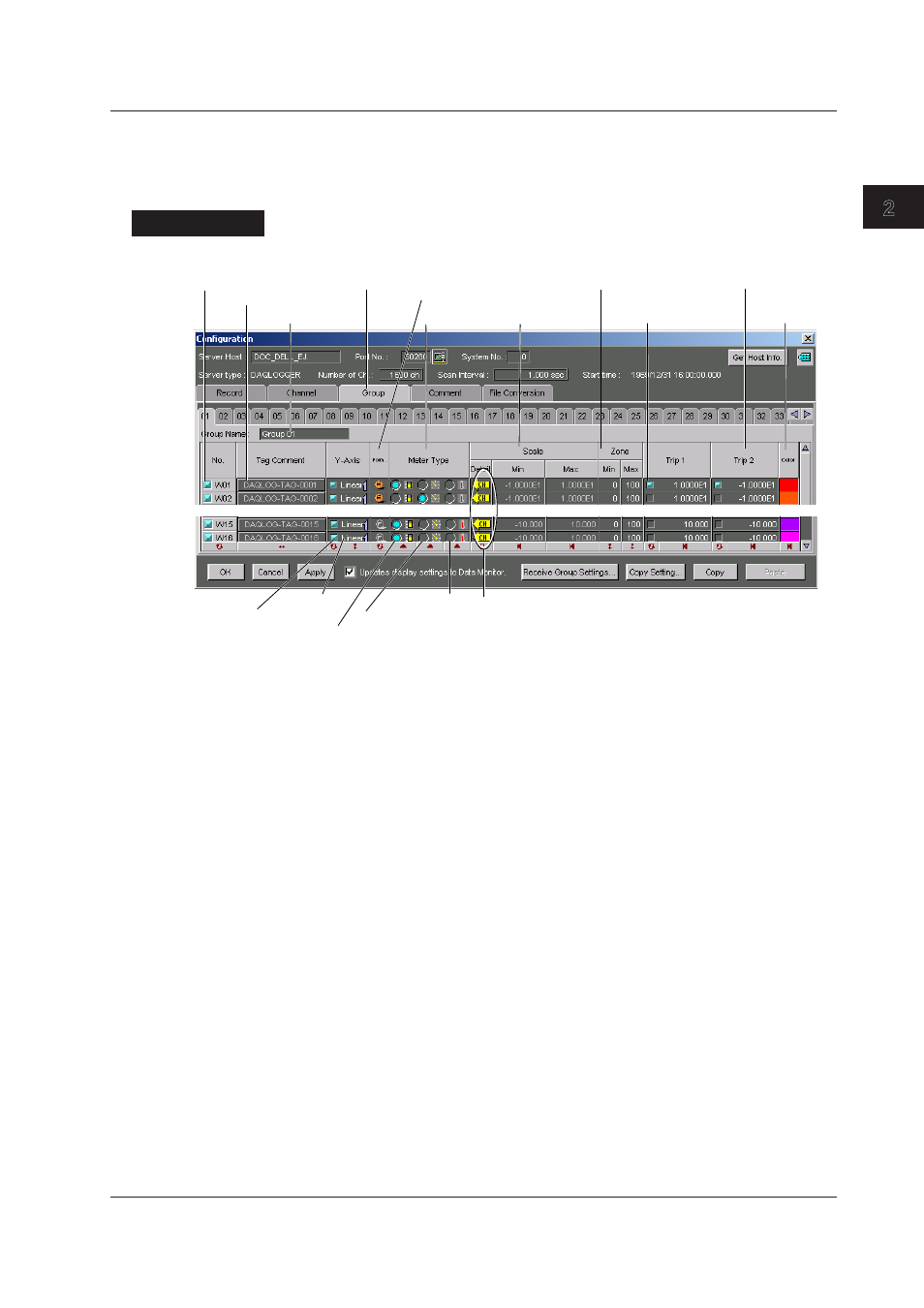

Channel to be registered
Group name Color Display range Meter type
Set the trip point. Show or Hide Group tab Zone (display position)
Turn ON/OFF the
trip line display
Floating point/exponential
display
Bar meter
Analog meter
Thermometer
Y-axis display
Axis type
USER/CH switching (user settings/server settings)
CH: the max and min values of the channels assigned
to record start time are obtained.
USER: the values entered into the box are set as the
max and min values.
Selecting a Group
Click a group tab to select the group.
Group Name
Click the Group Name box and enter the group name using up to 16 alphanumeric
characters.
Showing/Hiding the Waveform
Select the No. check box.
Blue: Shows the waveform.
Gray: Hides the waveform.
Y-Axis
You can specify whether to show or hide the Y-Axis (scale) when Multi-Axis Zone is
selected. Click the check box.
Blue: Shows the Y-axis.
Gray: Hides the Y-axis.
Specifies the axis type. Linear and Log toggle each time the box is clicked.
Linear: Linear scale.
Log: Logarithmic scale.
