Monitoring Data (Data Monitor)

Index

Note

• Dragging the Trip Line

You cannot drag the trip line on the circular monitor (page 4-17). To change the position of

the trip line, change the value in the General Display Settings dialog box.

• Waveform Display Limit

When the measured data is below the minimum display range, the waveform is displayed

at the minimum value position; when the measured data is above the maximum value, the

waveform is displayed at the maximum display position.

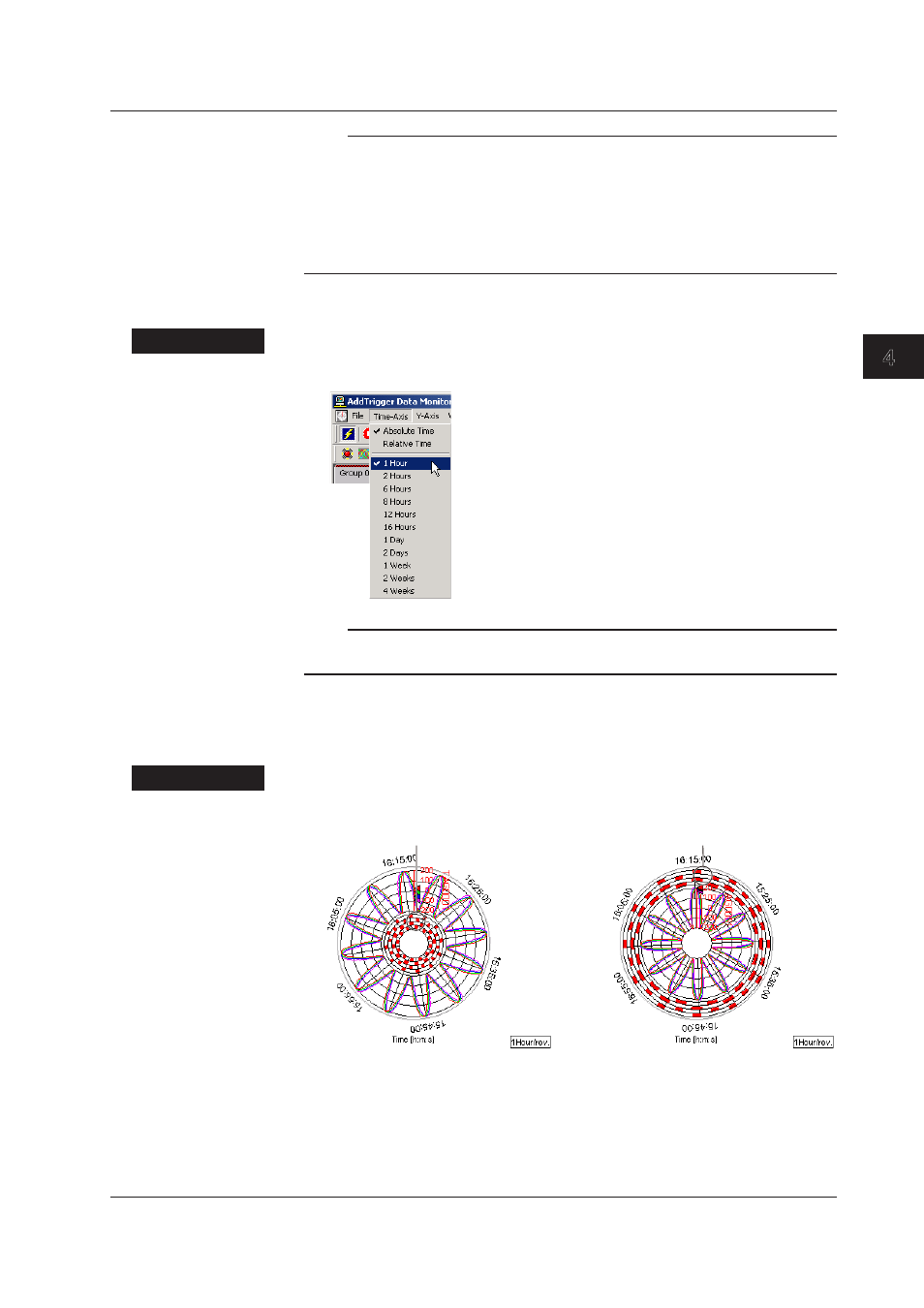

Setting the Time Axis

Procedure

Choose the time per cycle from the Time-Axis menu.

Note

Up to 1800 points of data can be displayed (30 minutes when the scan interval is set to 1 s and

5 hours when the scan interval is set to 10 s).

Changing the Alarm Indication Position

You can select whether alarms are displayed on the inside or the outside of the

waveform display section of the circular screen.

Procedure

Choose Alarm Inside or Alarm Outside from the View menu.

Alarm Inside

Alarm Outside
