5-6 IM WX13-01E
5.2 Setting the Display Conditions
You can specify the display conditions for each group.
Note
You can select a channel identifier of Channel No., Tag No., or Tag Comment. In the
explanations below, the channel identifier is set to Channel, but you can substitute Tag No. or
Tag Comment according to your situation.

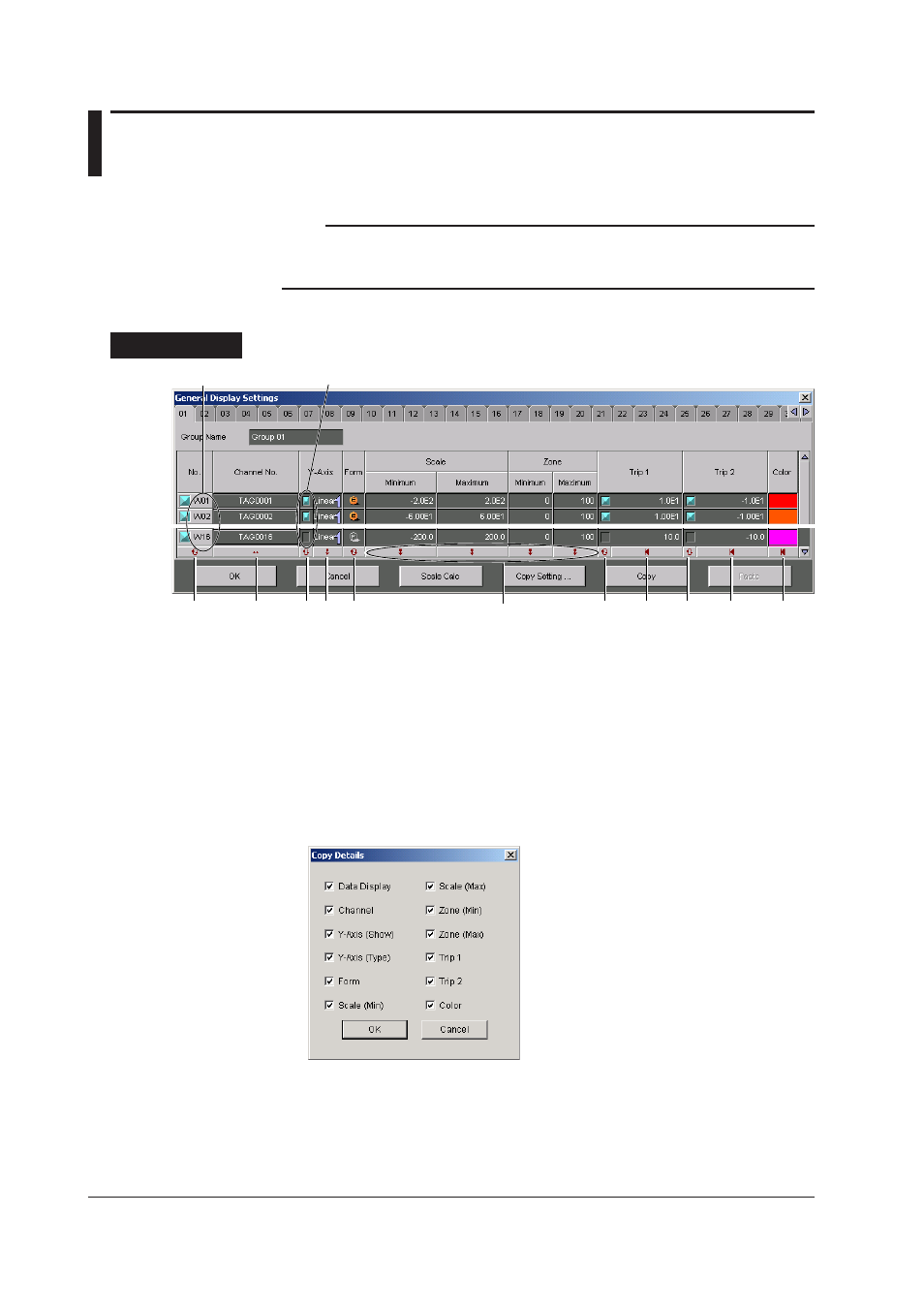

Basic Operation
Procedure
Waveform number
A A B A D D C A C A D
Show or Hide
A to D are the collective setup buttons (see the next page).
Selecting the Waveform Number
• Click a waveform number in the No. column.
• To select waveform numbers consecutively, click the first waveform cell, and then click
the last cell number while holding down the SHIFT key. You can also drag the cursor
from the first waveform to the last.
Copying the Group Settings
Carry out the following procedure to copy the detailed settings of one group to another
group.
1. Click Copy Setting in the General Display Settings dialog box.
The Copy Setting dialog box opens.
2. Select the check boxes for the items to be copied and click OK. The dialog box
closes.
3. Click the tab corresponding to the copy source group.
4. Click Copy.
5. Click the tab corresponding to the copy destination group.
6. Click Paste.
