4.2 Setting the Display Conditions
Set the display conditions for each group.
Note
You can select a channel identifier of Channel No., Tag No., or Tag Comment. In the
explanations below, the channel identifier is set to Channel, but you can substitute Tag No. or
Tag Comment according to your situation.
Opening Setting Screens
Procedure
Click General Display Settings on the toolbar or choose General Display
Settings from the View menu. The General Display Settings dialog box opens.

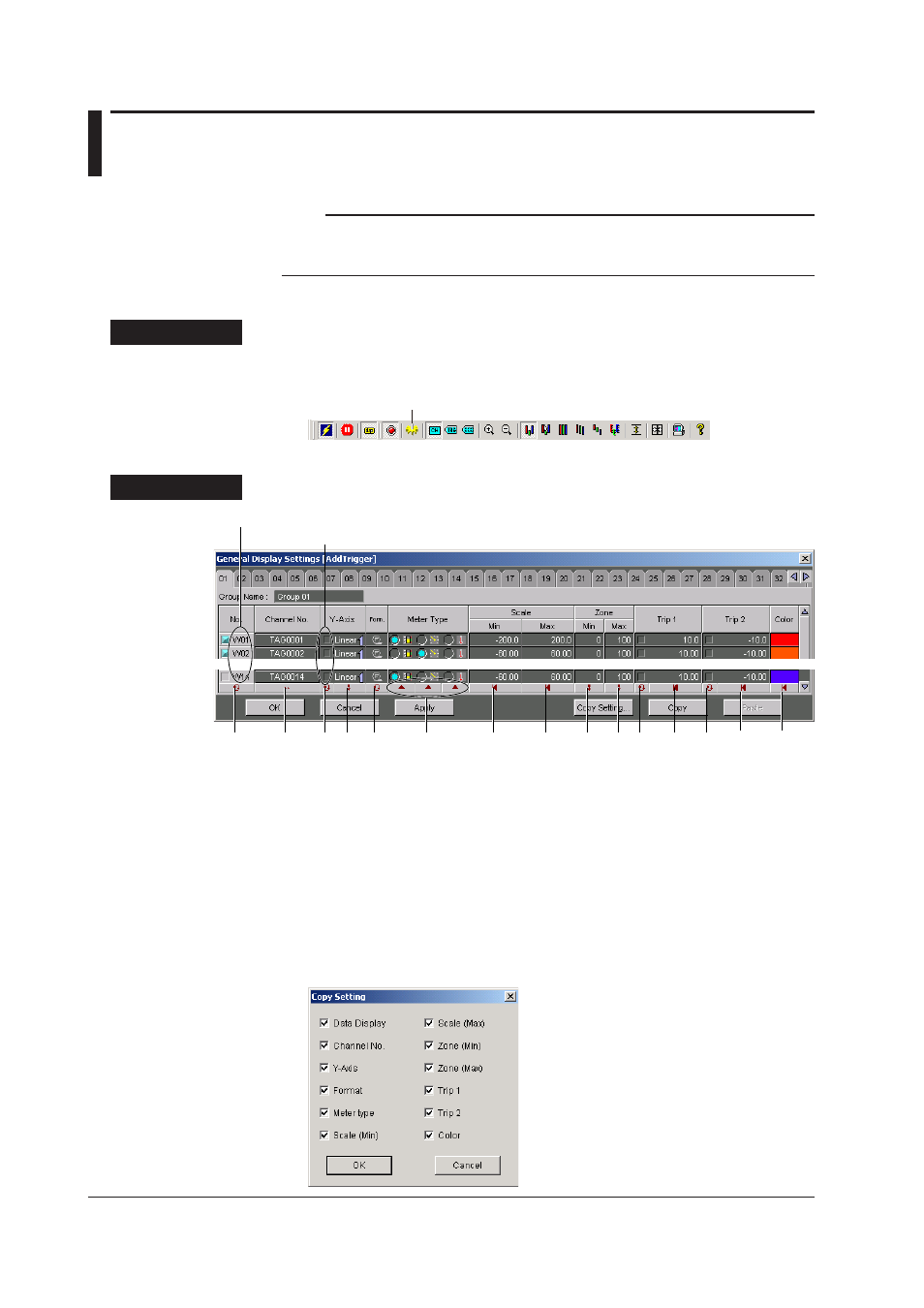

General Display Settings
Basic Operation
Procedure
A B A D A C E E D D A E A E E
Show or Hide
Waveform number
A to E are the collective setup buttons (see the next page).
Selecting the Waveform Number
• Click the waveform number (in the No. column).
• To select waveform numbers consecutively, click the first waveform cell, and then click
the last cell number while holding down the SHIFT key. You can also drag the cursor
from the first waveform to the last.
Copying the Group Settings
Carry out the following procedure to copy the display conditions from one group to
another group.
1. Click Copy Setting in the General Display Settings dialog box.
The Copy Setting dialog box opens.
