Page 72
4-12
IM WX13-01E

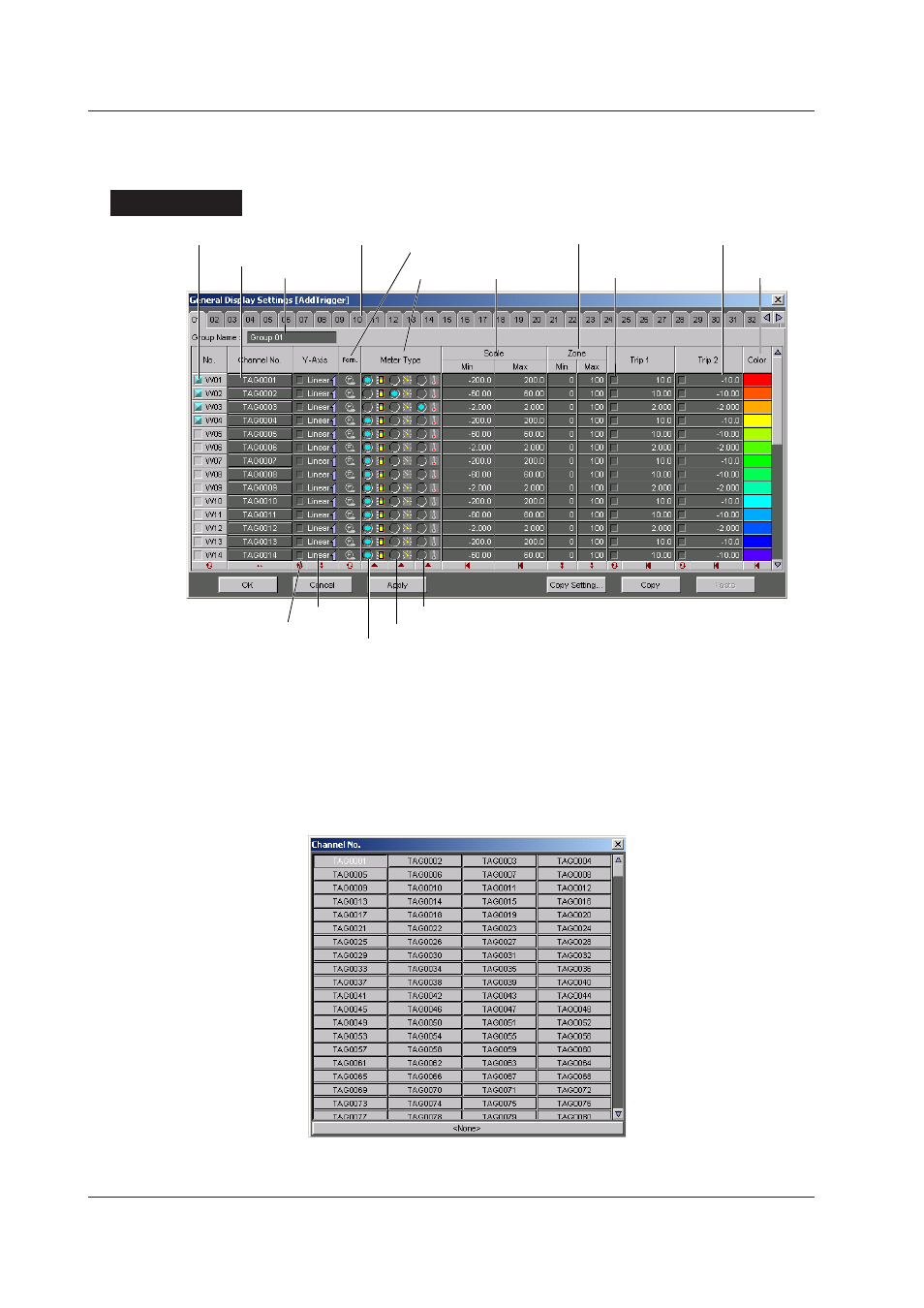

Setting the Display Conditions for Each Group
Up to 32 channels can be assigned to a group. A maximum of 50 groups can be used.
Procedure
Channel to be registered
Group name
Color
Display range
Meter type
Set the trip point.
Show or Hide
Group tab
Waveform display zone
Turn ON/OFF the
trip line display
Linear display or
logarithmic display
Bar meter
Analog meter
Thermometer
Y-axis display
Axis type
Click a group tab to select the group.
Group Name
Click the Group Name box and enter the group name using up to 16 alphanumeric
characters.
Channel
1.
Click a channel cell. The Channel No. dialog box opens.
4.2 Setting the Display Conditions
