4-6 IM WX13-01E

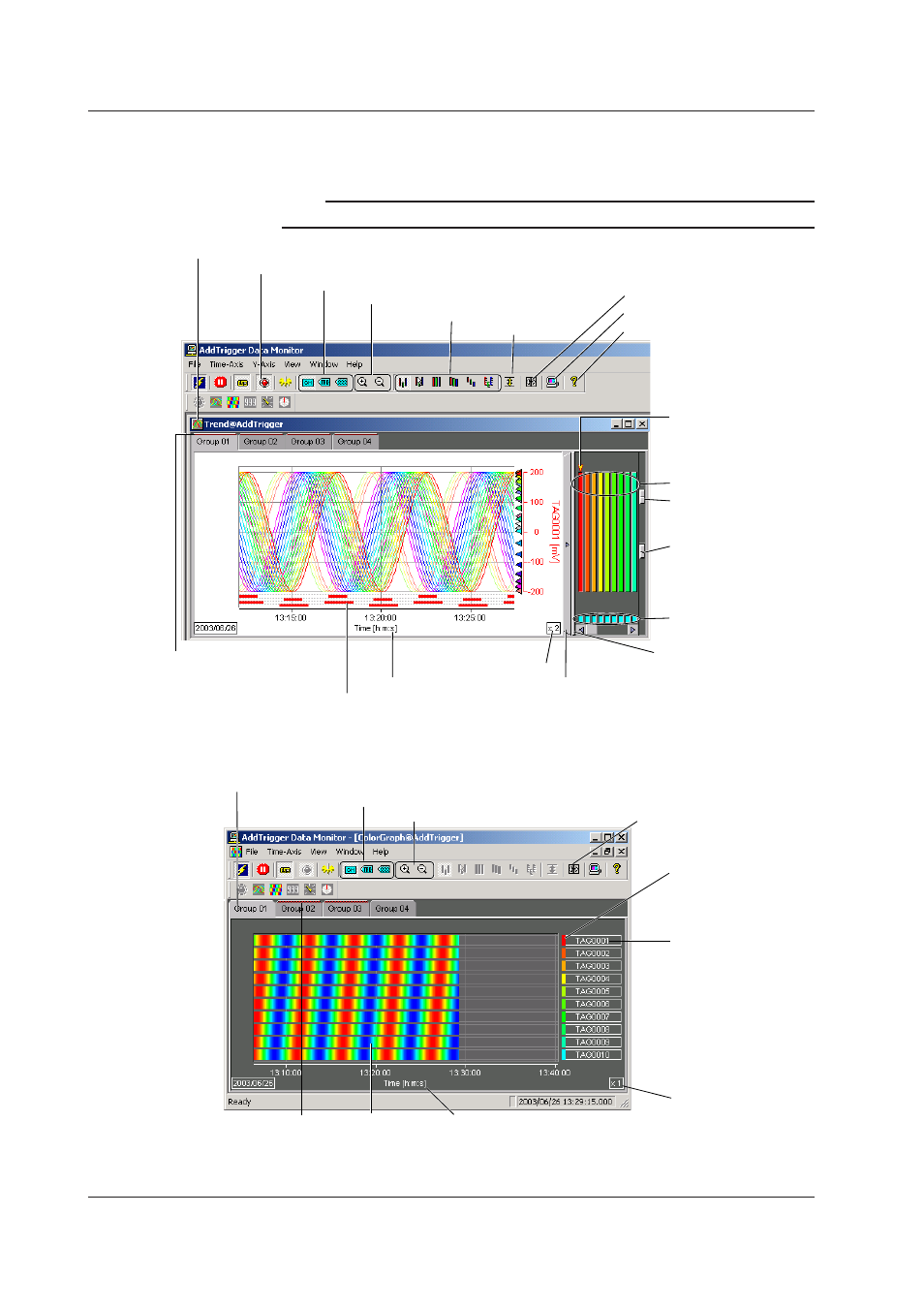

Trend Monitor
For the operating procedure, see section 4.3, “Changing the Waveform Display.”
For operations using the cursor, see section 4.4, “Using Cursors.”
Note
Up to 1800 points of data can be displayed (30 minutes when the scan interval is set to 1 s).
Waveform display
ON/OFF
Select the displayed group
Alarm ON/OFF
Channel No., Tag No., or Tag Comment
Zoom In or Zoom Out of the time axis
Waveform display zone
Clip
Display Cursor's Value
Launcher
Current waveform
mark
Zone bar
Zone display area
Grid brightness
adjustment knob
A red bar blinks
when an alarm occurs.
Alarm indication
Absolute or relative time
Zoom factor
Show/Hide zone
display area
Drag this bar to adjust the
width of the waveform
display area when the
monitor is paused.
Brightness adjustment
knob of the waveform
display area
About Data Monitor
Color graph monitor
For operations using the cursor, see section 4.4, “Using Cursors.”
Zoom factor
Select the displayed group
Channel No., Tag No., or Tag Comment
Zoom In or Zoom Out of the time axis Display Cursor's Value
Waveform display color
Channel No., tag No.,
or tag comment
Color graph
Displays the data by using the 50 different colors that are assigned between
the minimum and maximum values of the scale. Assigned in the following
order: blue (minimum), light blue, green, yellow, and red (maximum).
Absolute or relative time A red bar blinks
when an alarm occurs.
4.1 Displaying Waveforms on Monitor Screens
