Displaying Logged Data (Historical V
iewer)
1
2
3
4
5
Index
6
Zone
Click the value box and enter the maximum and minimum values of the waveform display
zone. The range of values that can be entered is 0 to 99% for the minimum value and 1
to 100% for the maximum value.
Trip 1 and Trip 2
Click the value box and enter the position of the trip line within the scale range.
When you enter a value, the check box turns blue. If you do not wish to use the trip line,
clear the check box.
Blue: Enable.
Gray: Disabled.
Note
Trip line 1 and 2 are displayed in red and blue, respectively.
Color
You can specify the waveform display color.

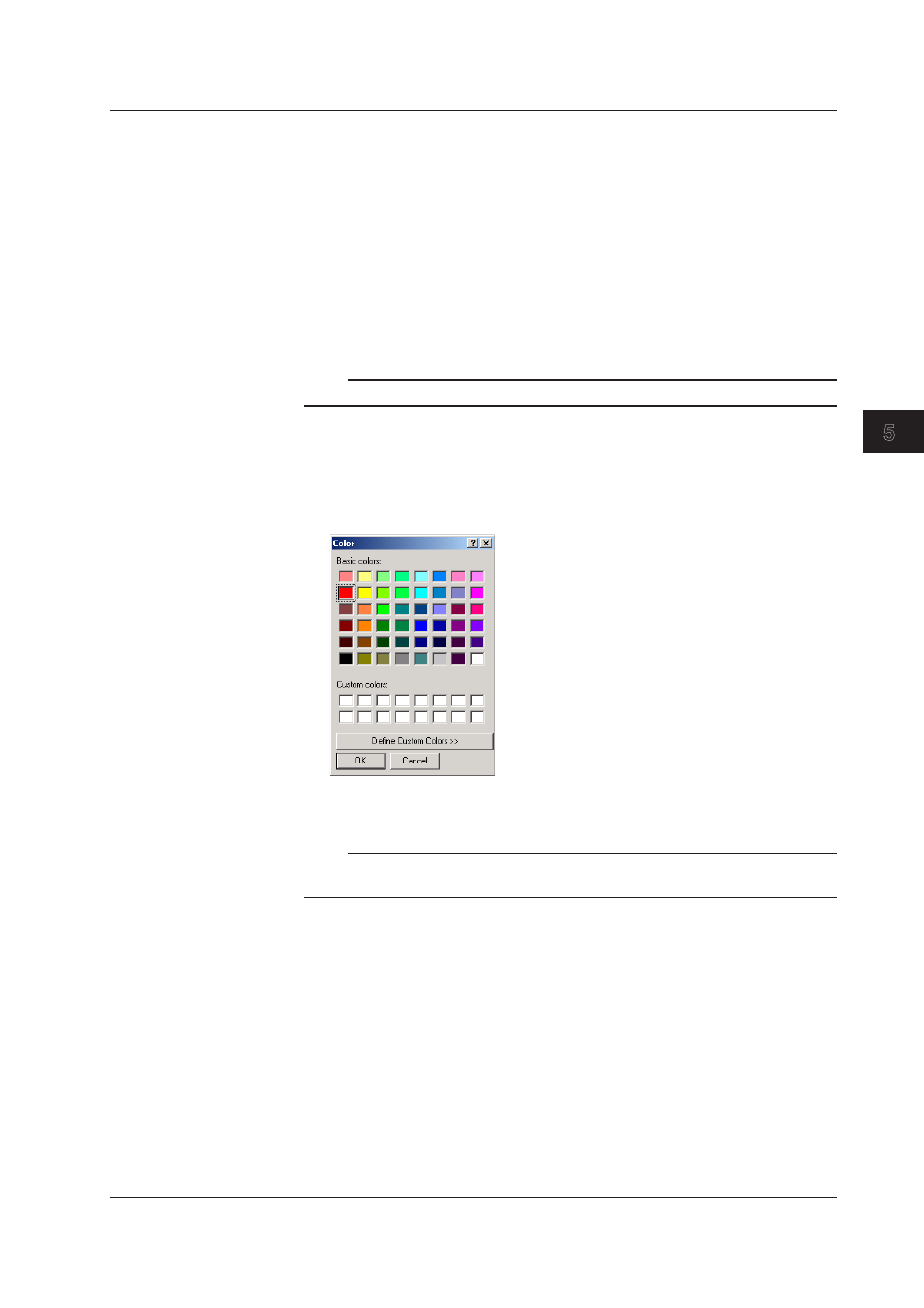

1.
Click a Color box.
The Color dialog box opens.
2.
Click a color to select it. The Color dialog box closes.
Note
To create a new color, click Define Custom Colors. Use the palette that appears to create the
new color.
5.2 Setting the Display Conditions
