IM 11M12D01-01E 2-28

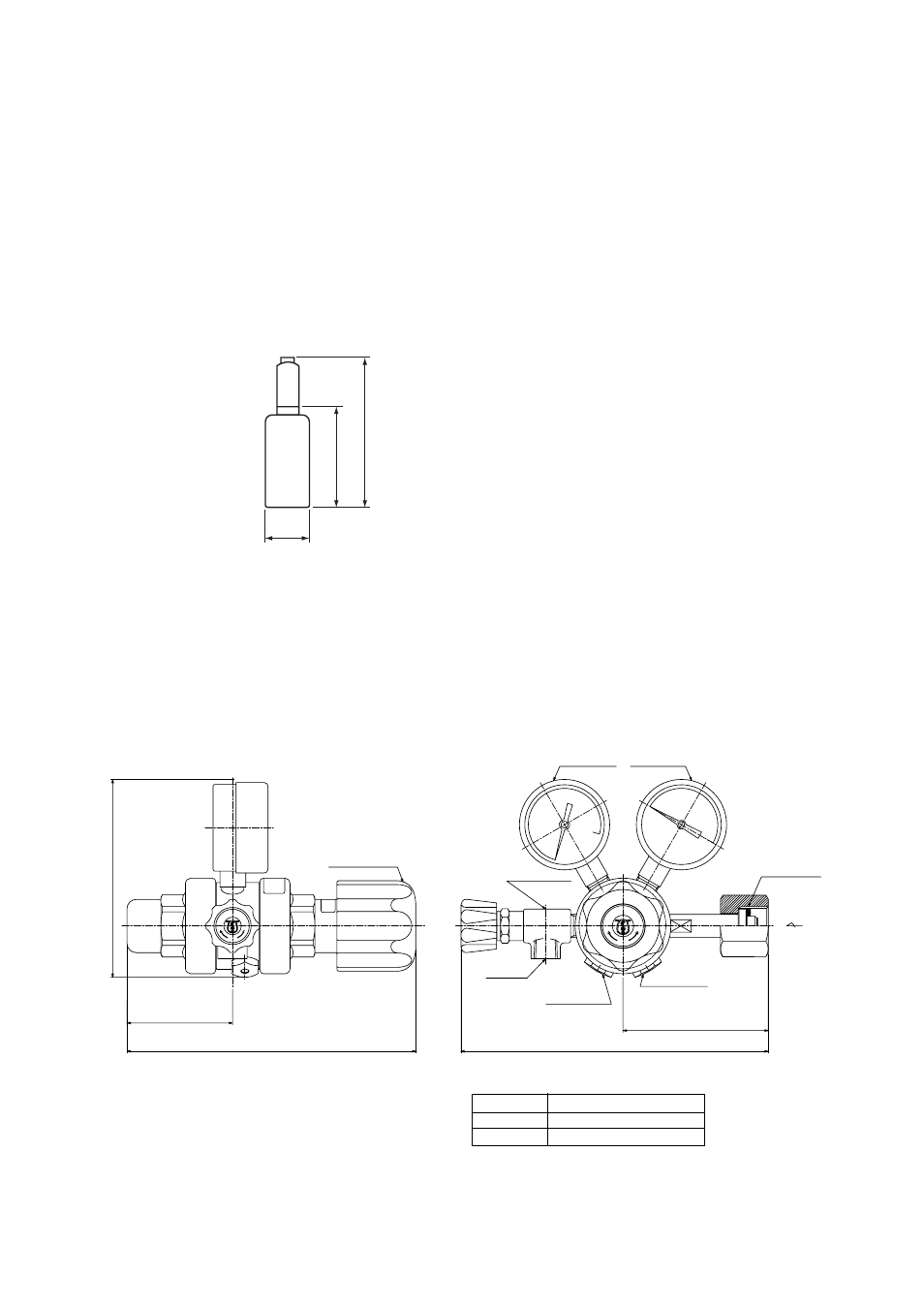

2.6.7 Zero Gas Cylinder (Part No. G7001ZC)
The gas from this cylinder is used as the calibration zero gas and detector purge gas.
Standard Specifications
Capacity: 3.4 l
Filled pressure: 9.8 to 12 MPa G
Composition: 0.95 to 1.0 vol% O
2
in N
2
(Note) Export of such high pressure filled gas cylinder to most countries is prohibited
or restricted.
485
325
л 140
Unit : mm
F213E.EPS
Weight : Approx. 6 kg
2.6.8 Cylinder Regulator Valve (Part No. G7013XF or G7014XF)
This regulator valve is used with the zero gas cylinders.
Standard Specifications
Pressure gauge: Primary 0 to 25 àa G, Secondary 0 to 0.5 MPa G
Connection: Inlet W22 14 threads, right hand screw Outlet Rc1/4 or 1/4NPT(F)
Material: Brass body
´ J
HI
H
O
C A
K
A
T
Regulator handle W22 (Right-
handed screw)
Stop valve
Approx. 174
Appro
x.112
IN HI
H AC
A
K
T
´ J
O
Outlet ء
Part No.
G7013XF
G7014XF
ء Outlet
Rc1/4
1/4 NPT female screw
Secondary
pressure gauge
0.5 MPaG
Primary
pressure gauge
25 MPaG
Secondary
safety valve
Primary
safety valve
Approx. 82
Approx. 59
Approx. 163
