IM 11M12D01-01E 10-17
10. Other Functions
F10.18E.EPS
Enter
21.00%
Ch2
1min./div.
0.98%
9.05 %O2 CHK. TIME
Manual ind. check
F10.19E.EPS
Enter
21.00%
Ch2
1min./div.
0.98%
20.4 %O2 HOLD TIME
Manual ind. check

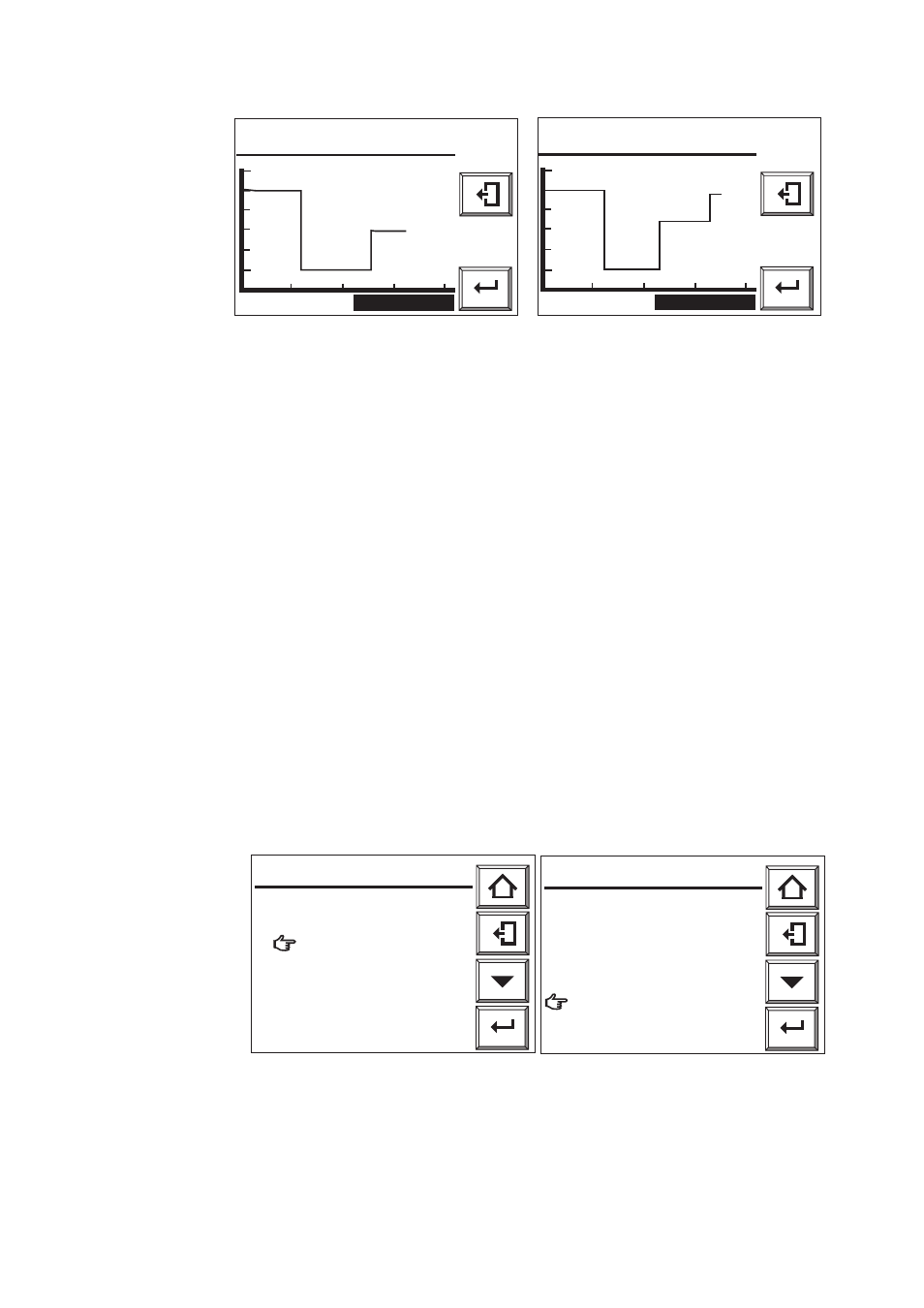

Fig.10.18 Third Gas Indication Check Fig. 10.19 Hold Time
10.4.5.2 Executing Semi-Auto Indication Check
Semi-automatic indication check is started either from the display or by external
contacts. When started from the display, only the channel selected on the display is
checked. When started by an external contact, all working channels can be checked one
channel after another. Assuming that [Span-Zero-Third] is set to points on the Indication
check setup display, the procedure is described below.
When started from the display
1) From the basic panel display, touch the Setup key to display the [Execution/Setup].
Select [Indication check].
2) Select [Semi-auto ind. check]. The channel select display of Fig. 10.20 is displayed.
3) Select the channel to perform indication check. The screen of Fig. 10.21 is displayed.
4) When you select [Start ind. check] the [Semi-auto ind. chk] trend graph of Fig 10.22
is displayed, and Span indication check begins.
5) When the preset check time (same as calibration time) has elapsed, Span indication
check ends and Zero indication check begins. Likewise, when the preset check time
has elapsed, Zero indication check ends, and third gas check begins.
6) After check time (calibration time) ends, stabilization time begins. After the preset
stabilization time, the instrument reverts to measurement mode.
7) Touch the Reject key to abort indication check. If you abort Span or Zero or third gas
indication check then check time is skipped and stabilization time starts. If you touch
the Reject key again then stabilization time is also skipped.
Enter
Semi-auto ind. check
Ch1
᭜
Ch2
᭜
Ch3
᭜
Ch4
᭜
Ch5
᭜
Ch6
᭜
Ch7
᭜
Ch8
F10.20E.EPS
Select ind. check channel
Enter
F73E.EPS
Ch1 Semi-auto ind. chk
Check settings
Span gas conc: 2 1 . 0 0 %
Zero gas conc: 0 . 9 8 %
Check time: 2 min 0 0 s
Points: Span-Zero-Third
Go to setup to change value.
Start calibration
᭜
Cancel calibration
Fig. 10.20 Channel Select Display Fig. 10.21 Indication Check Start
