Err2, 4 display functions – Yokogawa Multi Channel Oxygen Analyzer System ZR22/AV550G User Manual
Page 105

IM 11M12D01-01E
6-7
6. Components
6.2.2.4 Display Functions
1) Basic panel display (Displays measured oxygen concentrations, and cell temperatures during warm-up
period.)
The basic panel display consists of a multi-channel display and a single-channel display.
The multi-channel display screen shows cell temperatures during warm-up period and
oxygen concentrations afterward. The single-channel display screen shows the data of
the selected channel — the cell temperature or oxygen concentration and average
concentrations of each group. If an error or alarm occurs, a relevant icon will be flashing
in its display area. If an error and an alarm occurs at the same time, the error icon
display takes precedence. For details on errors and alarms, refer to Chapter 12, Trouble-
shooting
Tag:
Ch1
21.0
%
Ch2
21.0
%
Ch3
21.0
%
Ch4
21.0
%
Ch5
21.0
%
Ch6
21.0
%
Ch7
21.0
%
Ch8
20.7
%
Tag:
Ch1
21.0
%
O
2
Ave-a 21.0 %O2
Ave-b 21.0 %O2
Ave-c 21.0 %O2
Tag:
Ch1
Err2
Ch2
0.96
%
Ch3
0.96
%
Ch4
0.96
%
Ch5
0.96
%
Ch6
Err1
Ch7
0.96
%
Ch8
0.94
%
Hold
Tag:
Ch1
Err2
Ave-a 0.96 %O2
Ave-b 0.95 %O2
Hold
Ave-c 0.96 %O2

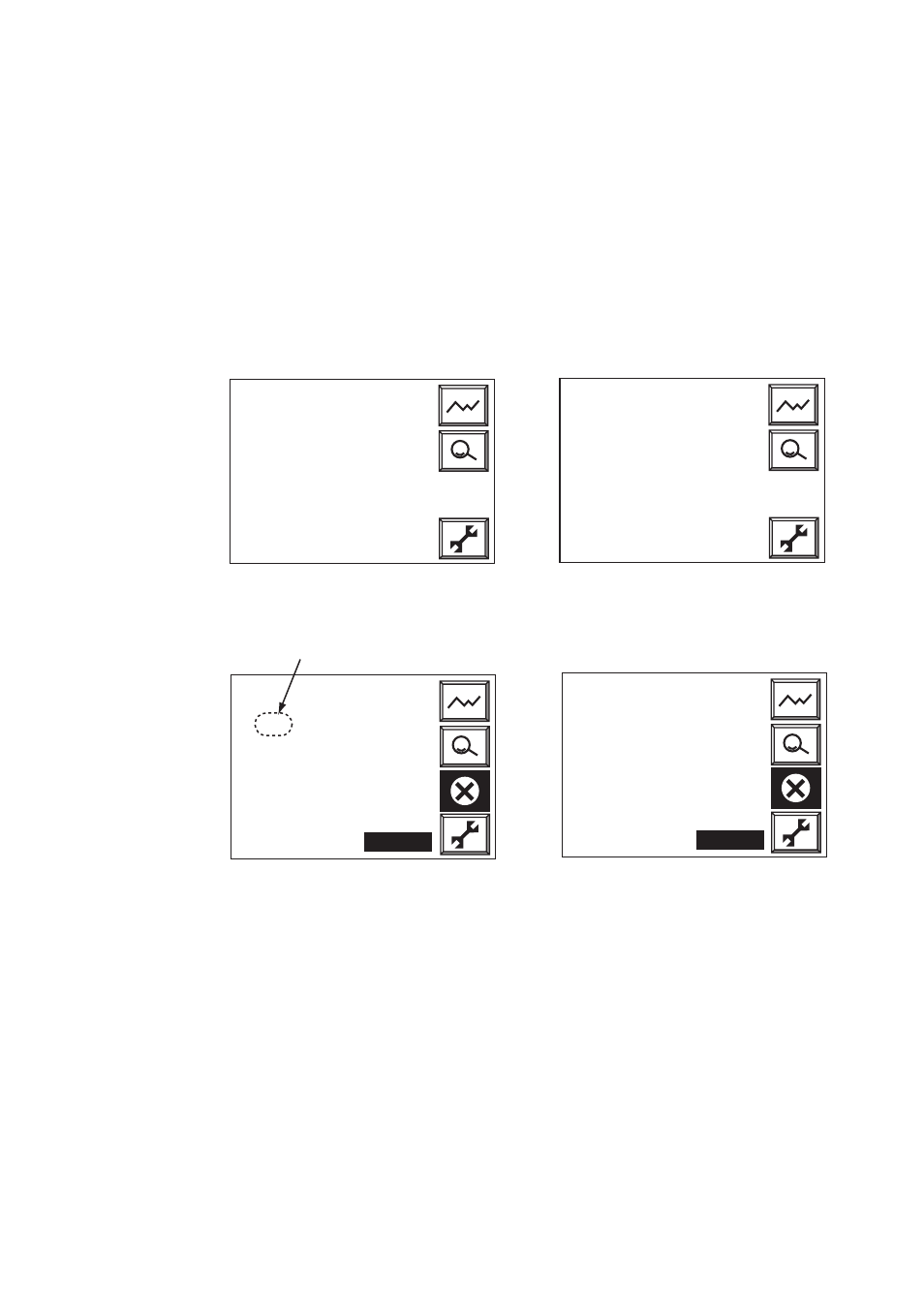

Multi-channel display Showing
Oxygen Concentration
Single-channel Display Showing
Oxygen Concentration
Red error code is indicated on a relevant
channel.
Multi-channel display When Error Occurs
Single-channel Display When Error Occurs
Figure 6.6 Basic Panel Displays
