8. Detailed Data Setting
8.5 Other Settings
8.5.1 Date and Time
Here we explain how to set date and time. Date and time setting are used for Auto
Calibration and Auto Indication Check, also Auto Blowback Start time.
1) From the basic panel display if you touch the Setup key, the [Execution/Setup]
display appears.
2) Select [Commissioning] and the Commissioning display appears.
3) Select [Others] and the display of Fig 8.17 appears.
4) Select [Clock] and the display of Fig 8.18 appears.
5) Select [Set date] and the numerical entry display appears. To enter June 21. 2004 ,
enter [210604]. Touch the Enter key and you revert to the display of Fig 8.17.
6) Select [Set time]. Enter the time in 24-hour format. To set 2:30 pm, enter [1430] on
the numerical display and touch enter. Touch the Enter key. The clock starts from
00 seconds.
Enter
F8.17E.EPS
Clock
᭜ Averaging
᭜ Fuel setup
᭜ Purging
᭜ Unit setup
᭜ Asymmetry alarm
᭜ Passwords
᭜ Defaults
Others

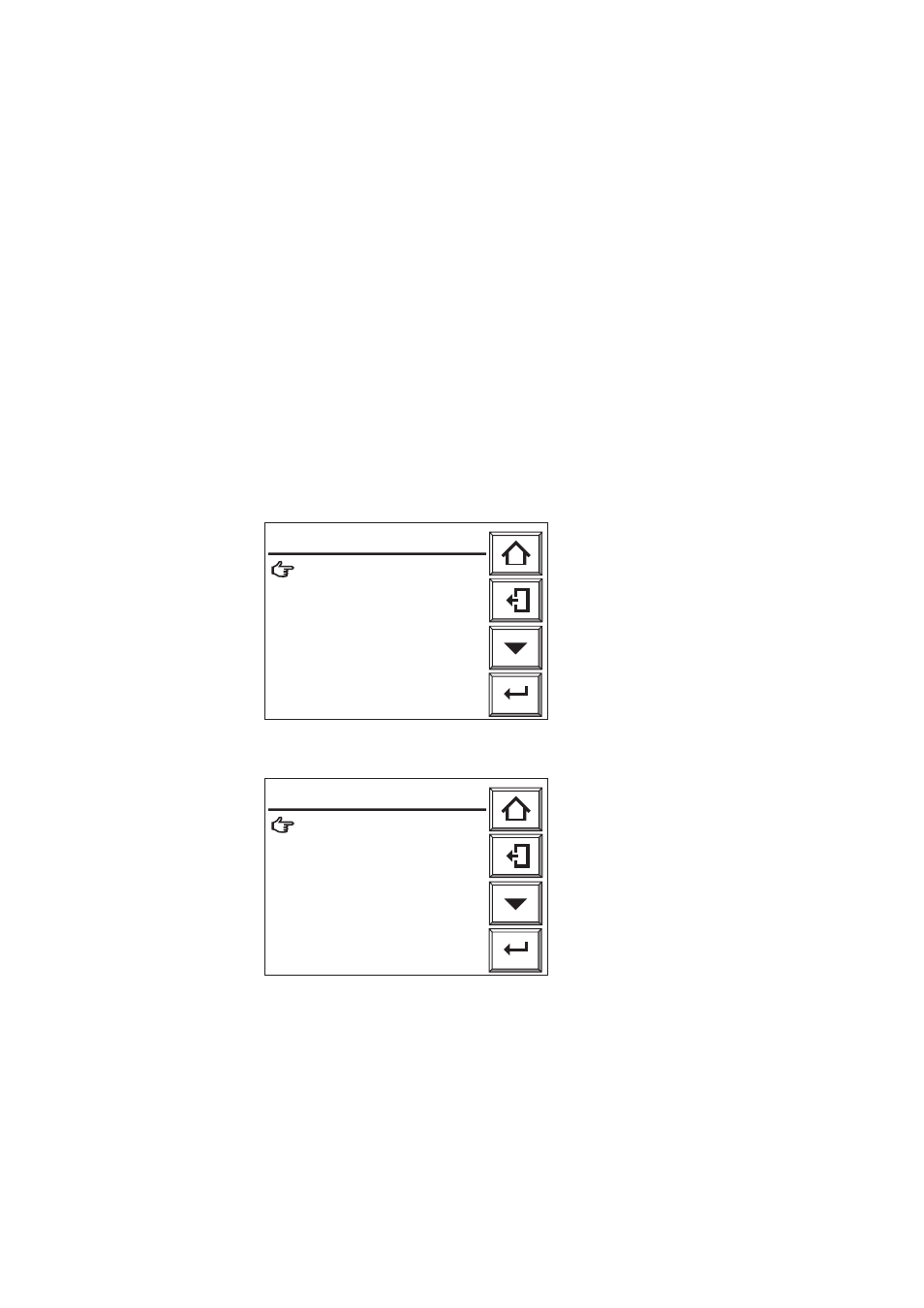

Fig. 8.17 Others setting display
Enter
F47E.EPS
Set date: 2 1 / 0 6 / 0 4
᭜
Set time: 1 6 : 4 4
2 1 J un. 2 0 0 4
1 6 : 4 4 : 4 5
Clock
Fig. 8.18. Day and Time setting
