Page 109

IM 11M12D01-01E
6-11
6. Components
To enter a password (in combination with text data, numeric values and codes), the
alphabetic character entry panel display first appears. If you press any numeral key (0 to
9), the current display then changes to the numeric-value entry panel display, enabling
you to enter numeric values. If you press the “other” key, the current display then
changes to the code-entry display, enabling you to enter codes. These displays alternate
between the three. Figure 6.17 shows the relationship between these three displays.
Three alphabetic characters and three codes are assigned for each individual switch. If
the alphabetic character key is pressed and held, three characters appear in turn. Move
the cursor to the desired character and release the key to enter it. If an incorrect charac-
ter is entered, move the cursor to re-enter the characters. The following shows an
example of entering “abc%123.”
Operation
Display
Press the [ABC] key once.
A
Ϫ
Press and hold the [ABC] key.
A A
B C
Release the [ABC] key when the character B
AB
Ϫ
appears in the cursor position.
Enter the character C in the same manner
ABC
Ϫ
as above.
Press the [other] key.
Press and hold the [$%&] key and enter “%.”
ABC%
Ϫ
Then press the [0-9] key.
Enter the numeric characters 1, 2 and 3 in turn.
ABC%123
Ϫ
Press the [Enter] key to complete the entry.
Siki7.4E
F7.5E.EPS
Enter
other
Enter your password
A
B C
D
E F
G
H I
J
K L
M
N O
P
Q R
S
T U
V
W X
Y
Z @
0-9
Space
- $
Enter
0
1
4
7
2
3
5
6
8
9
A-Z
other
Enter your password
Enter
0-9
Enter your password
!
#
$
% &
'
( )
*
+ ,
–
. /
:
; <
>
? @
[
\ ]
^
_ `
A-Z
{
[ }

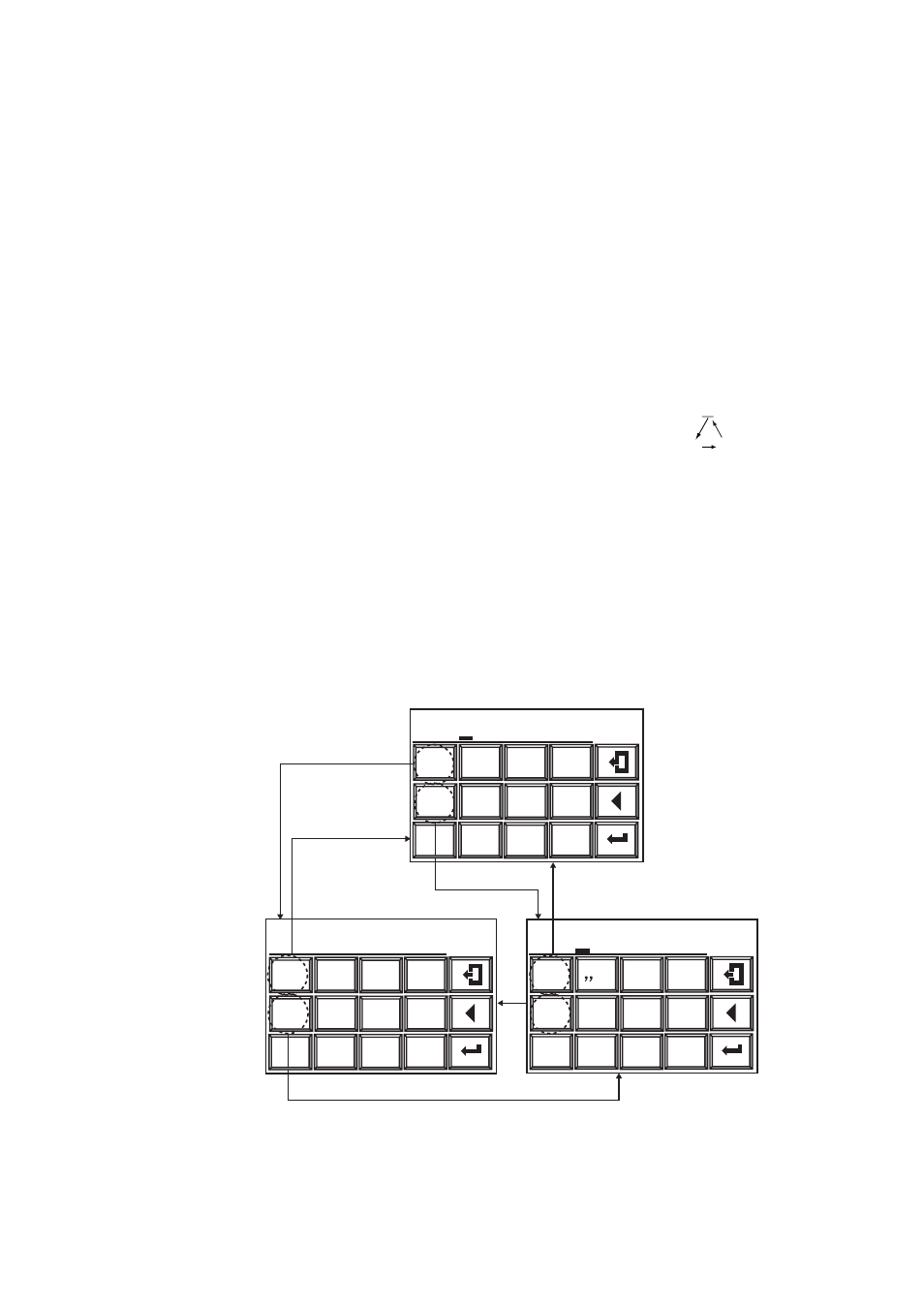

Figure 6.17 Text Entry Display
