Yokogawa Multi Channel Oxygen Analyzer System ZR22/AV550G - Manual (Page 176)

IM 11M12D01-01E 10-14
F10.12E.eps
Indication chk start in
Ch1 Span check
Ch1 Zero check
Check time
Check time
Check time
Ch1 3rd gas check
Ch1 output hold
Ch2 Span check
Ch2 Zero check
Ch2 3rd gas check
Ch2 output hold
Average output
SV-Ch1 contact
SV-Ch2 contact
SV-Com contact
3rd gas contact
Ind. check start
Off On Off On
Span gas ON Zero gas ON Span gas ON Zero gas ON
Off On
Off On
Ch1 removed from average Ch1 removed from average
Hold time
Ch. 2 Output Hold
Check time
Check time
Check time
Hold time
Ch. 1 Output Hold

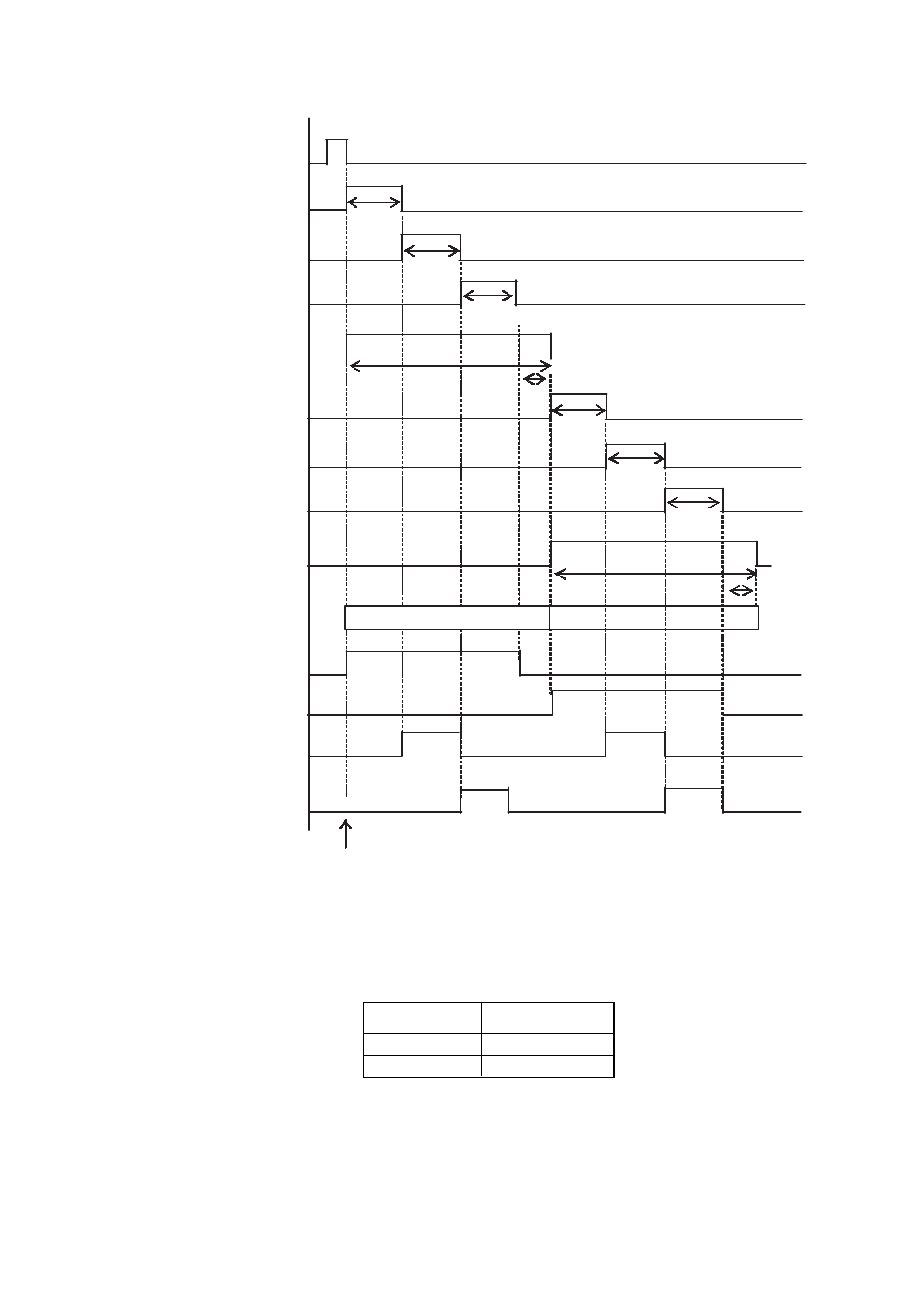

Fig. 10.12 Indication Check timing
Indication check parameters are set as shown in Table 10.4 prior factory shipment or
after data initialization.
Table 10.4 Indication Check Default Setting
T10.4E.eps
Item Default
Mode Manual
Points Span-Zero
