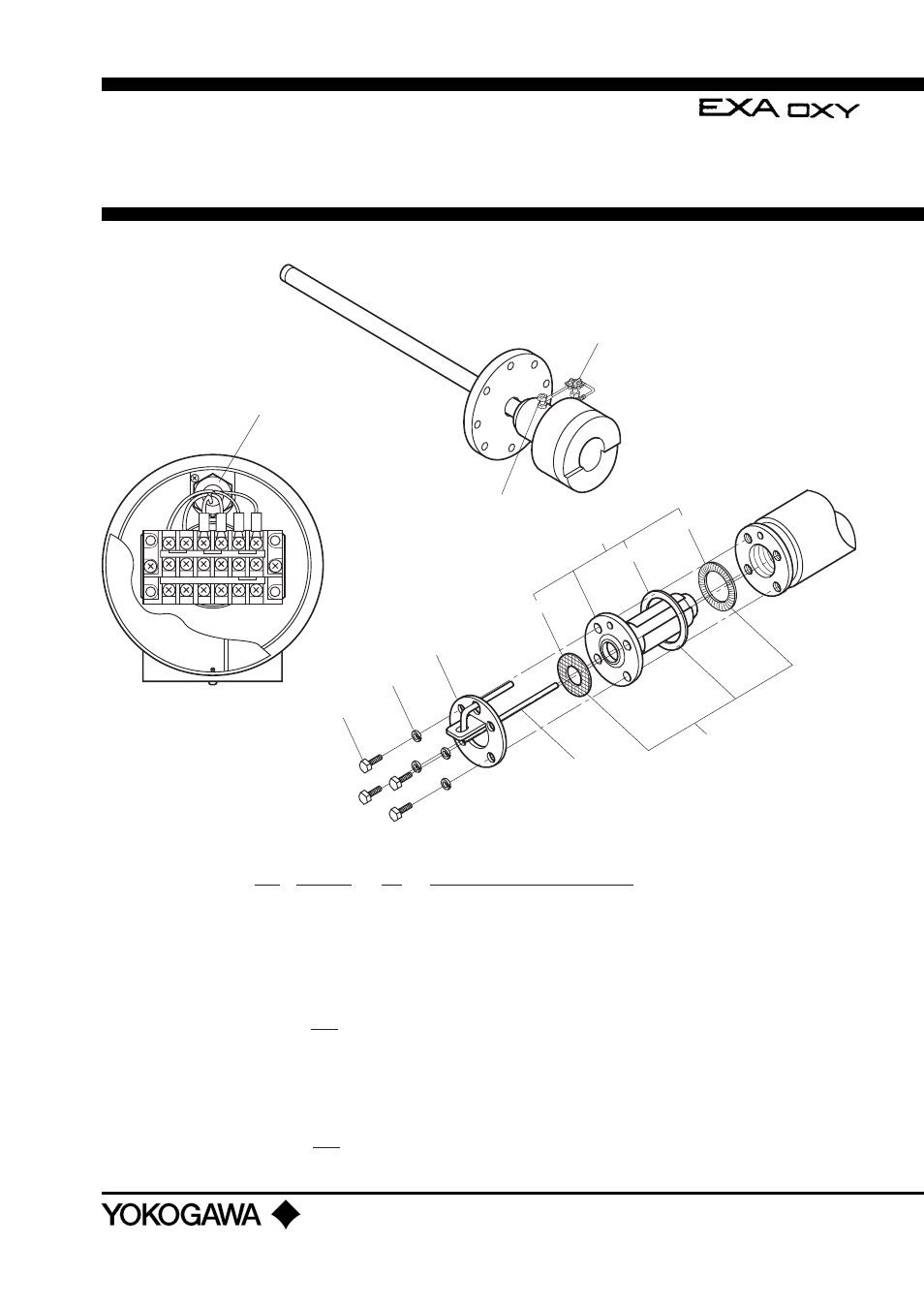

Model ZO21DW-L
Zirconia Oxygen Analyzer Detector
(Pressure balance type)
CMPL 11M06B02-01E
3rd Edition : Sep. 2005 (YK)
7
6
10
2
3
4
5
8
9
1
13
11,12
Item Part No.
Qty Description
1
E7097BN
1
Cold Junction Assembly
2
G7109YC
4
Bolt (M5x12, SUS304 Stainless steel)
3
E7042DW
4
Washer
4
E7042BR
1
Plate
5
E7042UD
1
Cell Assembly
6
E7042AY
1 Filter
7
G7048XL
1 Metal O-Ring
8
E7042BS
1 Contact
9
1 Cell Assembly
10
K9470BM
1
Pipe
K9473AN
1
Pipe for option code "/C"
11
G7011XH
1
Needle Valve (for ZO21DW-L ...-J, -E/SV)
G7013XH
1
Needle Valve (for ZO21DW-L ...-A/SV)
E7042VR
1
Check Valve (for ZO21DW-L ...-J, -E/CV)
E7042VV
1
Check Valve (for ZO21DW-L ...-A/CV)
12
1
Nipple (for ZO21DW-L ...-J, -E/SV)
G7248XA
1
Nipple (for ZO21DW-L ...-A/SV)
13
G7007XH
1
Needle Valve
