Watlow EZ-ZONE ® RME Module • 28 • Chapter 2 Install and Wire
- A
+ B
com
- A
+ B
common
power
-
A
+
B
common
power
power
power
EZ-ZONE PM
EZ-ZONE ST
ST_ _ - (B or F) _ M _ -_ _ _ _
98 99 CF CD CE B5 D6 D5
Power
Supply
fuse
EZ-ZONE RM
Slot C
power
- A
+ B
common
98
99
CF
CD
CE
B5
D6
D5
98
99
CF
CD
CE
RUI/Gateway
EZKB-_ A _ _- _ _ _ _
98 99 CF CD CE CZ CX CY

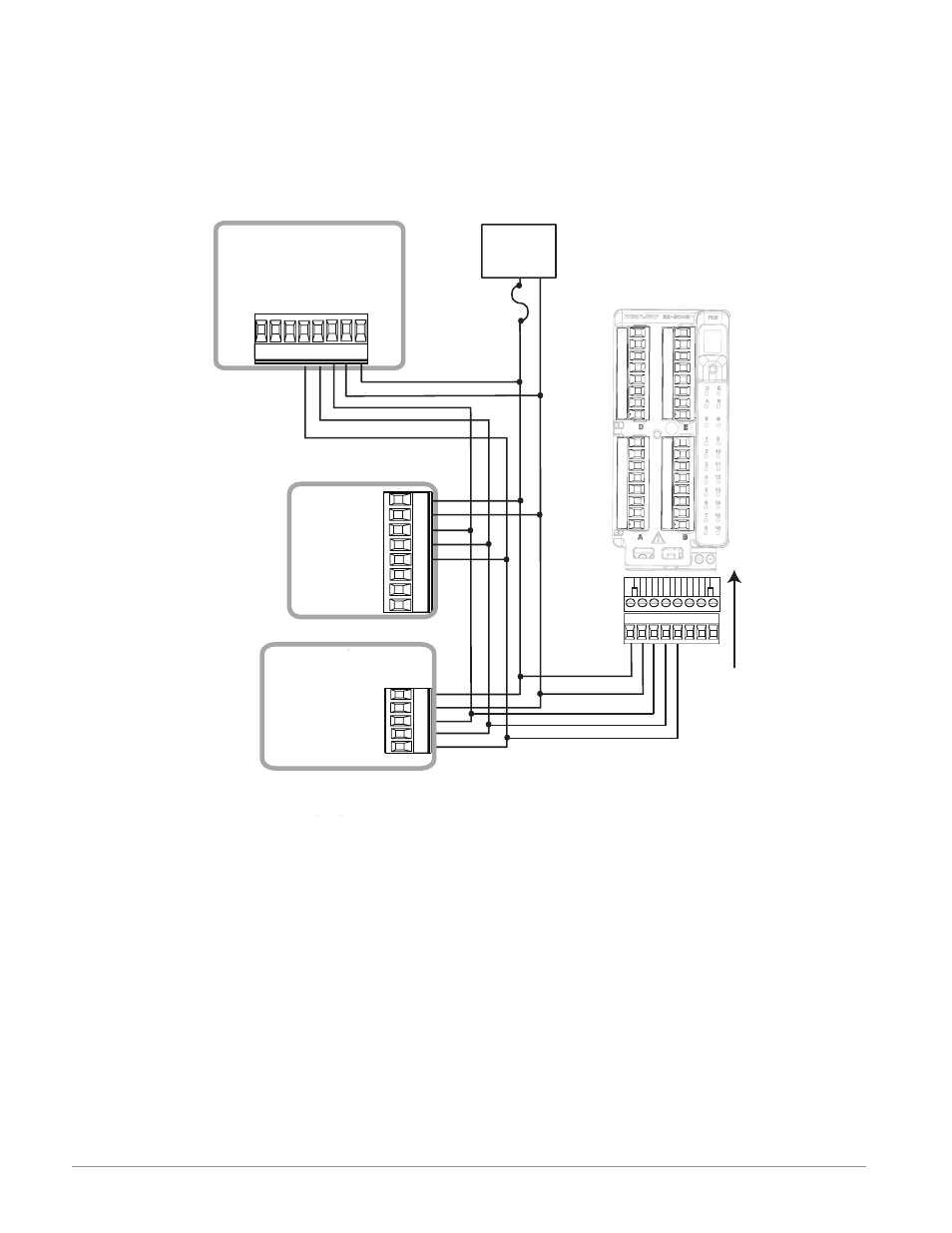

Wiring a Serial EIA-485 Network
Do not route network wires with power wires. Con-
nect network wires in daisy-chain fashion when con-
necting multiple devices in a network.
A termination resistor may be required. Place a
120 Ω resistor across T+/R+ and T-/R- of the last con-
troller on a on a network.
Note:
Termination resistors when used, require a termina-
tion resistor at both ends of the network.
A network using Watlow's Standard Bus and an RUI/Gateway .
