Watlow EZ-ZONE ® RME Module • 12 • Chapter 2 Install and Wire

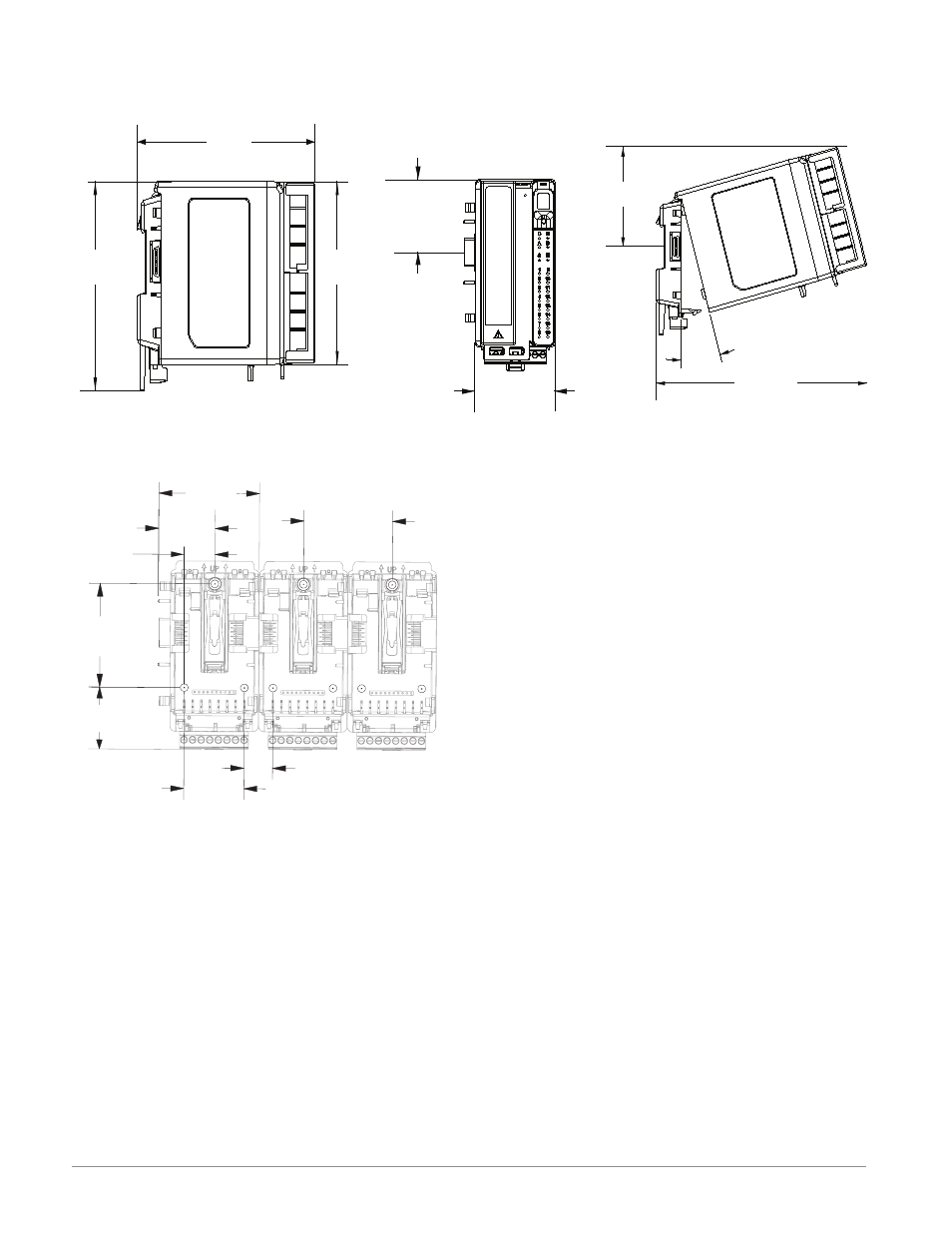

Dimensions
(2.03 in)
51.56 mm
(0.66 in)
16.76 mm
(2.31 in)
58.67 mm
(0.69 in)
17.53 mm
(2.38 in)
60.45 mm
(1.41 in)
35.81 mm
(1.38 in)
35.05 mm
(1.29 in)
32.77 mm
Chassis Mount Front View (Module Removed) - Screw Connection Pattern
Recommended chassis mount hardware:
1. #8 screw, 3/4" long
2. Torque to 10 -15 in-lb
3. No washers of any kind
Module Removal Clearance Ring Terminal Connectors
The view above is representative of the modular backplane without the module.
15°
164.9 mm
( 6.5 in )
116.08 mm
( 4.57 in )
101.60 mm
( 4.00 in )
44.45 mm
( 1.75 in )
80.54 mm
( 3.17 in )
184.58 mm
( 7.27 in )
Module Removal Displacement
51.56 mm
( 2.03 in )
