Watlow EZ-ZONE ® RME Module • 98 • Chapter 6 Features

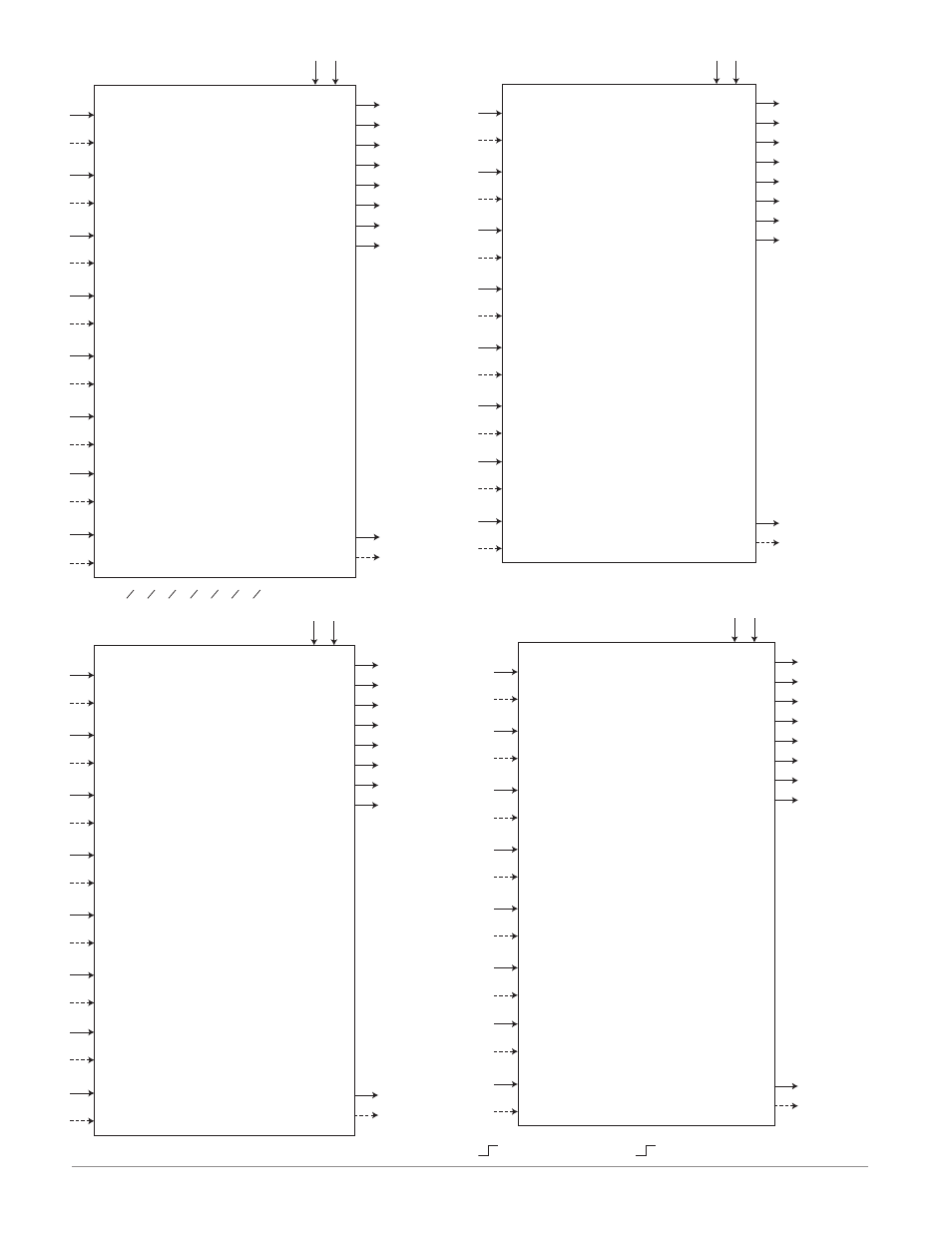

Logic
Not Equal
If A = B = C = D = E = F = G = H then ON
Error
Source Value D
Source Value F
Source Value E
Source Value H
Output Value
Source Value G
Source Function A
Source Instance A
Source Zone A
Source Error A
Source Function B
Source Instance B
Source Zone B
Source Error B
Source Function C
Source Instance C
Source Zone C
Source Error C
Source Function D
Source Instance D
Source Zone D
Source Error D
Source Function E
Source Instance E
Source Zone E
Source Error E
Source Function F
Source Instance F
Source Zone F
Source Error F
Source Function G
Source Instance G
Source Zone G
Source Error G
Source Function H
Source Instance H
Source Zone H
Source Error H
Function Error Handling
Source Value A
Source Value B
Source Value C
If A = B = C = D = E = F = G = H then ON
Logic
Equal
Error
Source Value D
Source Value F
Source Value E
Source Value H
Output Value
Source Value G
Source Function A
Source Instance A
Source Zone A
Source Error A
Source Function B
Source Instance B
Source Zone B
Source Error B
Source Function C
Source Instance C
Source Zone C
Source Error C
Source Function D
Source Instance D
Source Zone D
Source Error D
Source Function E
Source Instance E
Source Zone E
Source Error E
Source Function F
Source Instance F
Source Zone F
Source Error F
Source Function G
Source Instance G
Source Zone G
Source Error G
Source Function H
Source Instance H
Source Zone H
Source Error H
Function Error Handling
Source Value A
Source Value B
Source Value C
Logic
Latch
Output Value follows A, unless B = ON
Latch Output while B = ON
Error
Source Value D
Source Value F
Source Value E
Source Value H
Output Value
Source Value G
Source Function A
Source Instance A
Source Zone A
Source Error A
Source Function B
Source Instance B
Source Zone B
Source Error B
Source Function C
Source Instance C
Source Zone C
Source Error C
Source Function D
Source Instance D
Source Zone D
Source Error D
Source Function E
Source Instance E
Source Zone E
Source Error E
Source Function F
Source Instance F
Source Zone F
Source Error F
Source Function G
Source Instance G
Source Zone G
Source Error G
Source Function H
Source Instance H
Source Zone H
Source Error H
Function Error Handling
Source Value A
Source Value B
Source Value C
Logic
RS Flip Flop
A Sets Output Value ON, B Resets Output Value OFF
Error
Source Value D
Source Value F
Source Value E
Source Value H
Output Value
Source Value G
Source Function A
Source Instance A
Source Zone A
Source Error A
Source Function B
Source Instance B
Source Zone B
Source Error B
Source Function C
Source Instance C
Source Zone C
Source Error C
Source Function D
Source Instance D
Source Zone D
Source Error D
Source Function E
Source Instance E
Source Zone E
Source Error E
Source Function F
Source Instance F
Source Zone F
Source Error F
Source Function G
Source Instance G
Source Zone G
Source Error G
Source Function H
Source Instance H
Source Zone H
Source Error H
Function Error Handling
Source Value A
Source Value B
Source Value C
