ZyWALL 5 User’s Guide
Chapter 2 Introducing the Web Configurator 61

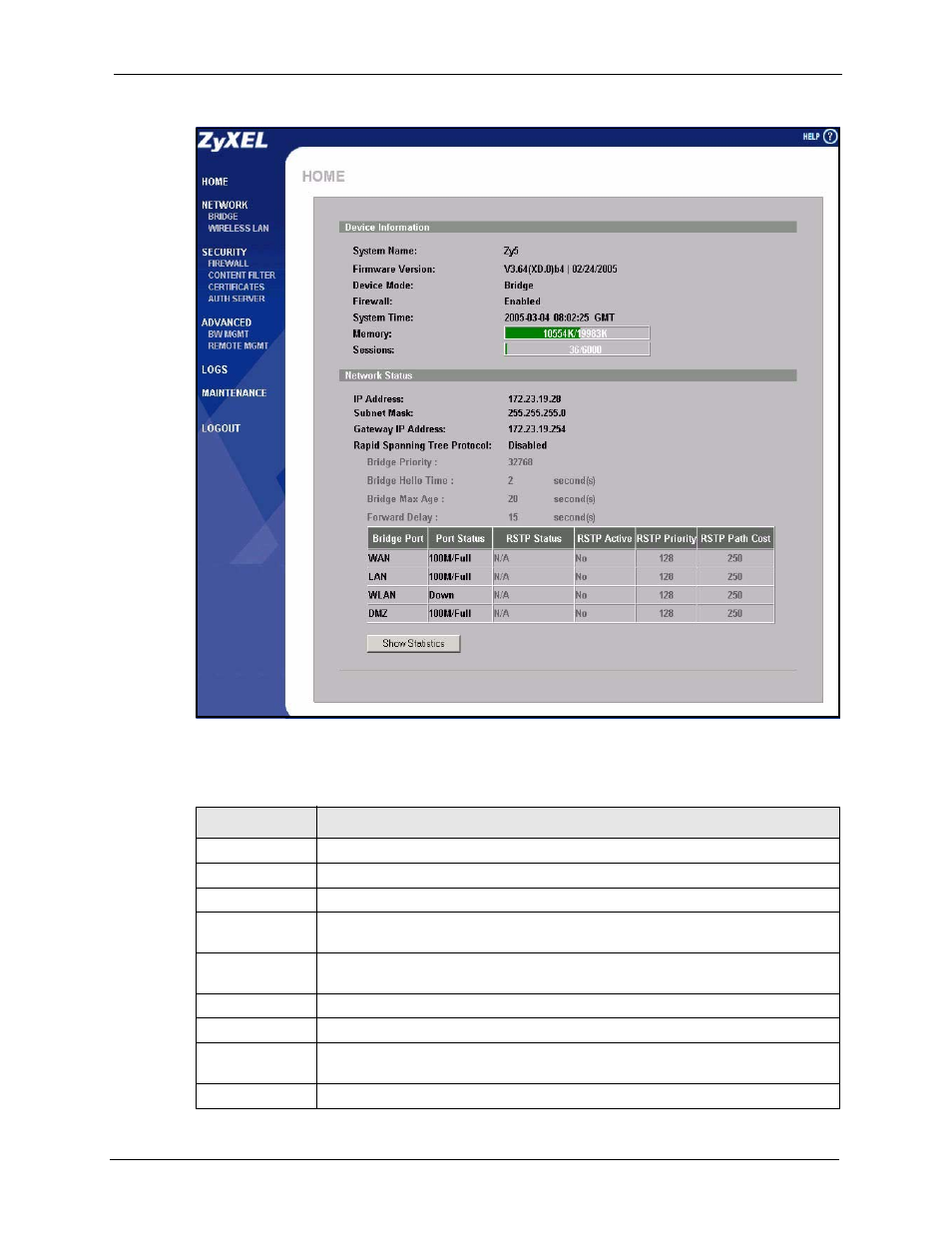

Figure 8 Web Configurator HOME Screen in Bridge Mode
The following table describes the labels not previously discussed ( Table 2 on page 59 ).
Table 3 Web Configurator HOME Screen in Bridge Mode
LABEL DESCRIPTION
Network Status
IP Address This is the IP address of your ZyWALL in dotted decimal notation.
Subnet Mask This is the IP subnet mask of the ZyWALL.
Gateway IP
Address
This is the gateway IP address.
Rapid Spanning
Tree Protocol
This shows whether RSTP (Rapid Spanning Tree Protocol) is active or not. The
following labels or values relative to RSTP do not apply when RSTP is disabled.
Bridge Priority This is the bridge priority of the ZyWALL.
Bridge Hello Time This is the interval of BPDUs ( Bridge Protocol Data Units ) from the root bridge.
Bridge Max Age This is the predefined interval that a bridge waits to get a Hello message (BPDU)
from the root bridge.
Forward Delay This is the forward delay interval.
