ZyWALL 5 User’s Guide
542 Appendix A Product Specifications

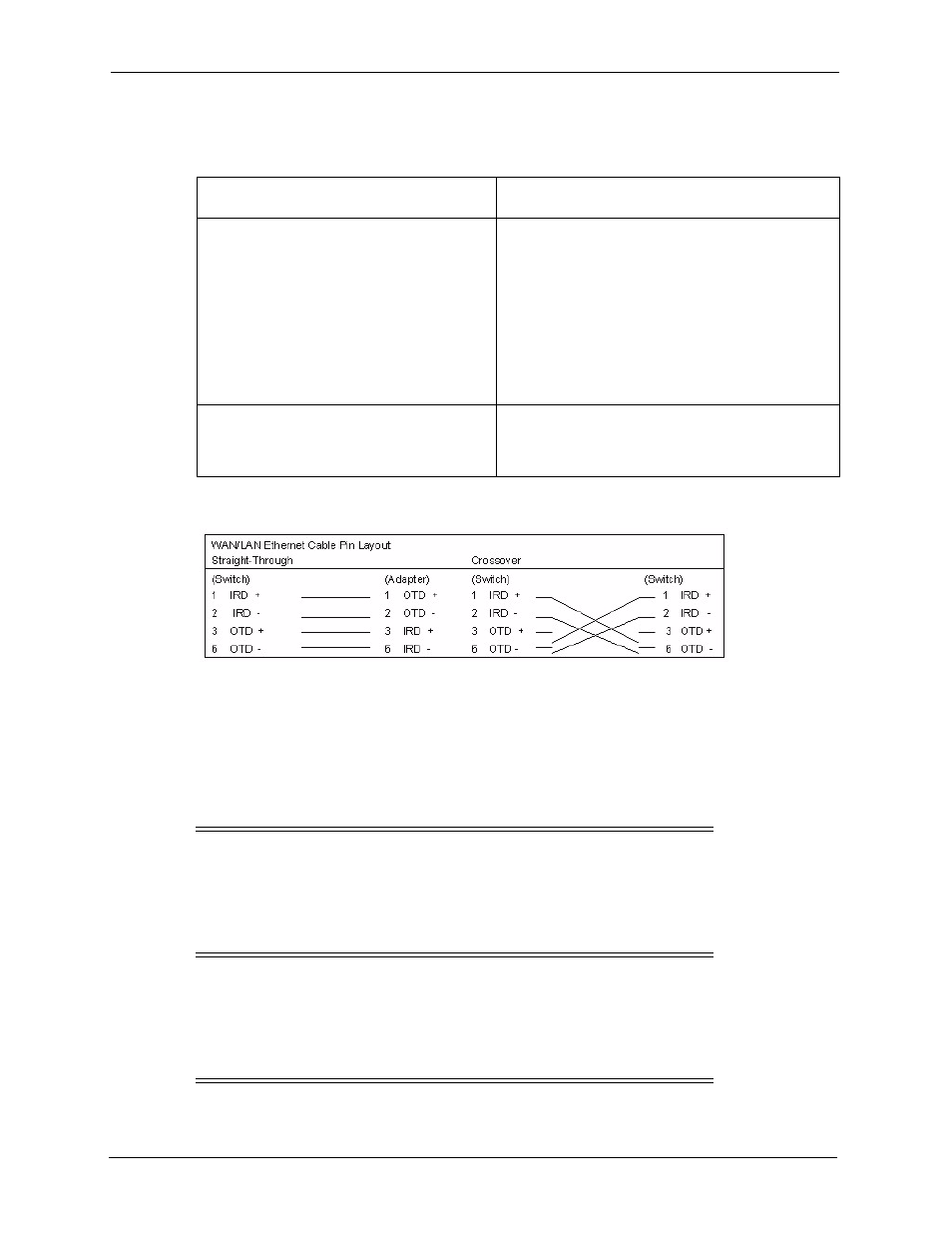

Figure 3 Ethernet Cable Pin Assignments
Power Adaptor Specifications
Table 6 Console/Dial Backup Port Pin Assignments
CONSOLE Port RS – 232 (Female) DB-9F DIAL BACKUP RS – 232 (Male) DB-9M (Not on all
models)
Pin 1 = NON
Pin 2 = DCE-TXD
Pin 3 = DCE –RXD
Pin 4 = DCE –DSR
Pin 5 = GND
Pin 6 = DCE –DTR
Pin 7 = DCE –CTS
Pin 8 = DCE –RTS
PIN 9 = NON Pin 1 = NON
Pin 2 = DTE-RXD
Pin 3 = DTE-TXD
Pin 4 = DTE-DTR
Pin 5 = GND
Pin 6 = DTE-DSR
Pin 7 = DTE-RTS
Pin 8 = DTE-CTS
PIN 9 = NON.
The CON/AUX port also has these pin
assignments. The CON/AUX switch changes
the setting in the firmware only and does not
change the CON/AUX port’s pin assignments.
ZyWALLs with a CON/AUX port also have a 9-pin
adaptor for the console cable with these pin
assignments on the male end.
Table 7 North American AC Power Adaptor Specifications
AC Power Adapter model AD48-1201200DUY
Input power: AC120Volts/60Hz/0.25A
Output power: DC12Volts/1.2A
Power consumption: 10 W
Plug: North American standards
Safety standards: UL, CUL (UL 1950, CSA C22.2 No.234-M90)
AC Power Adapter model AD48-1201200DUY
Input power: AC120Volts/60Hz
Output power: DC12Volts/1.2A
Power consumption: 9 W
Plug: North American standards
Safety standards: UL, CUL (UL1950, CSA C22.2 NO. 234-M90)
