Page 542
ZyWALL 5 User’s Guide
Appendix A Product Specifications
541

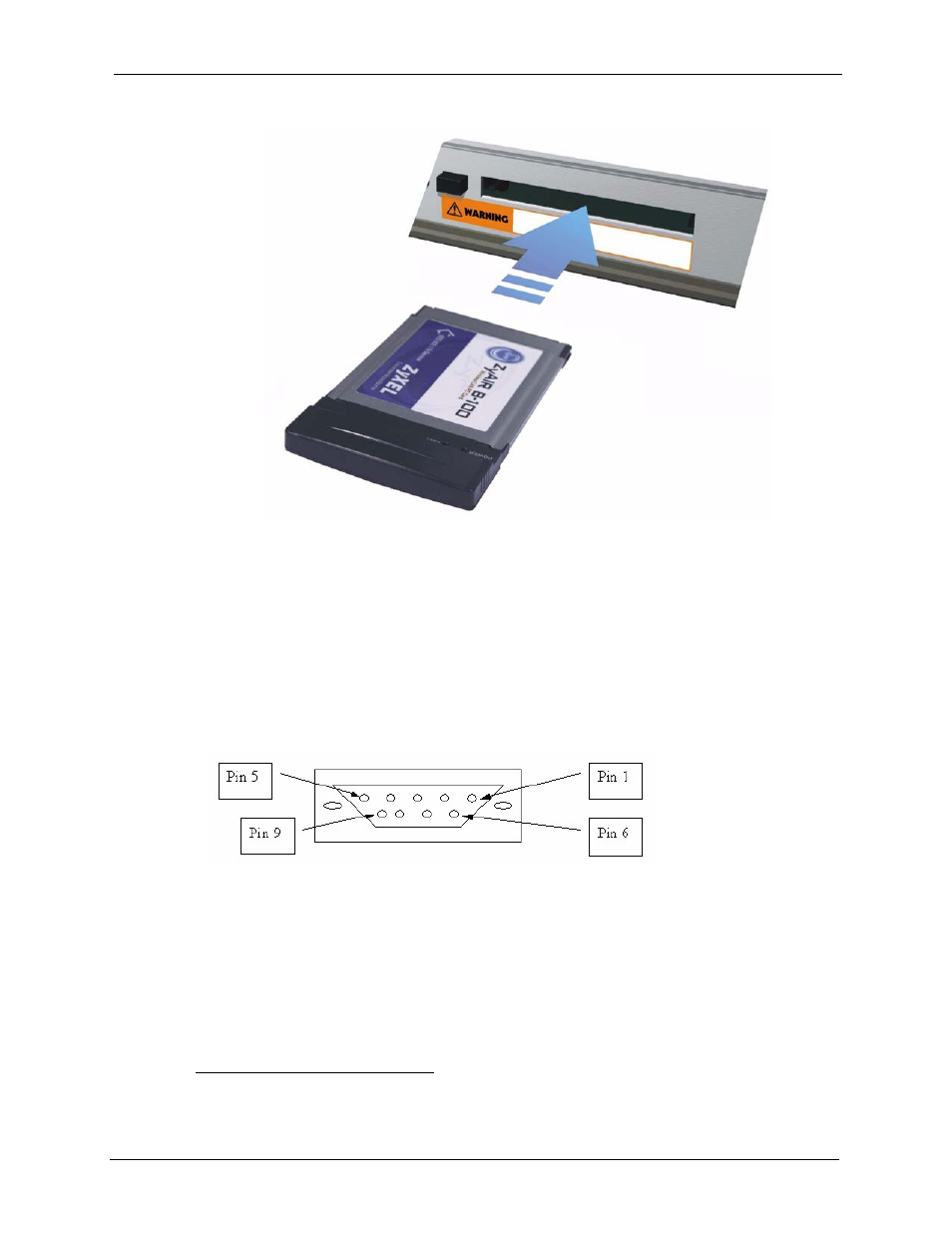

Figure 1 WLAN Card Installation
Cable Pin Assignments
In a serial communications connection, generally a computer is DTE (Data Terminal
Equipment) and a modem is DCE (Data Circuit-terminating Equipment). The ZyWALL is
DCE when you connect a computer to the console port. The ZyWALL is DTE when you
connect a modem to the dial backup port.
1
Figure 2 Console/Dial Backup Port Pin Layout
1. Pins 2,3 and 5 are used.
