ZyWALL 5 User’s Guide
316 Chapter 19 Bandwidth Management

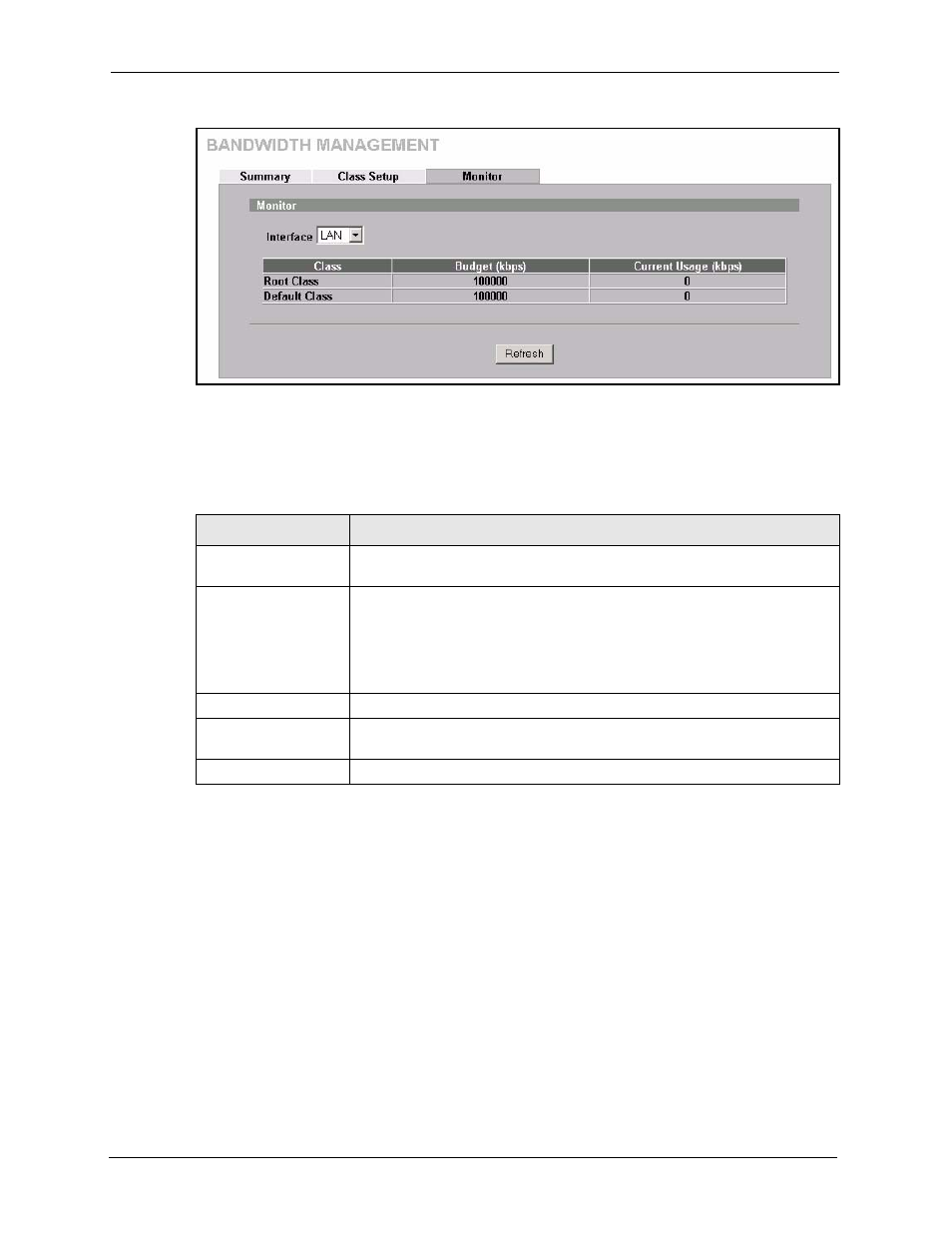

Figure 154 Bandwidth Manager Monitor
The following table describes the labels in this screen.
Table 111 Bandwidth Manager Monitor
LABEL DESCRIPTION
Interface Select an interface from the drop-down list box to view the bandwidth usage of
its bandwidth classes.
Class This field displays the name of the bandwidth class.
A Default Class automatically displays for all the bandwidth in the Root
Class that is not allocated to bandwidth classes. If you do not enable
maximize bandwidth usage on an interface, the ZyWALL uses the bandwidth
in this default class to send traffic that does not match any of the bandwidth
classes. a
a.If you allocate all the root class’s bandwidth to the bandwidth classes, the default class still displays a
budget of 2 kbps (the minimum amount of bandwidth that can be assigned to a bandwidth class).
Budget (kbps) This field displays the amount of bandwidth allocated to the bandwidth class.
Current Usage (kbps) This field displays the amount of bandwidth that each bandwidth class is
using.
Refresh Click Refresh to update the page.
