4 configuring wan setup, 1 ethernet encapsulation, Figure 44 wan: ethernet encapsulation – ZyXEL Communications ZyXEL ZyWALL 5 User Manual
Page 127
ZyWALL 5 User’s Guide
126
Chapter 7 WAN Screens
7.4 Configuring WAN Setup
To change your ZyWALL's WAN ISP, IP and MAC settings, click WAN, then the WAN tab.
The screen differs by the encapsulation.
Note: The warning message "Warning! No NAT rule configured in system" appears in
the status bar when NAT is set to use Full Feature address mapping rules, but
there are no NAT address mapping rules configured.
7.4.1 Ethernet Encapsulation
The screen shown next is for Ethernet encapsulation.

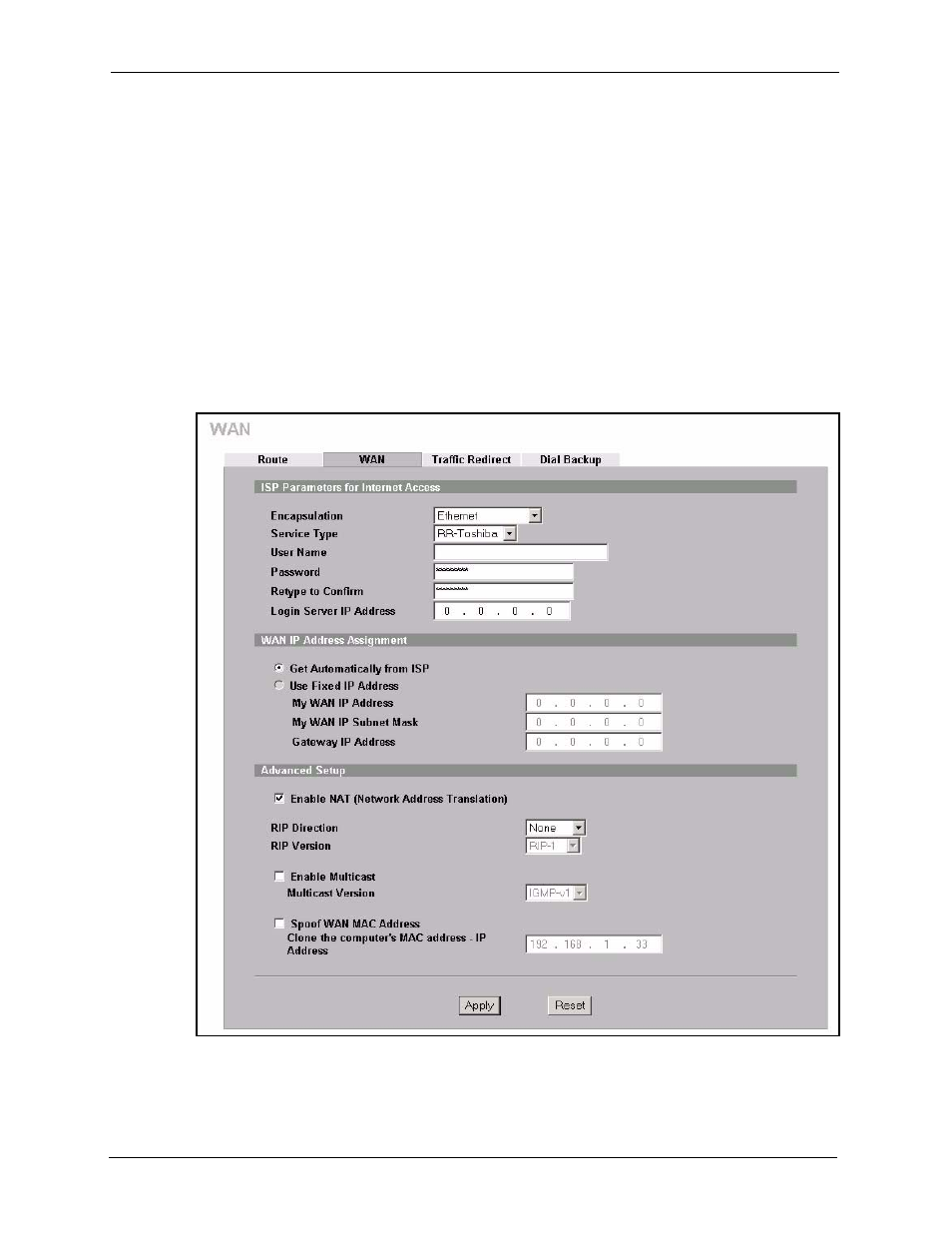

Figure 44 WAN: Ethernet Encapsulation
