ZyWALL 5 User’s Guide
Chapter 8 DMZ Screens 149
8.4 DMZ Public IP Address Example
The following figure shows a simple network setup with public IP addresses on the WAN and
DMZ and private IP addresses on the LAN. Lower case letters represent public IP addresses
(like a.b.c.d for example). The LAN port and connected computers (A through C) use private
IP addresses that are in one subnet. The DMZ port and connected servers (D through F) use
public IP addresses that are in another subnet. The public IP addresses of the DMZ and WAN
ports are in separate subnets.

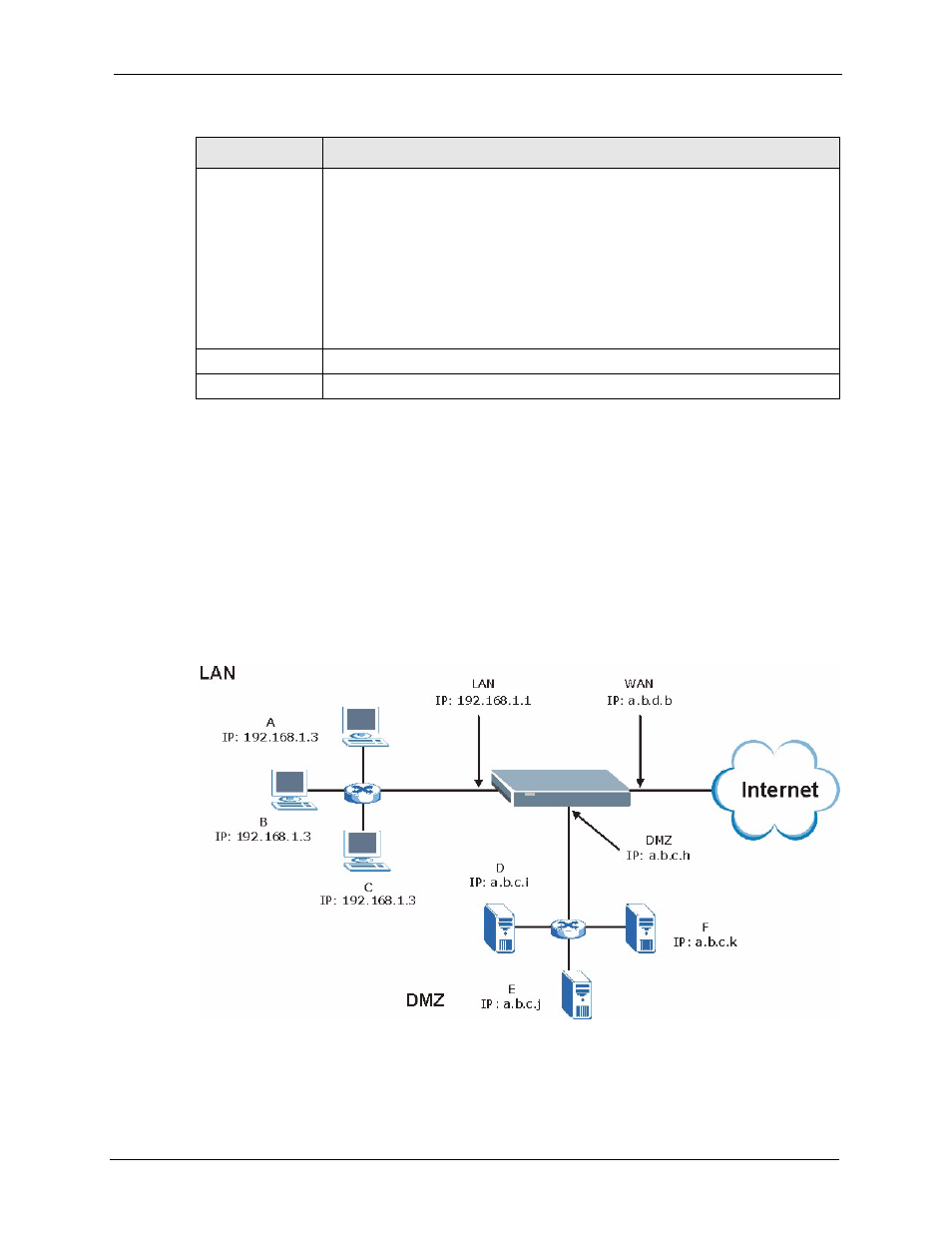

Figure 54 DMZ Public Address Example
RIP Version The RIP Version field controls the format and the broadcasting method of the RIP
packets that the ZyWALL sends (it recognizes both formats when receiving). RIP-1
is universally supported but RIP-2 carries more information. RIP-1 is probably
adequate for most networks, unless you have an unusual network topology. Both
RIP-2B and RIP-2M sends the routing data in RIP-2 format; the difference being
that RIP-2B uses subnet broadcasting while RIP-2M uses multicasting.
Multicasting can reduce the load on non-router machines since they generally do
not listen to the RIP multicast address and so will not receive the RIP packets.
However, if one router uses multicasting, then all routers on your network must
use multicasting, also. By default, RIP direction is set to Both and the Version set
to RIP-1.
Apply Click Apply to save your changes back to the ZyWALL.
Reset Click Reset to begin configuring this screen afresh.
Table 43 IP Alias (continued)
LABEL DESCRIPTION
