ZyWALL 5 User’s Guide
Chapter 24 Maintenance 379

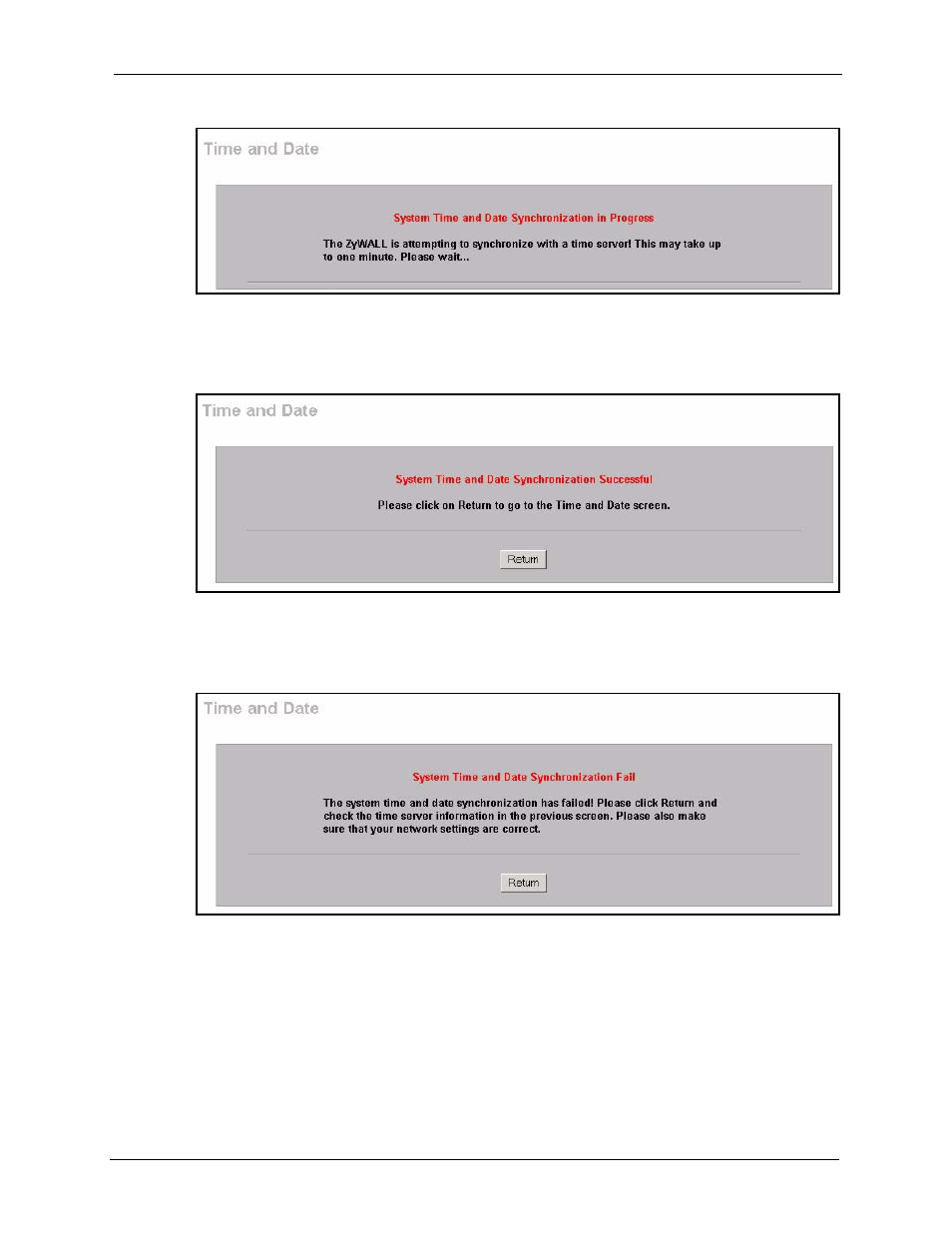

Figure 196 Synchronization in Process
Click the Return button to go back to the Time and Date screen after the time and date is
updated successfully.
Figure 197 Synchronization is Successful
If the update was not successful, the following screen appears. Click Return to go back to the
Time and Date screen.
Figure 198 Synchronization Fail
24.6 Introduction to Transparent Bridging
A transparent bridge is invisible to the operation of a network in that it does not modify the
frames it forwards. The bridge checks the source address of incoming frames on the port and
learns MAC addresses to associate with that port. All future communications to that MAC
address will only be sent on that port.
