Paxar 9474 User Manual
Page 20

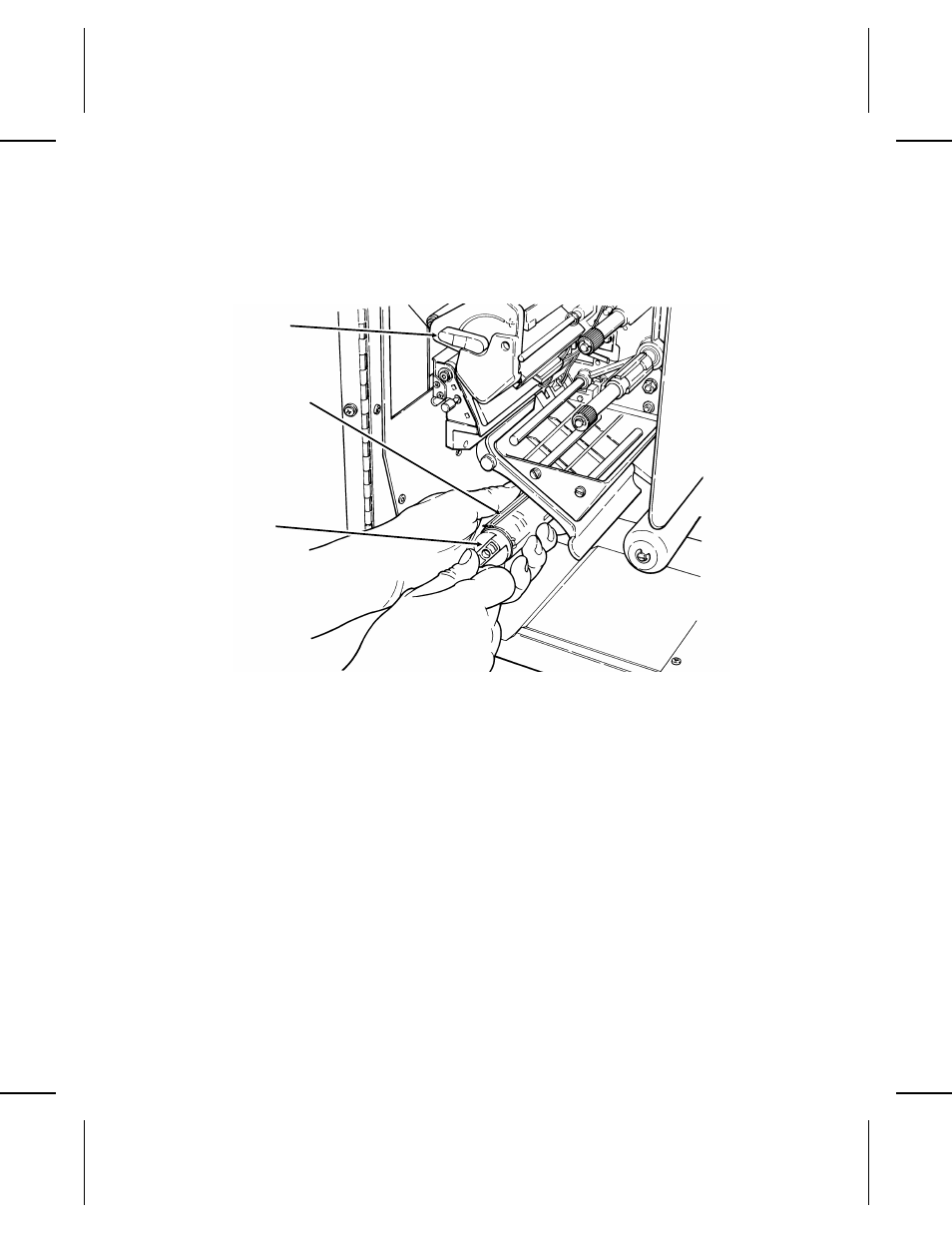

16. While holding the paper take-up spool with one hand, turn the
knob 1/4 turn counterclockwise with the other hand to open
the spool.
17. Turn the paper take-up spool counterclockwise until the clamp
is at the top.
18. Insert the backing paper under the clamp on the paper
take-up spool.
19. Turn the supply roll to remove slack in the backing paper.
20. Turn the printhead lever to the right to lock the printhead
against the supply.
Paper Take-up
Spool
Knob
Printhead
Lever
Loading Supplies 2-9
