18. If a ribbon is loaded, align the supply with the top edge of the
upper guide and slide it against the back wall. Move the
supply to the left until it aligns with the printhead. This
prevents snagging or wrinkling the ribbon.
If your printer is equipped with a Ribbon Roll
Adapter and you are going to use thermal
direct supplies (no ribbon), turn the thermal
supply indicator to the right.
19. Turn the printhead lever to the right to lock the printhead.
20. If your printer has a knife, loosen the locknut and use the
adjustment lever to set the cut to the width of the tag. Be
sure to tighten the locknut when you are finished.
21. Push the power switch on.
◆ If you are replacing a supply with a new roll of the same
size, press 1 to align the printer.
◆ If you are changing the supply type, adjust the supply
sensor if necessary. See "Adjusting the Supply Sensor"
later in this chapter.

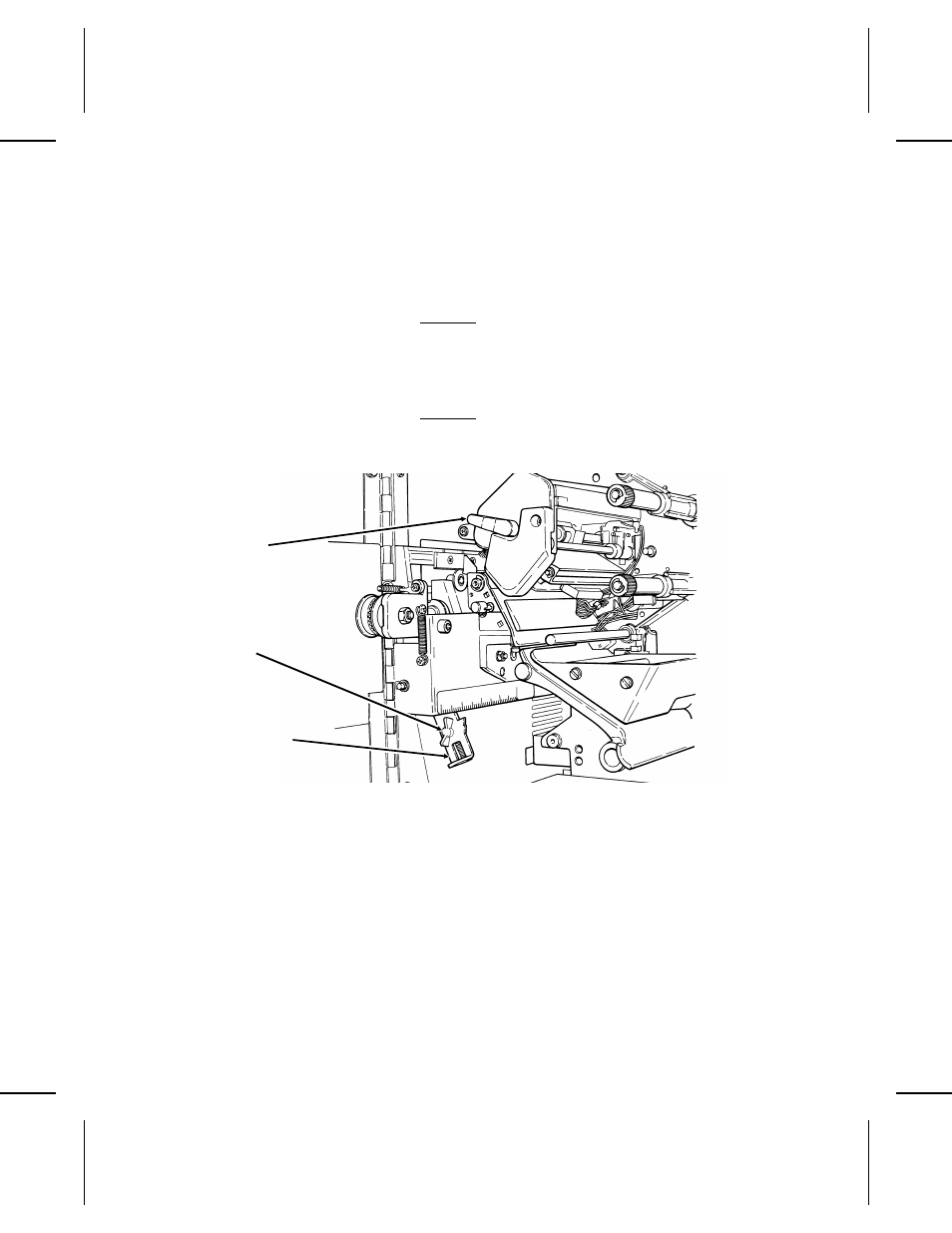

Printhead
Lever
Lock Nut
Adjustment
Lever
Loading Supplies 2-5
