System Overview
Internal And External Components
Chapter 1 17
Internal And External Components

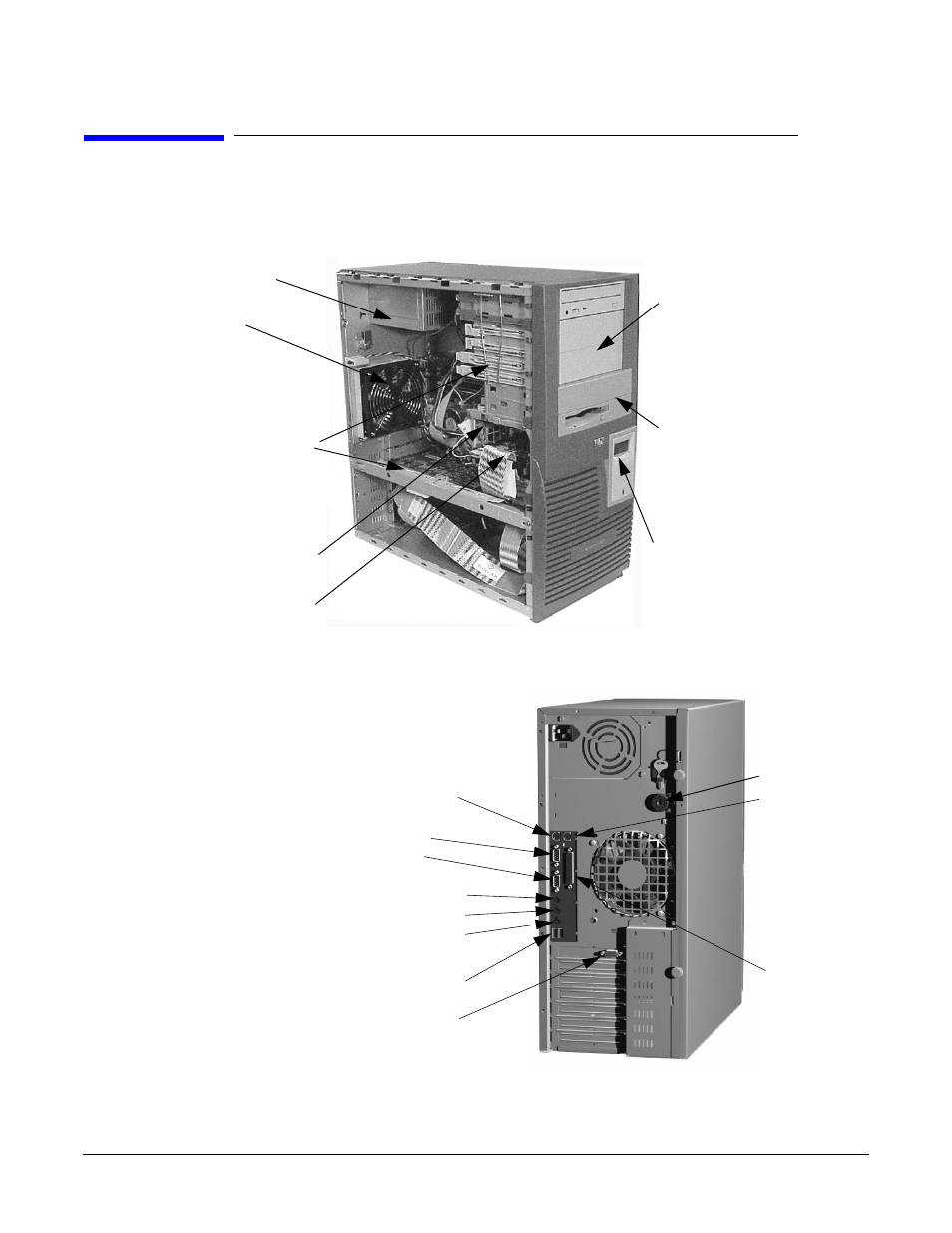

Figure 1-1 and Figure 1-2 show the front and rear views of the HP Workstation x2100.
Figure 1-1 Front and Side Views
Figure 1-2 Rear View
Front access
shelves:
- three 5 1/4-inch
drive shelves (can
be used for optical
drives or a 3
1/2-inch tray kit–
available as
accessory)
- two 3 1/2-inch
shelves, including
a 1.44MB floppy
disk drive
MaxiLife
Status Panel
Power Supply
Main Fan
Spare mounting rails:
- Wide green rails for
5.25-inch devices (for
example, Zip drive)
- Narrow green rails for
3.5-inch devices
- Blue rails for 3.5-inch
hard disk drives
Secondary Hard Disk
Drive Shelf
Primary Hard Disk
Drive Shelf
Parallel port
Serial port A
Keyboard
connector
Dual USB connectors
Serial port B
Line Out (headphone) connector
Line In connector
Microphone connector
Mouse
connector
Display connector
HP Master Key
Lock
