Lcd panel, Table, Figure52 s-video connector – HP A7818-IE002 User Manual
Page 112: Figure53 ethernet utp connector
Hardware Components
Connectors And Sockets
Chapter 5
112

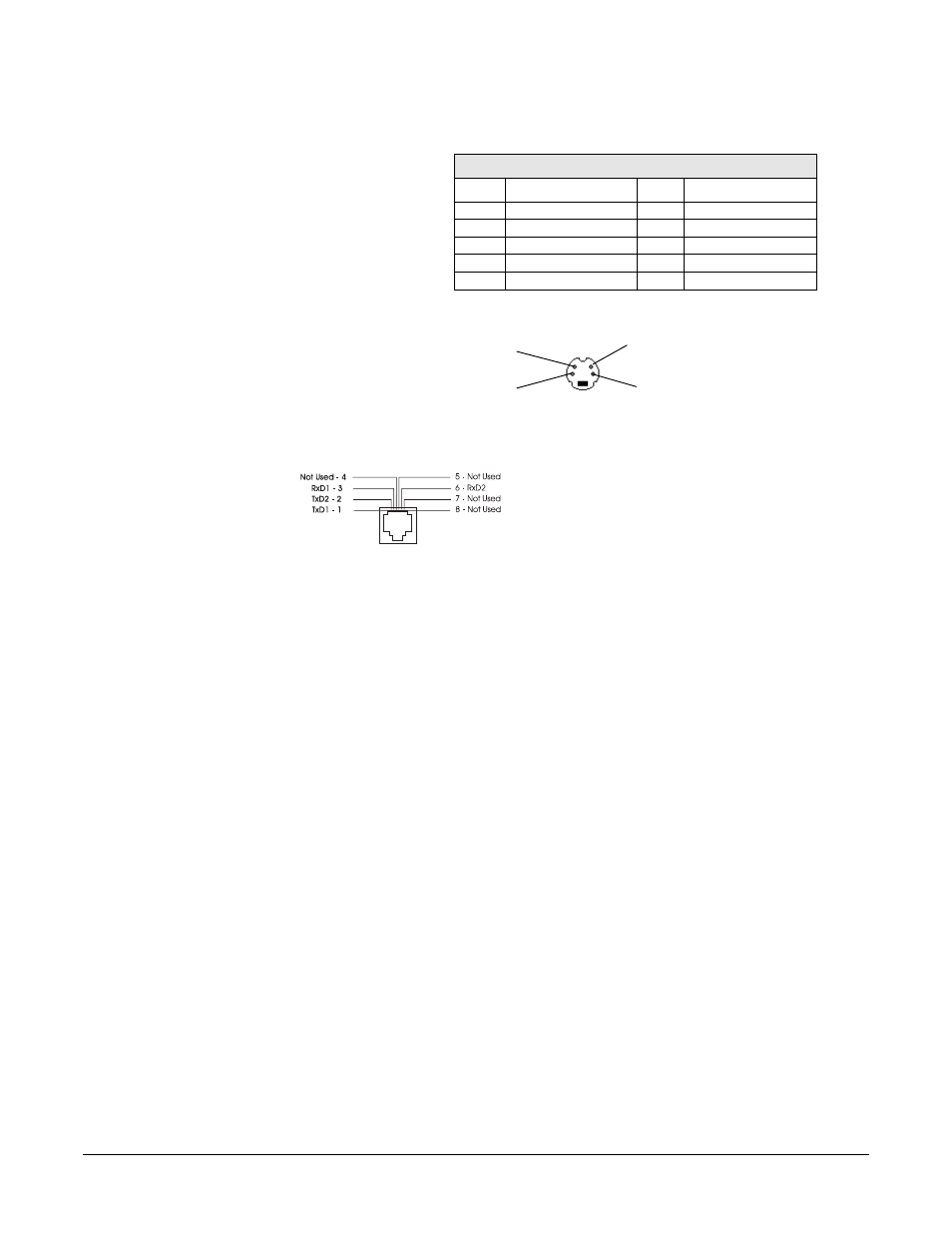

LCD Panel
Figure 5-2
S-Video Connector
Figure 5-3
Ethernet UTP Connector
LCD Panel
Pin
Signal
Pin
Signal
1
SCL_5V
2
VSTDBY 5V
3
SDA_5V
4
BT_LCD 1
5
not connected
6
BT_LCD 2
7
RX_BB
8
TX_BB
9
Ground
10
Ground
Y – Intensity
(Luminance)
GND – Ground (Y)
GND – Ground (C)
C – Color
(Chrominance)
