Hardware Components
Rear Panel Connectors
Chapter 5
113
Rear Panel Connectors

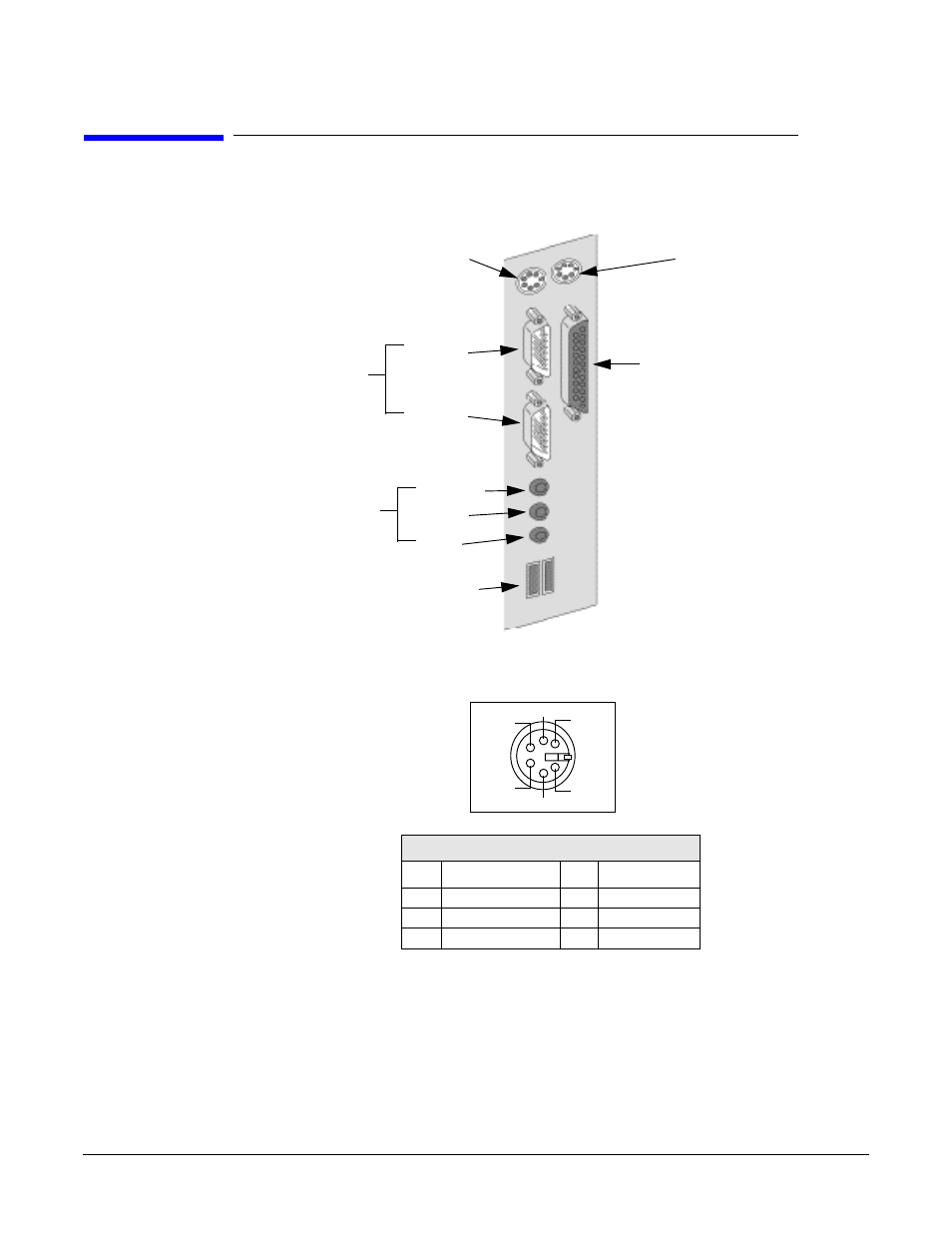

Figure 5-4
Rear Panel Socket Pin Layouts
Keyboard And Mouse Connectors
25-pin Parallel
Port Connector
Keyboard Connector
Audio jacks
USB Connectors (two)
Mouse Connector
Line Out
Line In
Serial
Port A
Serial
Port B
MIC
9-pin Serial Port
Connectors
Keyboard and Mouse Connectors
Pin
Signal
Pin
Signal
1
Data
2
Not Used
3
Ground
4
+5V dc
5
Clock
6
Not Used
6
4
2
1
3
5
