Hardware Components
Rear Panel Connectors
Chapter 5 115

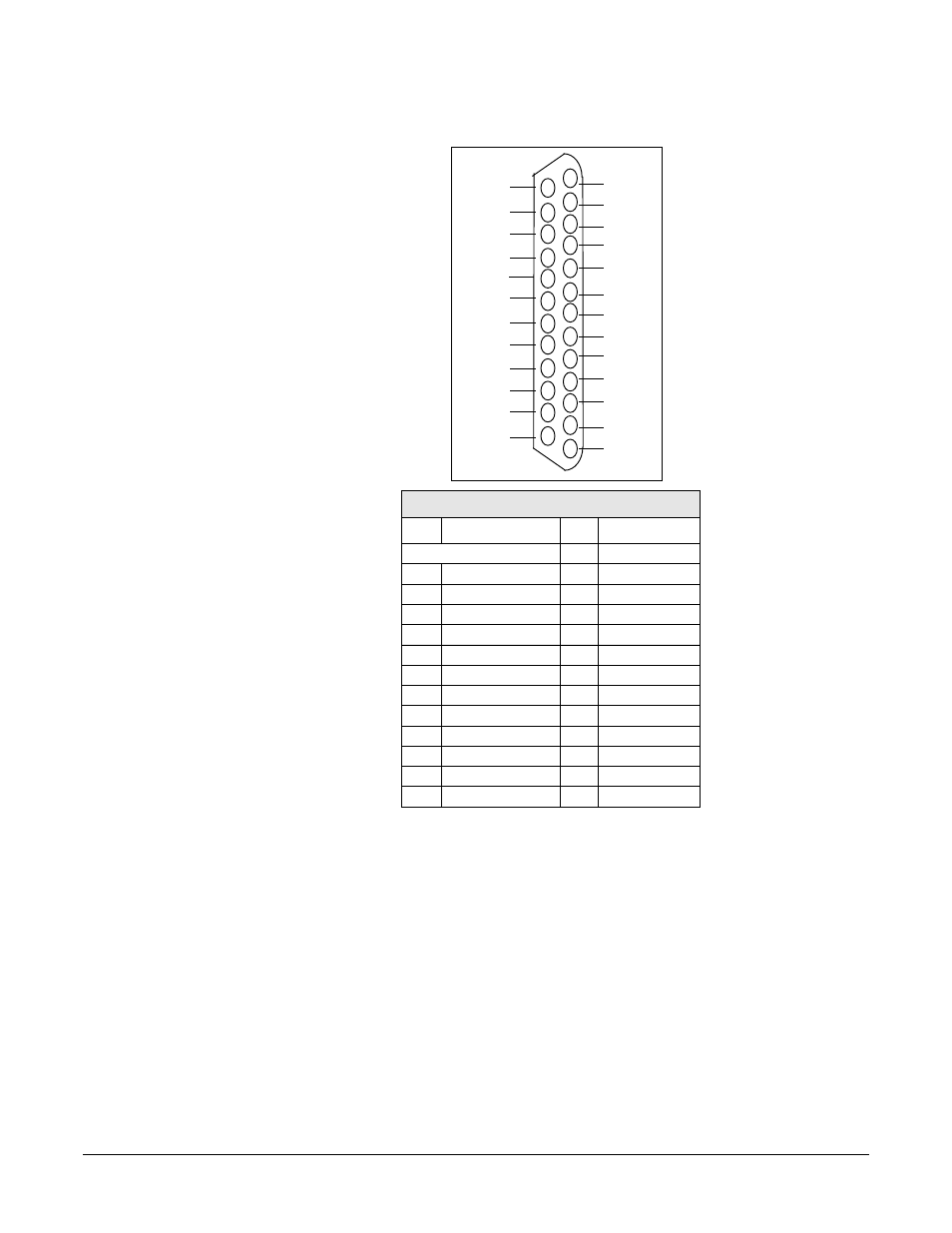

25-pin Parallel Connector
25-pin Parallel Connector
Pin Signal Pin Signal
13 SLCT
25 Ground 12 PE
24 Ground 11 BUSY
23 Ground 10 ACK
22 Ground 9 D7
21 Ground 8 D6
20 Ground 7 D5
19 Ground 6 D4
18 Ground 5 D3
17 SLIN 4 D2
16 INIT 3 D1
15 ERROR 2 DO
14 AUTO-FD 1 Strobe
13
12
11
10
9
8
7
6
5
4
3
1
2
25
24
23
22
21
20
19
18
17
16
15
14
