Chapter 5 Basic Operations — KEY
f Set the start position of the key on when SQ or SL is selected in Step 2 .
4
Set [X‑Pos] and [Y‑Pos] in the [Out Position] column.
f Set the end position of the key off when SQ or SL is selected in Step 2 .
Setting the priority

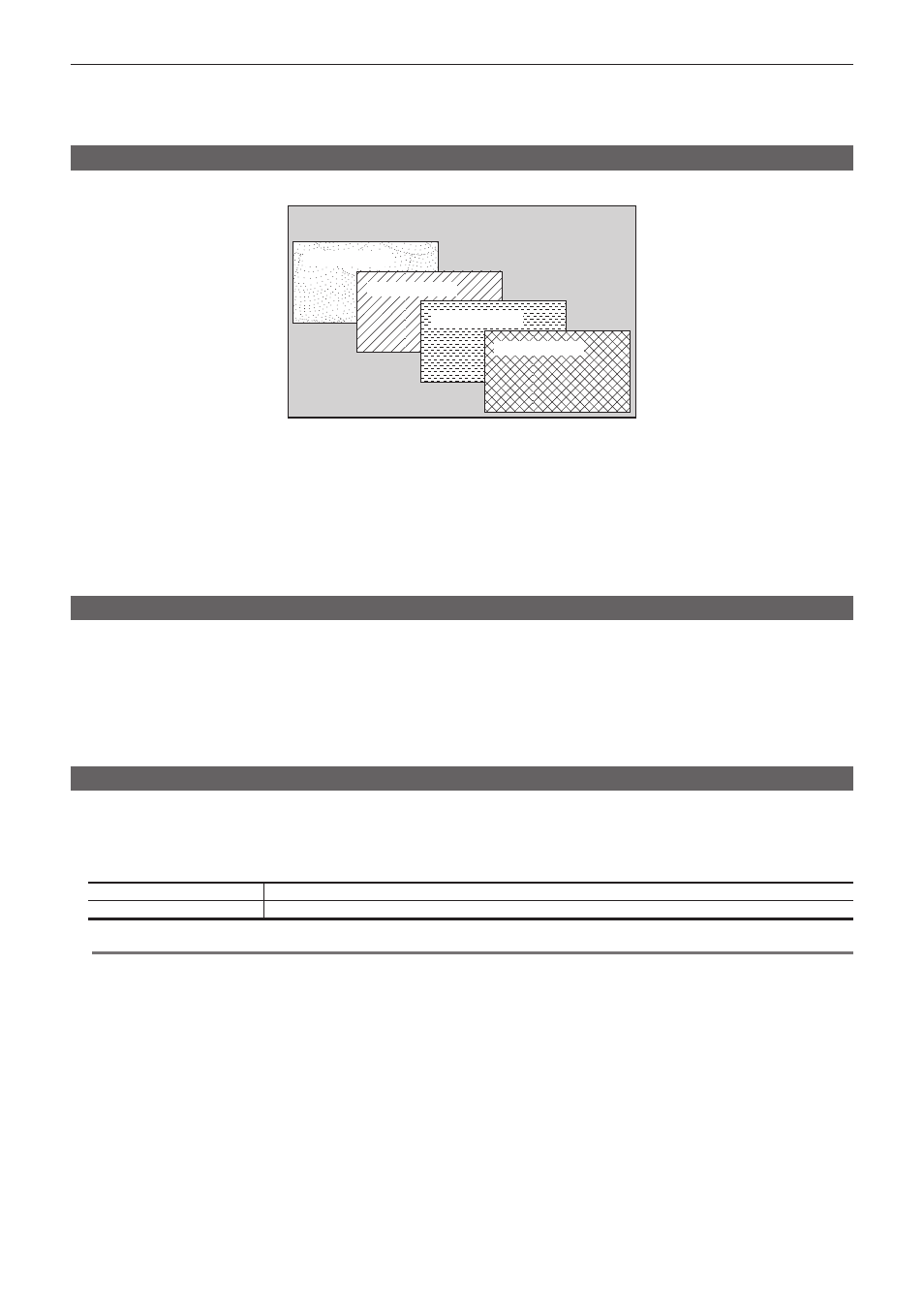

Set the priority (image positioning). The default setting is as shown in the following figure.
Background image
[Key4]: [1st]
[Key3]: [2nd]
[Key2]: [3rd]
[Key1]: [4th]
1
Select the / button → [MISC] → [Misc] tab.
2
Select an item in [Key1] to [Key4] in the [Key Priority] column.
f Select the priority for any key from [1st] to [4th].
f Changing the setting of one item will change the settings of other items accordingly. In the default setting, if [Key1] is changed from [4th] to [1st],
then the settings of [Key2] to [Key4] also change as follows.
- [Key2]: [3rd]
→ [4th]
- [Key3]: [2nd] → [3rd]
- [Key4]: [1st] → [2nd]
Setting [Key On Link]
Combine [Key1] to [Key4] in the same ME to start transitions simultaneously.
1
Select the / button → [MISC] → [Misc] tab.
2
Select an item in [Key1] to [Key4] in the [Key On Link] column.
f Select [Off] or [On] for any key.
Example) When [Key1] and [Key3] are set to [On], and [Key2] and [Key4] are set to [Off]
Pressing the button starts transitions of [Key1] and [Key3] at the same time.
On/off of the key by the menu operation
Each key can be turned on/off with the cut transition by the menu operation.
1
Select the / button → [MISC] → [Misc] tab.
2
Select an item in [Key1] to [Key4] in the [KEY ON] column.
[Off] Turns off the key.
[On] Turns on the key.
@ @ NOTE
t The button operation (toggle operation) is recorded instead of recording the on/off status of the key when the macro for operation by the
to buttons is recorded. The on/off status of the key is recorded when the on/off of the key is recorded to macro with the above menu
operation.
