Chapter 11 Specifications — Dimensions

Dimensions

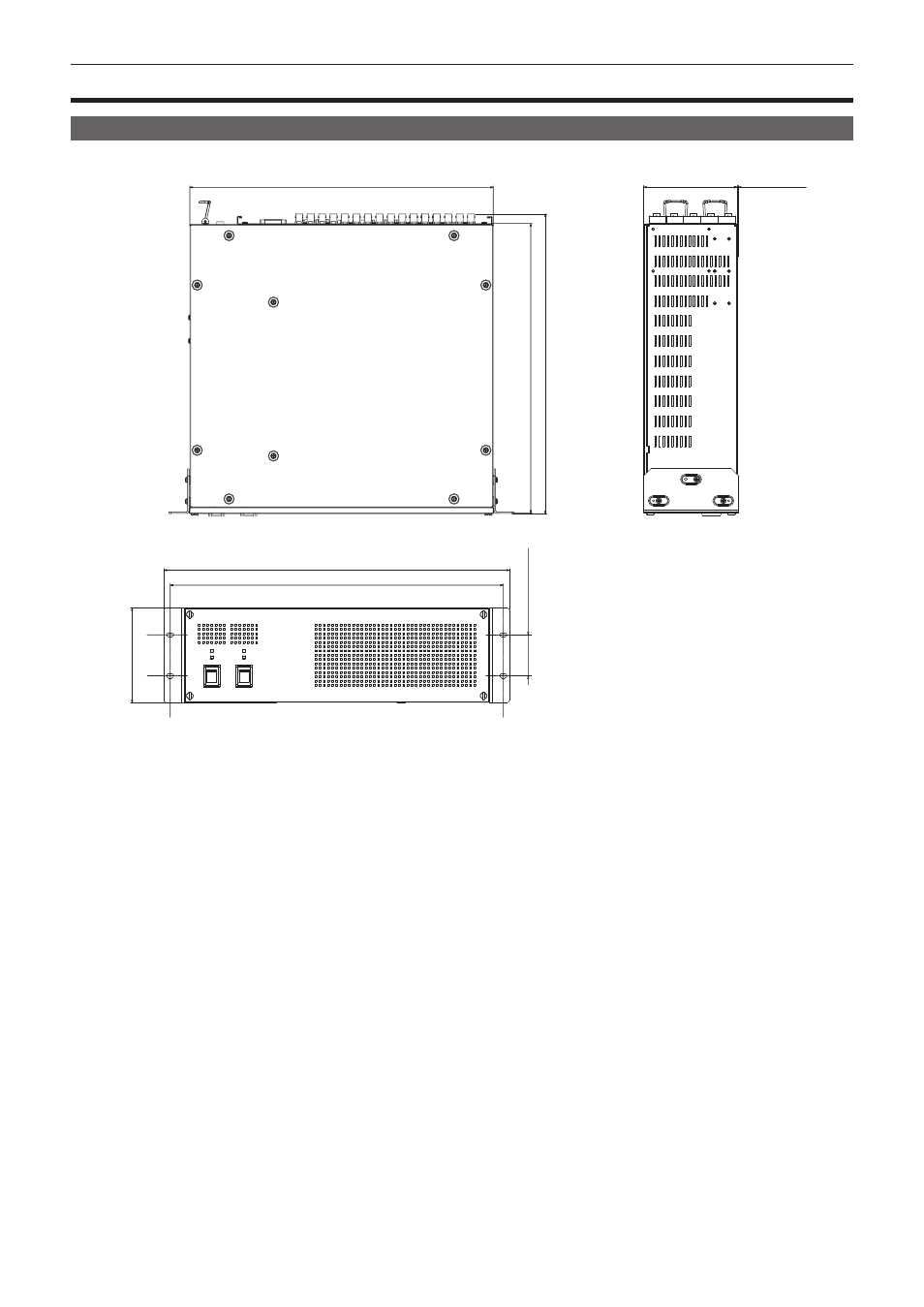

Dimensions of the Main Frame AV‑HS60U1/AV‑HS60U2

Unit: mm (inch)

(130 (5-1/8))

2 (3/32)

423.4 (16-21/32)

418 (16-15/32)

404.5 (15-15/16)

482 (18-31/32)

465 (18-5/16)

132 (5-3/16)

57.2 (2-1/4)
