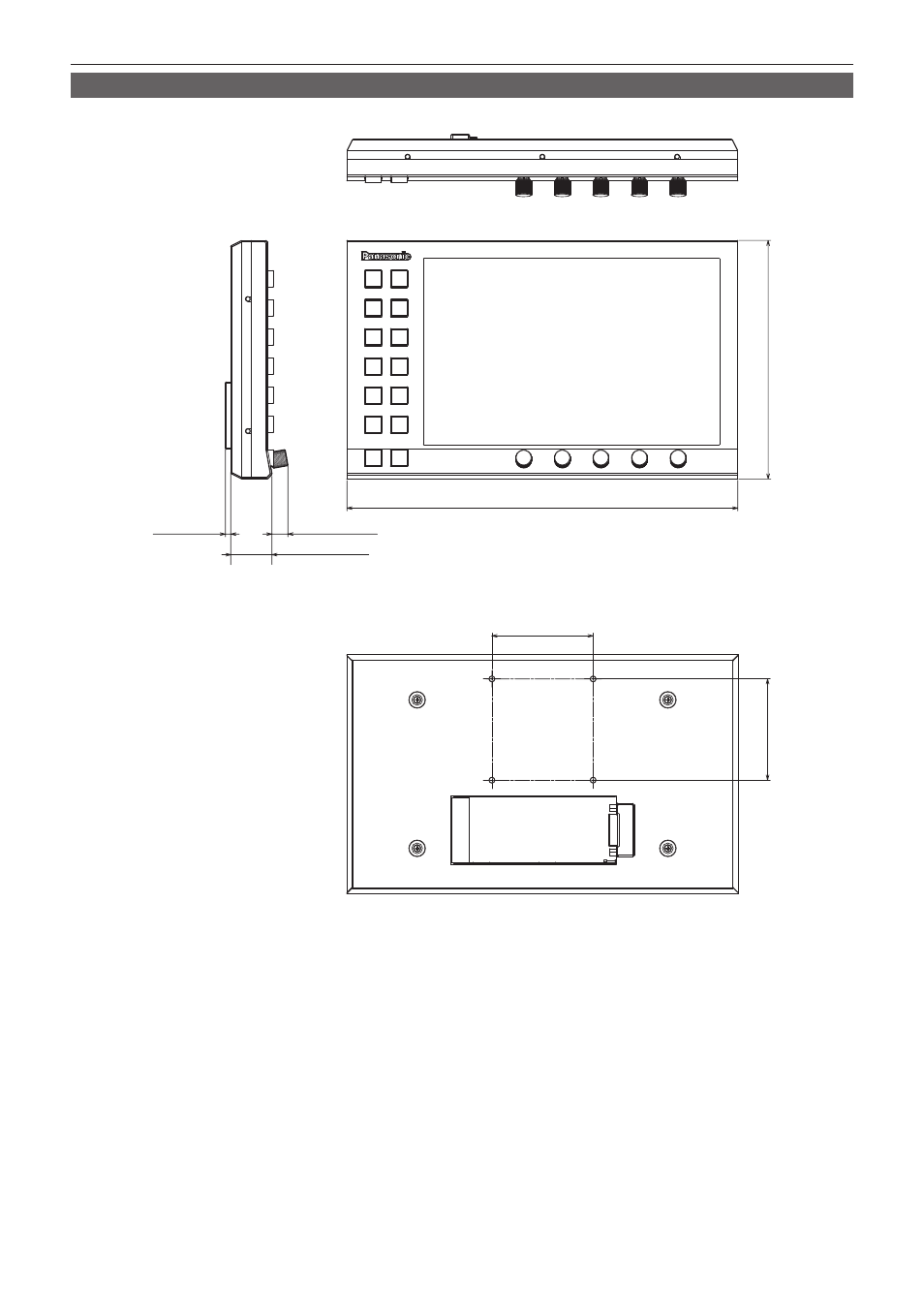

Dimensions of the Menu Panel AV‑HS60C3

Unit: mm (inch)

177 (6-31/32)

4 (5/32)

30.3 (1-3/16)

11.8 (15/32)

290 (11-13/32)

75 (2-15/16)

75 (2-15/16)
