– 143 –

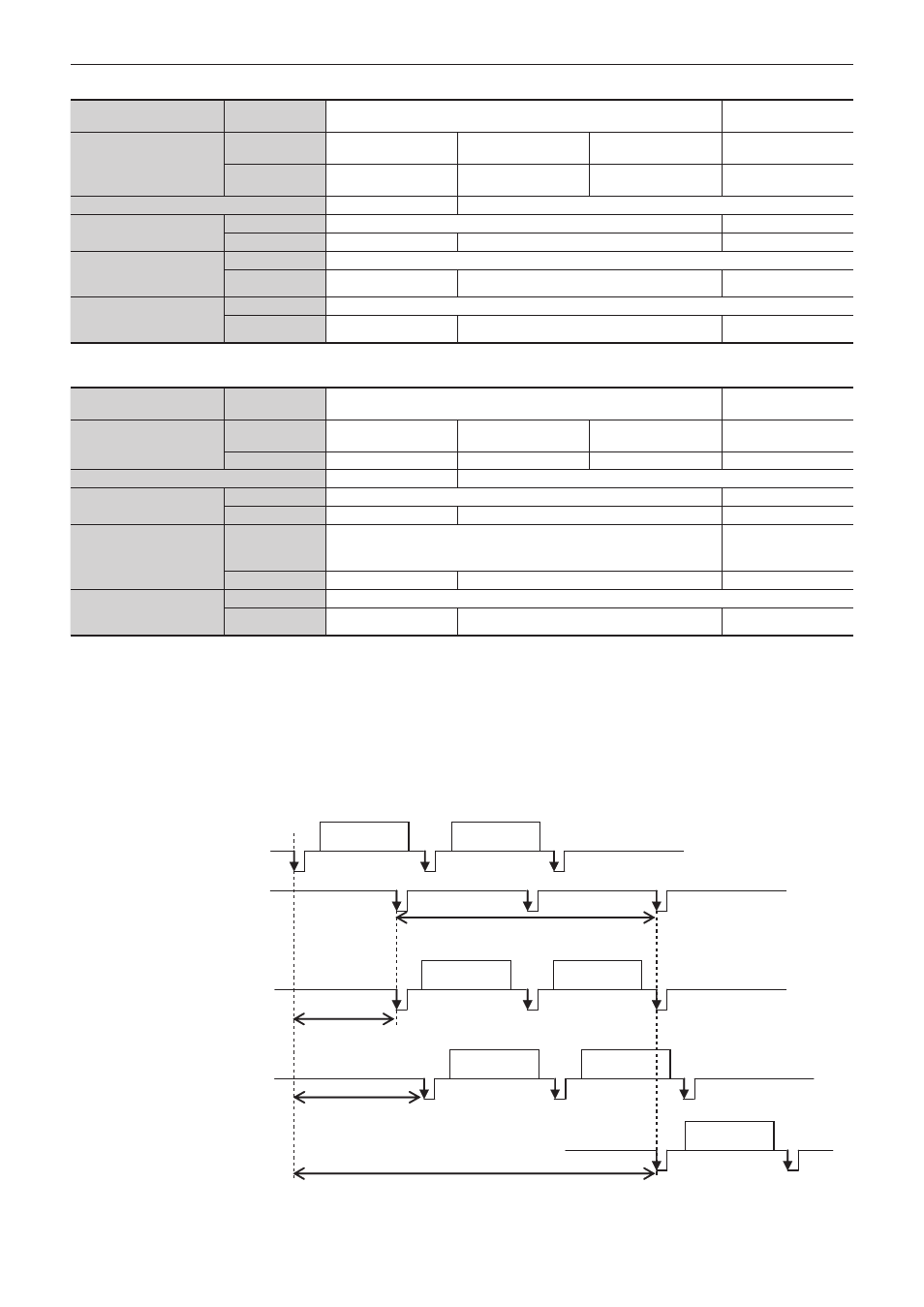

Chapter 8 System Menu — System settings
r When the sync signal (Reference) is set to [BB], [Tri‑level sync], or [Internal]
[Output Phase] [System] [1H]
[0H]
Example 1)
Input signal
[Mode] [Normal] [Normal] [U/C]/[Dot by Dot]
[Normal]/[U/C]/[Dot by
Dot]
[FS] Off [Strict] or [Acceptable]
[Strict] (forced) or
[Acceptable]
[Strict] (forced) or
[Acceptable]
Non-synchronized input Not possible Possible
Output signal 1
Phase Reference + 1H In-phase with Reference
Delay amount 1H Max. of 1F + 1H Max. of 1F
Output signal 2
Down-converter
[90H] ([75H])
Phase Output Signal 1 + 90H
Delay amount 1H + 90H Max. of 1F + 1H + 90H Max. of 1F + 90H
Output signal 2
Down-converter
[1F]
Phase In-phase with Output signal 1
Delay amount 1H + 1F Max. of 2F + 1H Max. of 2F
r When the sync signal (Reference) is set to [BB Advanced]
[Output Phase] [System] [1H]
[0H]
Example 2)
Input signal
[Mode] [Normal] [Normal] [U/C]/[Dot by Dot]
[Normal]/[U/C]/[Dot by
Dot]
[FS] Off On On (forced) On (forced)
Non-synchronized input Not possible Possible
Output signal 1
Phase Reference − 90H + 1H Reference − 90H
Delay amount 1H Max. of 1F − 90H + 1H Max. of 1F − 90H
Output signal 2
Down-converter
[90H] ([75H])
Phase Output signal + 90H
Output Signal 1 +
90H (in-phase with
Reference)
Delay amount 1H + 90H Max. of 1F + 1H Max. of 1F
Output signal 2
Down-converter
[1F]
Phase In-phase with Output Signal 1
Delay amount 1F + 1H Max. of 2F − 90H + 1H Max. of 2F − 90H
f For 1080/50i and 720/50p, 90H in the output signal field becomes 75H.
f 1H is the conversion in the HD format. It is equivalent to 2 lines in the 1080/59.94p or 1080/50p format.
f 1F is the conversion in the HD format. It is equivalent to 2 frames in the 1080/59.94p or 1080/50p format.
f When DVE or PinP is used as the video effect, the output signal is delayed by + 1F.
f Since a DVI input signal always has the frame synchronizer function running, the phase and amount of delay is the same during [Dot by Dot] mode /
[U/C] selection.
f When video is output to the MultiView display, the output video is delayed by + 1F.
r Phase relationship between input and output signals (for 1080/59.94i)
Example 1)
F1 F2
F1 F2
F1
F1 F2
1F (frame)
Max. of 1F
Max. of 1F + 90H
Max. of 2F
Input signal (Non-synchronized)
Sync signal (Reference)
Output signal 1
Output signal 2 (90H)
Output signal 2 (1F)
