Chapter 10 External Interfaces — GPI input/output settings and alarm output
GPI input/output settings and alarm output
The unit has 18 GPI input ports in the
Panel AV-HS60C1/AV-HS60C2/AV-HS60C4.
It also has 48 GPI output ports in the
of the Control Panel AV-HS60C1/AV-HS60C2/AV-HS60C4.
Assign functions to the ports through the
→
[PERIPHERAL]
→
[GPI IN]/[GPI OUT] tab.
For details, refer to “System Menu” (page 140).
Also, alarm signals can be output externally from specific pins of the
(Control Panel AV-HS60C1/AV-HS60C2/AV-HS60C4).
r
Connection examples

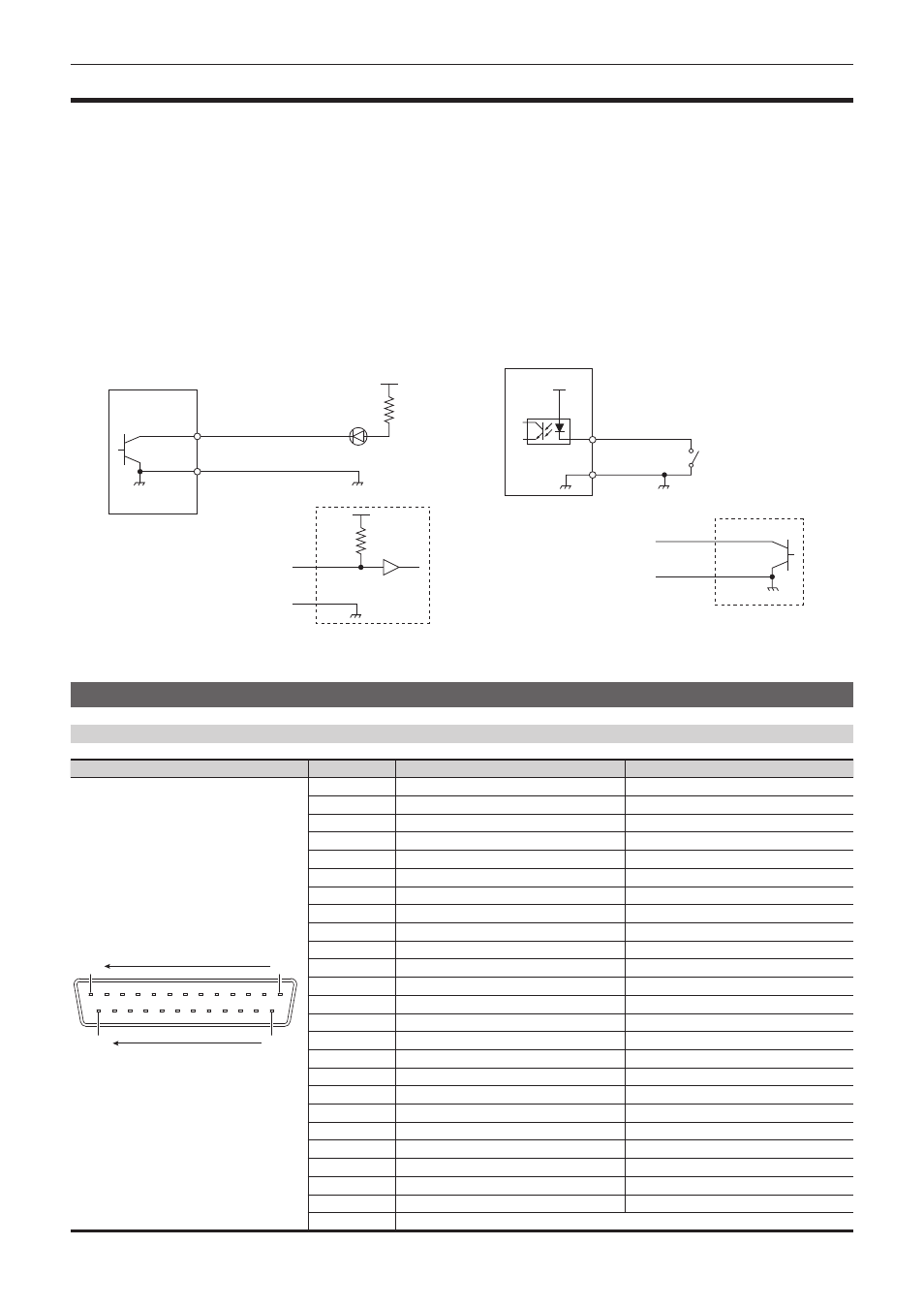

GPI OUT, alarm connection examples (Fig. 1): Make sure that the following conditions are satisfied.
Dielectric strength: Max. DC 24 V
Current: Max. 50 mA
GPI IN connection example (Fig. 2): Provide contact inputs.
Open collector output
Fig. 1
Fig. 2
Open collector output
GND
Logic
GND
+3.3 V
(Max. voltage: 24 V)
Tally, alarm LED
AV-HS6000
AV-HS6000
GPI input/output ports of the Main Frame AV‑HS60U1/AV‑HS60U2
Pin assignments and signal names of the
Outside view
Pin No.
Signal Name (
Signal Name (
1
14
25
13
1
GPI OUT-1
GPI OUT-25
2
GPI OUT-2
GPI OUT-26
3
GPI OUT-3
GPI OUT-27
4
GPI OUT-4
GPI OUT-28
5
GPI OUT-5
GPI OUT-29
6
GPI OUT-6
GPI OUT-30
7
GPI OUT-7
GPI OUT-31
8
GPI OUT-8
GPI OUT-32
9
GPI OUT-9
GPI OUT-33
10
GPI OUT-10
GPI OUT-34
11
GPI OUT-11
GPI OUT-35
12
GPI OUT-12
GPI OUT-36
13
GPI OUT-13
GPI OUT-37
14
GPI OUT-14
GPI OUT-38
15
GPI OUT-15
GPI OUT-39
16
GPI OUT-16
GPI OUT-40
17
GPI OUT-17
GPI OUT-41
18
GPI OUT-18
GPI OUT-42
19
GPI OUT-19
GPI OUT-43
20
GPI OUT-20
GPI OUT-44
21
GPI OUT-21
GPI OUT-45
22
GPI OUT-22
GPI OUT-46
23
GPI OUT-23
GPI OUT-47
24
GPI OUT-24
GPI OUT-48
25
COM (GND)
