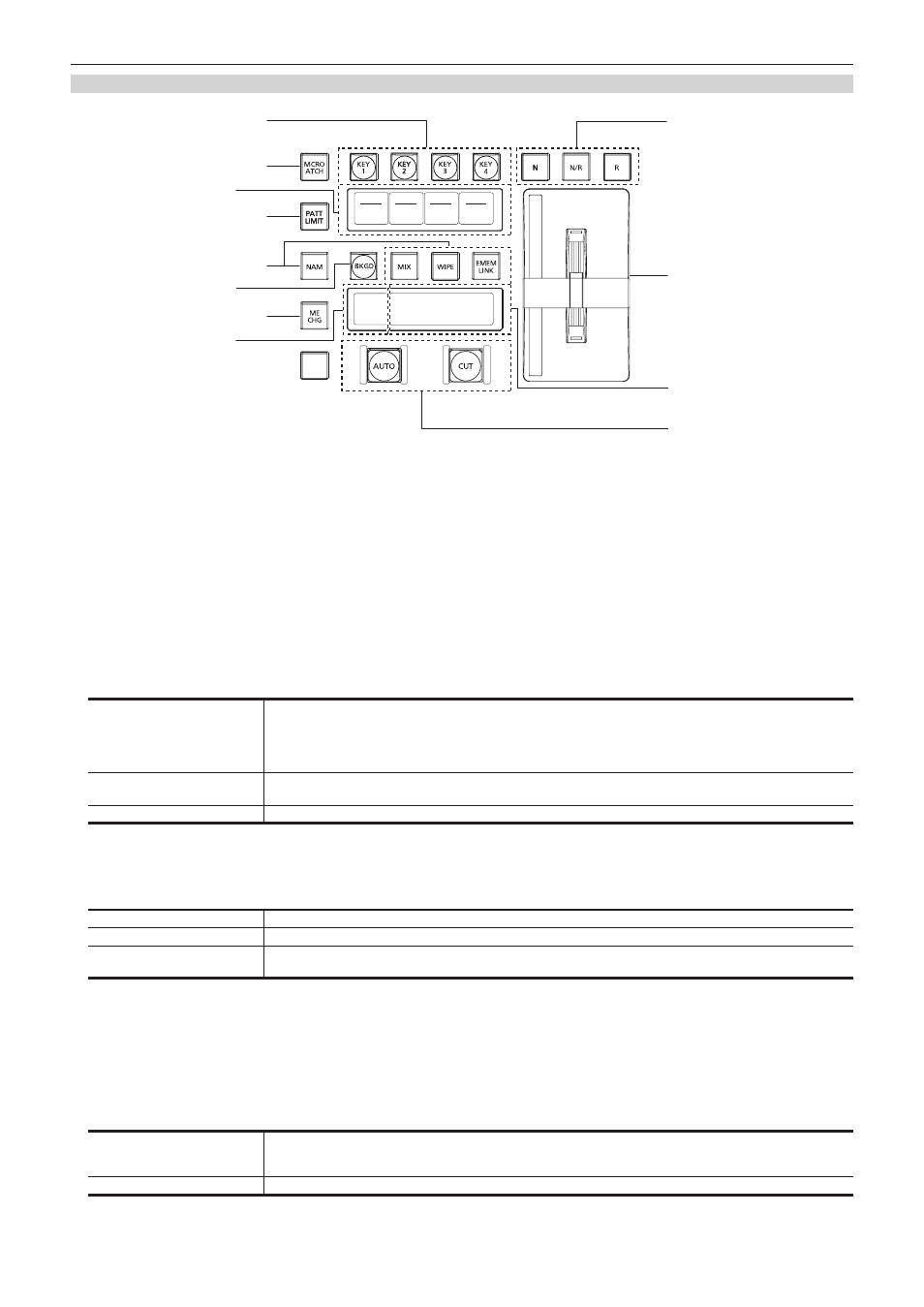

Chapter 3 Part Names and Functions — Control Panel AV‑HS60C1/AV‑HS60C2/AV‑HS60C4
Transition area
CHR LIN LUM FULL
MIX
02s01f
MIX
01s00f
MIX
01s00f
WIPE
01s00f
MIX
ME1
01s00f
2
1
4
8
5
6
3
1
7
10
9
3
1 Transition target selection buttons (////)
Sets the operation target for the next transition to be executed when the fader lever or / button is operated.
2 button
Switches between enabling/disabling macro attach functions assigned to the button of the corresponding ME.
f When set to on, the macro attach function is enabled.
f The button to which the macro attach function is assigned is illuminated in a specific color while it is on. The light color setting can be made from
the button on the top menu → [CTRL PANEL] → [Button Color] tab → [Macro Attach] in the [No Sel Other] column.
3 Status display
Displays the key type (KEY only)/transition type/transition time.
4 button
Restricts the amount of the background wipe transition for the corresponding ME.
f When set to on, the pattern limit function is enabled.
f Set pattern limit details from the / button on the top menu → [BKGD] → [Position] tab → [Pattern Limit] column. (page 56)
5 Transition type selection buttons (///)
button
Switches images while overlapping. During the transition, the output total of the A bus and B bus is kept at 100%.
In background transition, the above operation is applied when the button is off.
It will perform non-additive mixing or color mix mixing depending on the setting of the top menu / button
→ [BKGD] → [Transition] tab → [Trans Type] column when the button is on. For details, refer to “ button
setting” (page 54).
button
Performs transition according to the patterns set in the menu or selected at the wipe preset on the multi-selection panel
area.
button Performs transition according to the patterns registered in the event memory. (page 92)
6 button
Switches the display of the multi-selection panel area to the menu for changing ME which is the operation target. (page 137)
7 Wipe direction selection buttons
Selects the wipe direction when executing the background transition. The operation is not performed when the transition is a key.
button Wiping proceeds in the normal direction.
button Wiping proceeds in the reverse direction.
button
The normal direction is replaced with the reverse direction (or vice versa) when the transition is completed.
f On/off of the / button is also switched according to the wipe direction.
8 Fader lever/transition status
Used to execute background or key transitions. When the lever is moved as far as it will go, the transition is completed. If the fader lever has been
operated during auto transition, auto transition will be switched to manual operation as soon as the fader lever position overtakes the amount of the
transition being executed.
For details on the transition status display, refer to “Transition status display” (page 26).
9 ME status area
Displays the ME of the operations target. Use the button to switch the ME of the operation target.
10 transition execution button
button
Automatically executes transition. (Auto transition)
f To set the transition time, select the / button on the top menu → [BKGD] → [Transition] tab →
[Transition] column → [Time]. (page 54)
button Executes transition instantly.
