– 171 –

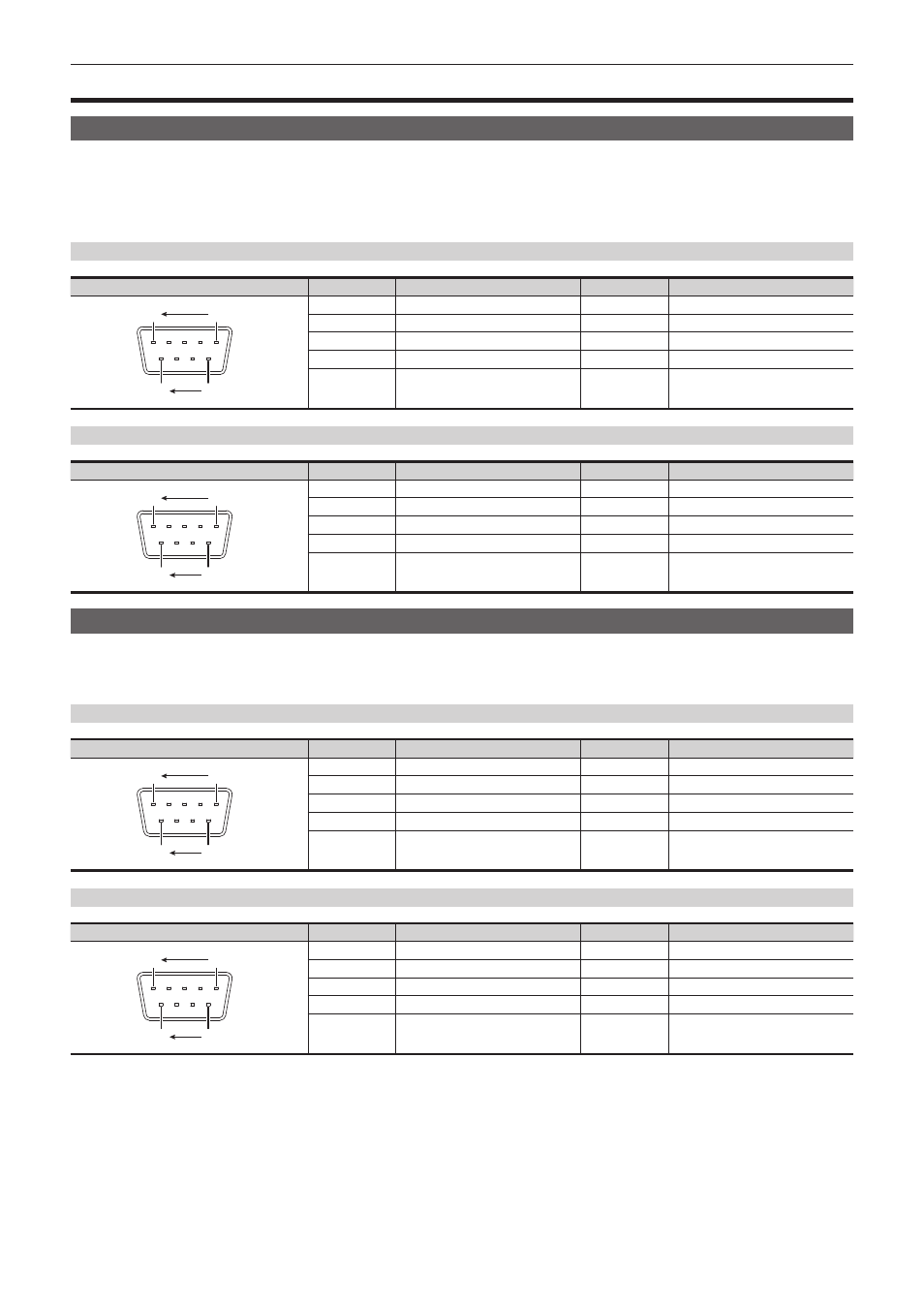

Chapter 10 External Interfaces — Serial ports
Serial ports
Serial ports of the Main Frame AV‑HS60U1/AV‑HS60U2
There are 4 serial ports (RS-422) in Main Frame AV-HS60U1/AV-HS60U2.
The , , and terminals are exclusively for master connection. The terminal can switch between
the master connection and the slave connection through the button on the top menu
→ [PERIPHERAL] → [General] tab → [MF COM4] column
→ [Master/Slave]. (page 153)
f It supports plug-in software.
Pin assignments and signal names of the // terminal
Outside view Pin No. Signal name Pin No. Signal name
1
6 9
5
1 FG 6 SG
2 RX − 7 RX +
3 TX + 8 TX −
4 SG 9 FG
5 NC
Pin assignments and signal names of the terminal
Outside view Pin No. Signal name Pin No. Signal name
1
6 9
5
1 FG 6 SG
2 RX − /TX − 7 RX + /TX +
3 TX + /RX + 8 TX − /RX −
4 SG 9 FG
5 NC
Serial ports of the Control Panel AV‑HS60C1/AV‑HS60C2/AV‑HS60C4
There are 2 serial ports (RS-422 and RS-232) in Control Panel AV-HS60C1/AV-HS60C2/AV-HS60C4.
f It supports plug-in software.
f Cannot be used on the sub control panel.
Pin assignments and signal names of the terminal
Outside view Pin No. Signal name Pin No. Signal name
1
6 9
5
1 FG 6 SG
2 RX − 7 RX +
3 TX + 8 TX −
4 SG 9 FG
5 NC
Pin assignments and signal names of the terminal
Outside view Pin No. Signal name Pin No. Signal name
5
9 6
1
1 NC 6 DSR
2 RXD 7 RTS
3 TXD 8 CTX
4 DTR 9 NC
5 GND
