Electrical Installation 2 - 16

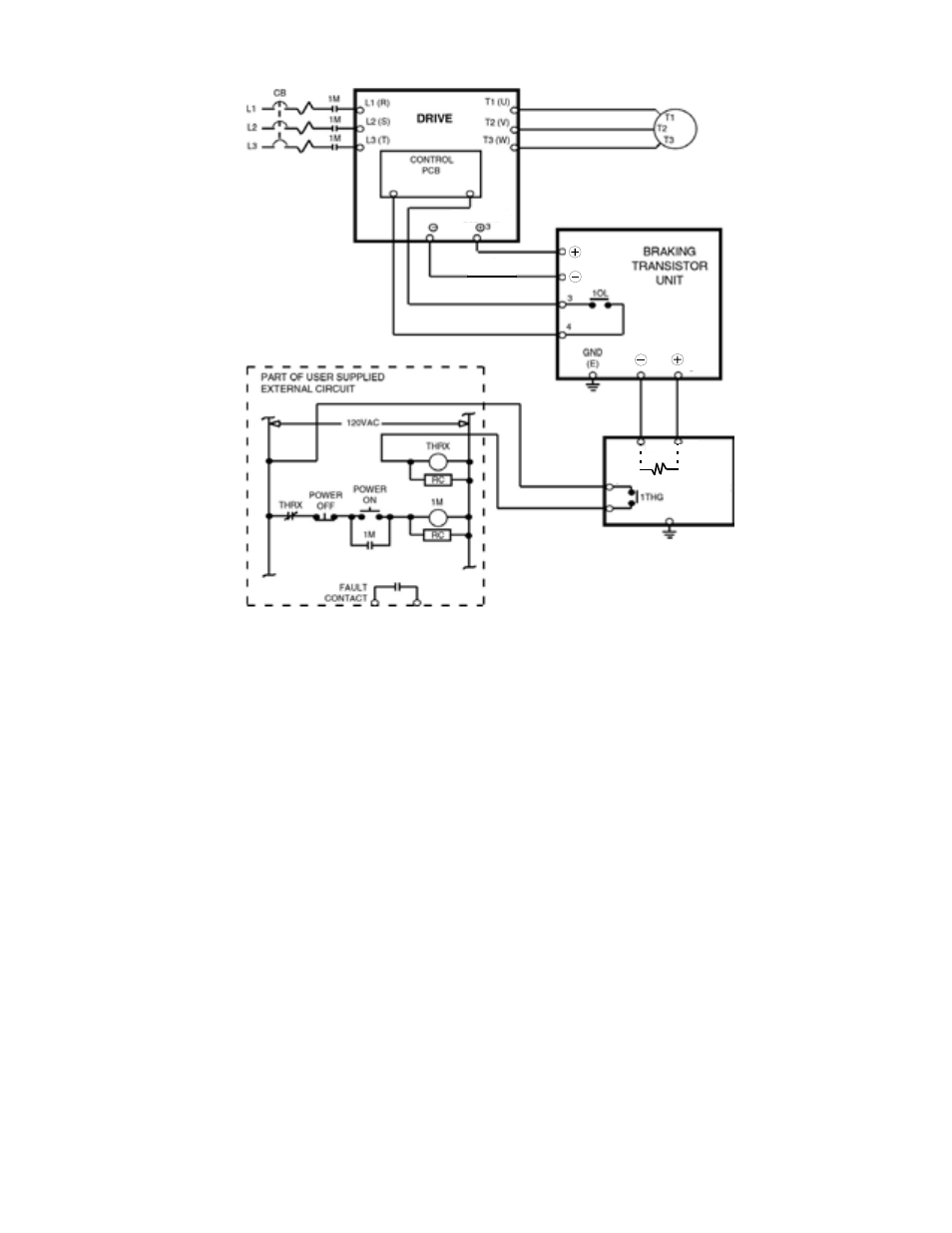

Fig 2.7 Wiring Single Braking Transistor Unit and Remote Mount Resistor Unit to Drive
(F7U2022 thru F7U2110 and F7U4022 thru F7U4300)
IM
S3 SN ‡
0 0
REMOTE
MOUNT
RESISTOR
UNIT
R2 R1
‡ Applies when SC is jumpered to
SP and S3 is programmed as
External Fault.
